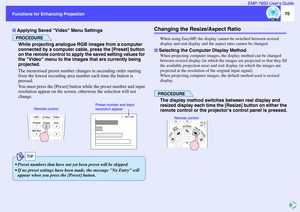

70
Functions for Enhancing Projection Functions for Enhancing ProjectionEMP-7850 User’s Guide
PROCEDUREWhile projecting analogue RGB images from a computer
connected by a computer cable, press the [Preset] button
on the remote control to apply the saved setting values for
the Video menu to the images that are currently being
projected.
The memorised preset number changes in ascending order starting
from the lowest recording area number each time the button is
pressed.
You must press the [Preset]...

71

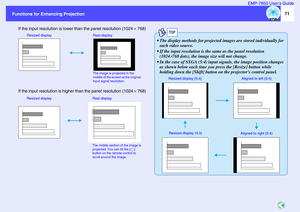

Functions for Enhancing Projection Functions for Enhancing ProjectionEMP-7850 User’s Guide
If the input resolution is lower than the panel resolution (1024 × 768)If the input resolution is higher than the panel resolution (1024
× 768)
Resized display Real display
The image is projected in the
middle of the screen at the original
input signal resolution.
Resized display Real display
The middle section of the image is
projected. You can tilt the [ ]
button on the remote control to
scroll around...

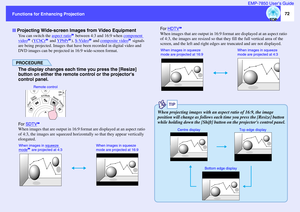

72
Functions for Enhancing Projection Functions for Enhancing ProjectionEMP-7850 User’s Guide
You can switch the aspect ratio
 between 4:3 and 16:9 when component
video
 (YCbCr
 and YPbPr
), S-Video
 and composite video
 signals
are being projected. Images that have been recorded in digital video and
DVD images can be projected in 16:9 wide-screen format.
PROCEDUREThe display changes each time you press the [Resize]
button on either the remote control or the projectors
control panel.For SDTVWhen...

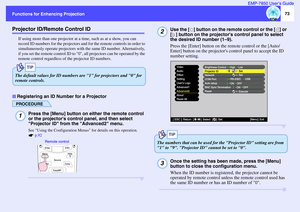

73
Functions for Enhancing Projection Functions for Enhancing ProjectionEMP-7850 User’s Guide
Projector ID/Remote Control ID
If using more than one projector at a time, such as at a show, you can
record ID numbers for the projectors and for the remote controls in order to
simultaneously operate projectors with the same ID number. Alternatively,
if you set the remote control ID to 0, all projectors can be operated by the
remote control regardless of the projector ID numbers.PROCEDURE
Press the [Menu]...

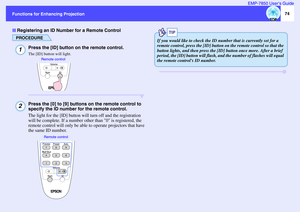

74
Functions for Enhancing Projection Functions for Enhancing ProjectionEMP-7850 User’s Guide
PROCEDURE
Press the [ID] button on the remote control.The [ID] button will light.Press the [0] to [9] buttons on the remote control to
specify the ID number for the remote control.
The light for the [ID] button will turn off and the registration
will be complete. If a number other than 0 is registered, the
remote control will only be able to operate projectors that have
the same ID number.
Registering an ID...

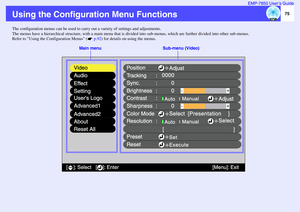

75 EMP-7850 User’s Guide
Using the Configuration Menu FunctionsThe configuration menus can be used to carry out a variety of settings and adjustments.
The menus have a hierarchical structure, with a main menu that is divided into sub-menus, which are further divided into other sub-menus.
Refer to Using the Configuration Menus (  p.92) for details on using the menus.
Video
Audio
Color Mode Position
Tracking
Sync.
Brightness
Contrast
Sharpness
:
: :
: :
Select 0000
     0
     0
    0
+
-+
-
Adjust...

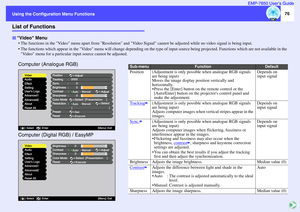

76
Using the Configuration Menu Functions Using the Configuration Menu FunctionsEMP-7850 User’s Guide
List of Functions
 The functions in the Video menu apart from Resolution and Video Signal cannot be adjusted while no video signal is being input.
 The functions which appear in the Video menu will change depending on the type of input source being projected. Functions which are not available in the
Video menu for a particular input source cannot be adjusted.Video MenuComputer (Analogue RGB)
Computer...

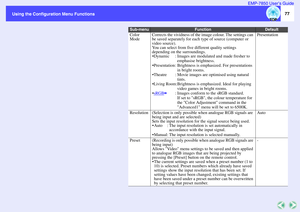

77
Using the Configuration Menu Functions Using the Configuration Menu FunctionsEMP-7850 User’s Guide
Color
Mode
Corrects the vividness of the image colour. The settings can
be saved separately for each type of source (computer or
video source).
You can select from five different quality settings
depending on the surroundings.
Dynamic : Images are modulated and made fresher to
emphasise brightness.
Presentation : Brightness is emphasized. For presentations
in bright rooms.
Theatre : Movie...

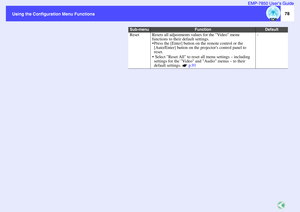

78
Using the Configuration Menu Functions Using the Configuration Menu FunctionsEMP-7850 User’s Guide
Reset
Resets all adjustments values for the Video menu
functions to their default settings.
 Press the [Enter] button on the remote control or the
[Auto/Enter] button on the projectors control panel to
reset.
  Select Reset All to reset all menu settings – including
settings for the Video and Audio menus – to their
default settings.   p.91
-
Sub-menu
Function
Default

79

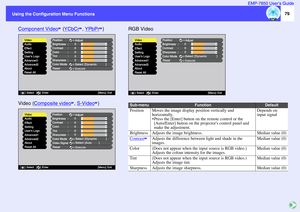

Using the Configuration Menu Functions Using the Configuration Menu FunctionsEMP-7850 User’s Guide
Component Video
 (YCbCr
, YPbPr
)
Video (Composite video
, S-Video
)
Adjust
+
-+
-+
-+
-+
-
Video
Audio
Setting
Users Logo
Advanced1    0
  0
    0
    0     0
Color Mode Position
Brightness
Contrast
Color
Tint
Sharpness:
: :
: :
Select[Dynamic          ]
[Menu]: Exit
ResetReset
ExecuteExecute
[    ]: Enter [    ]: Select
Reset All About Advanced2 Effect
Adjust
+
-+
-+
-+
-+
-
Video
Audio
Setting
Users...
