251
12. Using the Wi-Fi function
∫This unit is compatible with NFC
Using the NFC “ Near Field Communication ” function, you
can easily transfer data necessary for a Wi-Fi connection
between this camera and the smartphone.
∫ About the Wi-Fi connection lamp
∫ About the [Wi-Fi] button
Pressing and holding [Wi-Fi] before connecting to Wi-Fi
(When connecting to a smartphone)
•
The information required for connecting the smartphone to this
unit (QR code, SSID and password) is displayed.  (P255)
Pressing...

12. Using the Wi-Fi function
252

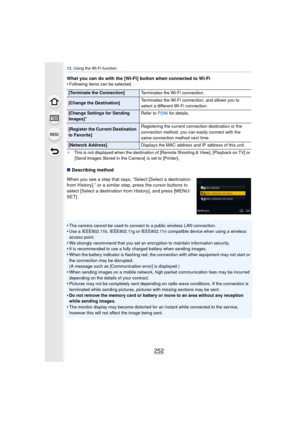

What you can do with the [Wi-Fi] button when connected to Wi-Fi
•Following items can be selected.
¢ This is not displayed when the destination of [Remote Shooting & View], [Playback on TV] or
[Send Images Stored in the Camera]  is set to [Printer] .
∫ Describing method
When you see a step that says, “Select [Select a destination
from History].” or a similar st ep, press the cursor buttons to
select [Select a destination from History], and press [MENU/
SET].
•
The...

253
12. Using the Wi-Fi function
What you can do with the Wi-Fi function
This owner’s manual refers to both smartphones and tablets as “smartphones” from this
point on unless noted otherwise.
Controlling with a Smartphone/Tablet
Recording with a smartphone.
Playing back images in the camera
Saving images stored in the camera.
Sending images to an SNS.
Writing location information on images stored in the camera
P254
Easy connection, easy
transfer
You can use easily by pressing and
holding [Wi-Fi] or by...

12. Using the Wi-Fi function
254
Controlling with a Smartphone/Tablet
You can remotely operate the camera using a
smartphone.
You need to install “ Panasonic Image App ” (referred to
as “ Image App ” from this point on )  on your
smartphone.
The “ Image App ” is an application provided by Panasonic.
•
OS (As of June 2014)
•Use the latest version.•Read the [Help] in the “ Image App ” menu for further details on how to operate.
•The screen differs depending on the OS.•The screens and procedures...

255
12. Using the Wi-Fi function
A connection can be easily established by pressing and holding [Wi-Fi] or by using the
NFC function.
1Press and hold [Wi-Fi].
•The information required for connecting the smartphone to
this unit (QR code, SSID and password) is displayed.
•The same screen can be displayed by selecting the
following menu items.
A SSID and password
B QR code
•To change the connection method, press [DISP.], and then select the connection method.
2Operate the smartphone.
•Once the...

12. Using the Wi-Fi function
256
If you are using an iOS device
When scanning the QR code to set up a connection
(If you are reconnecting the camera, steps  1 to  5 are not required)
1 Start “ Image App ”.  (P254)
2 Select [QR code], and then select [OK] .
3 Using “ Image App ”, scan the QR code displayed
on the screen of the camera.
•
If you press [MENU/SET] on the camera, the QR
code will be enlarged. When it is difficult to scan
the QR code, try enlarging it.
(If the scanning is not successful,...

257
12. Using the Wi-Fi function
When using an SSID and password to set up a connection
1 Turn on the Wi-Fi function in the setting menu of the smartphone.
2 Select the SSID displayed on the screen of the
camera.
3 Enter the password displayed on the screen of the
camera.
(Only when connecting for the first time)
4 Start “ Image App ”.  (P254)
If you are using an Android device
When scanning the QR code to set up a connection
1Start “ Image App ”.  (P254)
2 Select [QR code].
3 Using “ Image App ”,...

12. Using the Wi-Fi function
258
∫Changing the connection method
To change the connection method,  press [DISP.], and then select the connection method.
When connecting with [Via Network]:
1Select [Via Network].
•Follow the connection procedure described on  P289 to connect the camera to a wireless
access point.
2Turn on the Wi-Fi function.3Connect the smartphone to the wireless access point to which the camera is
connected.
4Start “ Image App ”.  (P254)
When connecting with [WPS Connection]
¢ in...

259
12. Using the Wi-Fi function
Using the NFC “ Near Field Communication ” function, you can easily transfer data
necessary for a Wi-Fi connection bet ween this camera and the smartphone.
1Launch “ Image App ” on the smartphone.2While  [ ]  is displayed on the screen of
the smartphone, touch the smartphone to
[ ] of  the camera.
3When the connection confirmation screen
is displayed on the camera, select [Yes].
4Touch the smartphone to [ ] of the
camera again.
•
St e ps  3 through 4 are not required...

12. Using the Wi-Fi function
260

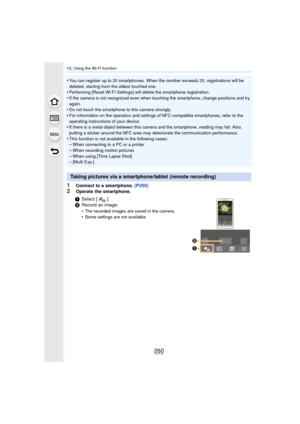

•You can register up to 20 smartphones. When the number exceeds 20, registrations will be
deleted, starting from the oldest touched one.
•Performing [Reset Wi-Fi Settings] will  delete the smartphone registration.•If the camera is not recognized even when touching the smartphone, change positions and try
again.
•Do not touch the smartphone to this camera strongly.•For information on the operation and settings of NFC-compatible smartphones, refer to the
operating...
