41

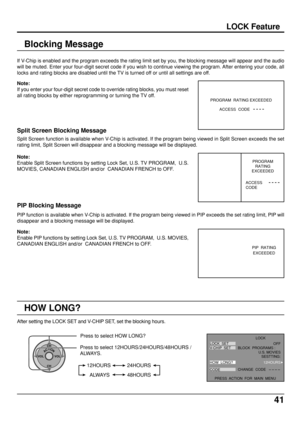

Blocking Message
If V-Chip is enabled and the program exceeds the rating limit set by you, the blocking message will appear and the audio
will be muted. Enter your four-digit secret code if you wish to continue viewing the program. After entering your code, all
locks and rating blocks are disabled until the TV is turned off or until all settings are off.
Note:
If you enter your four-digit secret code to override rating blocks, you must reset
all rating blocks by either reprogramming or turning the TV...

42

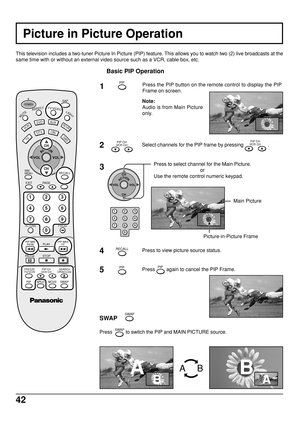

Picture in Picture Operation
This television includes a two-tuner Picture In Picture (PIP) feature. This allows you to watch two (2) live broadcasts at the
same time with or without an external video source such as a VCR, cable box, etc.
Basic PIP Operation
1Press the PIP button on the remote control to display the PIP
Frame on screen.
Note:
Audio is from Main Picture
only.
2Select channels for the PIP frame by pressing PIP CH
VCR CH .
3Press to select channel for the Main Picture.
or
Use the remote...

43

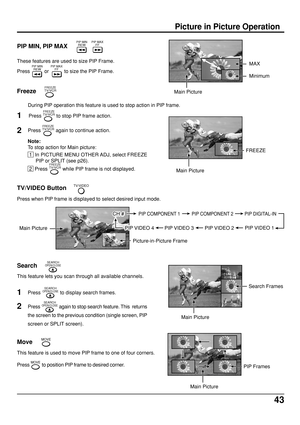

Picture in Picture Operation
PIP MIN, PIP MAX
Freeze
These features are used to size PIP Frame.
Press PIP MINREW or
PIP MAXFF to size the PIP Frame.
During PIP operation this feature is used to stop action in PIP frame.
PIP MINREWPIP MAXFF
FREEZETV/VCR
Press FREEZETV/VCR again to continue action. Press
FREEZETV/VCR to stop PIP frame action.
 1  In PICTURE MENU OTHER ADJ, select FREEZE
PIP or SPLIT (see p26).
 2  Press FREEZETV/VCR while PIP frame is not displayed.
1
2
Note:
To stop action for Main...

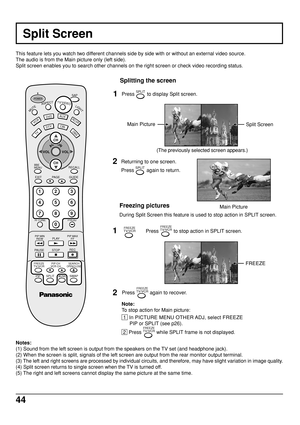

44
This feature lets you watch two different channels side by side with or without an external video source.
The audio is from the Main picture only (left side).
Split screen enables you to search other channels on the right screen or check video recording status.
Split Screen
Notes:
(1) Sound from the left screen is output from the speakers on the TV set (and headphone jack).
(2) When the screen is split, signals of the left screen are output from the rear monitor output terminal.
(3) The left and right...

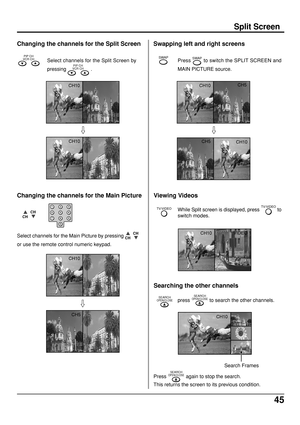

45
Split Screen
Changing the channels for the Split Screen Swapping left and right screens
Changing the channels for the Main Picture
Select channels for the Main Picture by pressing CHCH
or use the remote control numeric keypad.
Viewing Videos
While Split screen is displayed, press TV/VIDEO to
switch modes. Select channels for the Split Screen by
pressing
PIP CH
VCR CH .Press
SWAP to switch the SPLIT SCREEN and
MAIN PICTURE source.SWAP
CH10
CH10
CHCH
123
456
78
09
CH10
CH5
CH10
CH5CH5
CH10
TV/VIDEO...

46

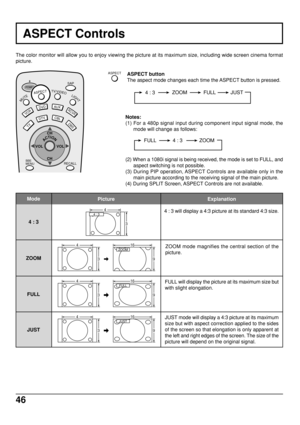

ASPECT Controls
The color monitor will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format
picture.
ASPECT button
The aspect mode changes each time the ASPECT button is pressed.
Notes:
(1) For a 480p signal input during component input signal mode, the
mode will change as follows:
(2) When a 1080i signal is being received, the mode is set to FULL, and
aspect switching is not possible.
(3) During PIP operation, ASPECT Controls are available only in the
main...

47

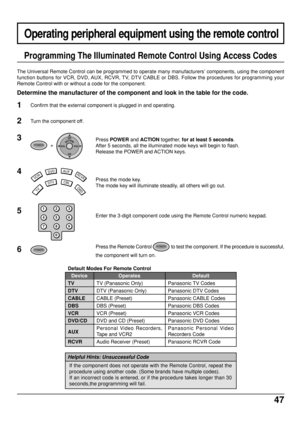

Operating peripheral equipment using the remote control
Programming The Illuminated Remote Control Using Access Codes
The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component
function buttons for VCR, DVD, AUX, RCVR, TV, DTV CABLE or DBS. Follow the procedures for programming your
Remote Control with or without a code for the component.
Determine the manufacturer of the component and look in the table for the code.
1Confirm that the external...

48

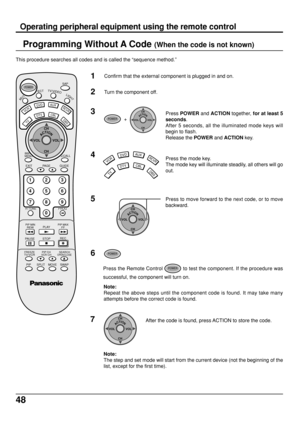

Programming Without A Code (When the code is not known)
This procedure searches all codes and is called the “sequence method.”
1Confirm that the external component is plugged in and on.
2Turn the component off.
3
TV
DTVCBL
AUXDVD
VCR
DBS
RCVR4
POWER  +  ACTIONCH
CH VOL VOLPress POWER and ACTION together, for at least 5
seconds.
After 5 seconds, all the illuminated mode keys will
begin to flash.
Release the POWER and ACTION key.
Press the mode key.
The mode key will illuminate steadily, all others will...

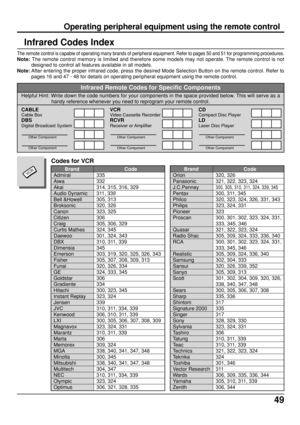

49
Operating peripheral equipment using the remote control
The remote control is capable of operating many brands of peripheral equipment. Refer to pages 50 and 51 for programming procedures.
Note: The remote control memory is limited and therefore some models may not operate. The remote control is not
designed to control all features available in all models.
Note: After entering the proper infrared code, press the desired Mode Selection Button on the remote control. Refer to
pages 16 and 47 - 48 for...

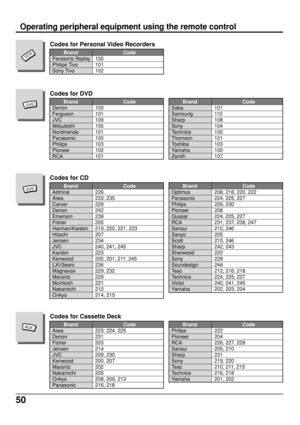

50
        Brand Code
Panasonic Replay100
Philips Tivo 101
Sony Tivo 102
VCR
Codes for Personal Video Recorders
        Brand Code
Denon 100
Ferguson 101
JVC 109
Mitsubishi 105
Nordmende 101
Panasonic 100
Philips 103
Pioneer 102
RCA 101
Codes for DVD
DVD        Brand Code
Saba 101
Samsung 110
Sharp 108
Sony 104
Technics 100
Thomson 101
Toshiba 103
Yamaha 100
Zenith 107
        Brand Code
Admiral 226
Aiwa 233, 235
Carver 229
Denon 242
Emerson 239
Fisher 205
Harman/Kardon 219, 220, 221, 223
Hitachi 207...
