113M™ Multimedia Projector MP7730
© 3M IPC 2000
The remote control sensor is located near the back of the projector. The distance between the sensor
and the remote control unit must be shorter than 4 meters (13 feet).

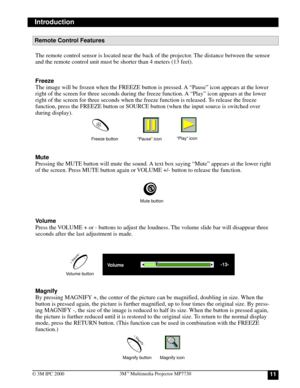

Freeze
The image will be frozen when the FREEZE button is pressed. A “Pause” icon appears at the lower
right of the screen for three seconds during the freeze function. A “Play” icon appears at the lower
right of the screen for three seconds when the freeze function is released. To release...

3M™ Multimedia Projector MP773012© 3M IPC 2000
Laser
Press this button to generate the laser beam that functions as a red pointer on the screen.
Disk Pad
If the PS/2 (ADB) mouse cable is connected with the PC Notebook or Mac Powerbook mouse port,
the Disk Pad can take over the Notebook or Powerbook mouse function. When the MAGNIFY
function is activated, use the Disk Pad to move around the display areas.
Note:  The mouse function is not available when the MAGNIFY function is turned on.
R-Click, L-Click...

133M™ Multimedia Projector MP7730
© 3M IPC 2000

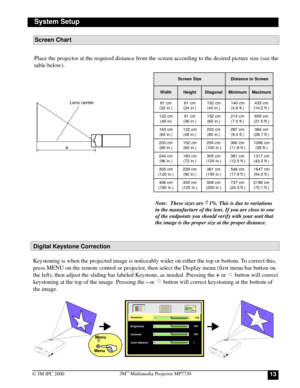

Place the projector at the required distance from the screen according to the desired picture size (see the
table below).Screen Chart
System Setup
Digital Keystone Correction
Keystoning is when the projected image is noticeably wider on either the top or bottom. To correct this,
press MENU on the remote control or projector, then select the Display menu (first menu bar button on
the left), then adjust the sliding bar labeled Keystone, as needed. Pressing...

3M™ Multimedia Projector MP773014© 3M IPC 2000

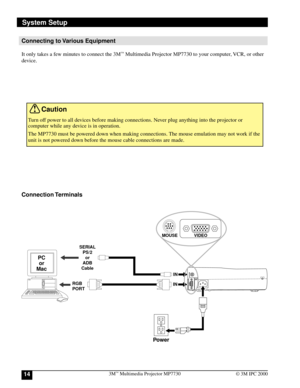

Connecting to Various Equipment
It only takes a few minutes to connect the 3M™ Multimedia Projector MP7730 to your computer, VCR, or other
device.
Connection Terminals
Turn off power to all devices before making connections. Never plug anything into the projector or
computer while any device is in operation.
The MP7730 must be powered down when making connections. The mouse emulation may not work if the
unit is not powered down before the mouse cable...

153M™ Multimedia Projector MP7730
© 3M IPC 2000
Apple™ Desktop Mouse
The Macintosh operating system should recognize the MP7730 as a mouse without any drivers being loaded.
VirtualMouse for PC Computer
For IBM™ compatible computers, set the operating systems to Serial Mouse or PS/2 Mouse to recognize projec-
tor as the mouse pointer device.
To set mouse driver information:
a)Windows
™ 95/Windows™ 98/Windows™ NT
 Note: For proper mouse operation, always turn the projector power on first and power up the...

3M™ Multimedia Projector MP773016© 3M IPC 2000
Operation
Startup

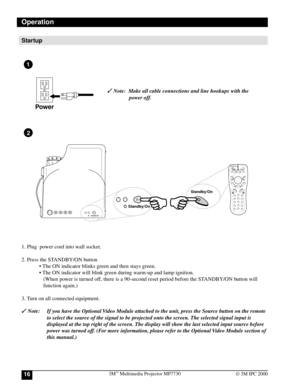

1. Plug  power cord into wall socket.
2. Press the STANDBY/ON button
• The ON indicator blinks green and then stays green.
• The ON indicator will blink green during warm-up and lamp ignition.
   (When power is turned off, there is a 90-second reset period before the STANDBY/ON button will
   function again.)
3. Turn on all connected equipment.
 Note:  Make all cable connections and line hookups with the
   power off.
Power
1
2
 Note: If...

173M™ Multimedia Projector MP7730
© 3M IPC 2000

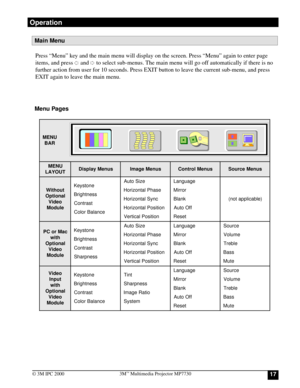

Menu PagesPress “Menu” key and the main menu will display on the screen. Press “Menu” again to enter page
items, and press     and     to select sub-menus. The main menu will go off automatically if there is no
further action from user for 10 seconds. Press EXIT button to leave the current sub-menu, and press
EXIT again to leave the main menu.
U N E M
R A B
U N E M
T U O Y A Ls u n e M y a l p s i Ds u n e M e g a m Is u n e M l o r t n o Cs u n e M e c r u...

3M™ Multimedia Projector MP773018© 3M IPC 2000

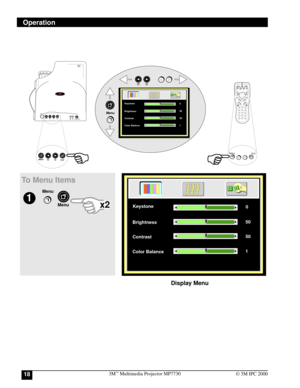

MenuExit
MenuMENU
EXITSTANDBY/ON
MP7630
DLPA TEXAS INSTRUMENTS PRODUCT
MENU
EXIT
Keystone
0
Brightness50
Contrast50
Color Balance1
Menu
Exit
Menu Menu
1
x2
To Menu Items
Keystone
0
Brightness50
Contrast50
Color Balance1Keystone
0
Brightness50
Contrast50
Color Balance1
Keystone
0
Brightness50
Contrast50
Color Balance1

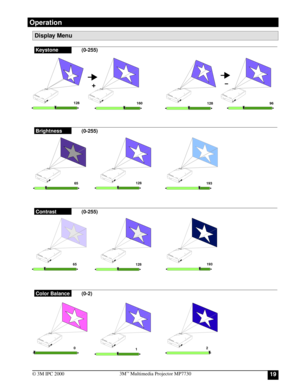

Display Menu
Operation

193M™ Multimedia Projector MP7730
© 3M IPC 2000
Color Balance(0-2)
Keystone(0-255)
128160 96128
Brightness(0-255)
12865193
Contrast(0-255)
12865193
021
Display Menu
Operation

3M™ Multimedia Projector MP773020© 3M IPC 2000

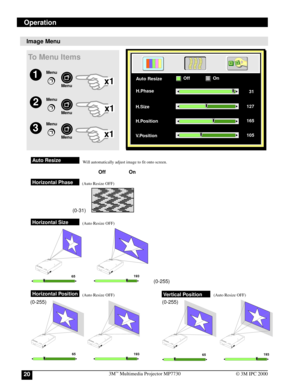

Image Menu
1
x1
2
x1
3
x1
Horizontal Phase
To Menu Items
Auto Resize
Off On
Horizontal Size
65193
Horizontal Position
65193
Vertical Position
65193
Will automatically adjust image to fit onto screen.
(Auto Resize OFF)
(Auto Resize OFF) (Auto Resize OFF) (Auto Resize OFF)
(0-255) (0-31)
(0-255) (0-255)
Menu Menu
Menu Menu
Menu Menu
H.Phase Auto Resize
31
H.Size127
H.Position165
V.Position105
OffOn
H.Phase Auto Resize
31
H.Size127
H.Position165
V.Position105...
