3M Multimedia Projector Mp8625 Operators Manual

© 3M 1998 3Mª Multimedia Projector MP8625
ENGLISH

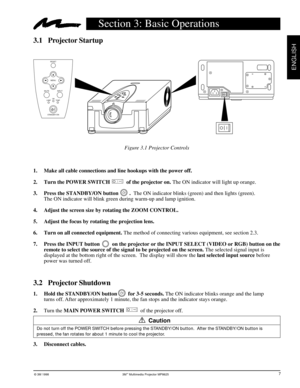

3.1 Projector Startup
Section 3: Basic Operations
7
Figure 3.1 Projector Controls
1. Make all cable connections and line hookups with the power off.
2. Turn the POWER SWITCH            of the projector on. The ON indicator will light up orange.
3. Press the STANDBY/ON button        .  The ON indicator blinks (green) and then lights (green).
The ON indicator will blink green during warm-up and lamp ignition.
4. Adjust the screen size by rotating the ZOOM...

3Mª Multimedia Projector MP8625© 3M 1998
ENGLISH

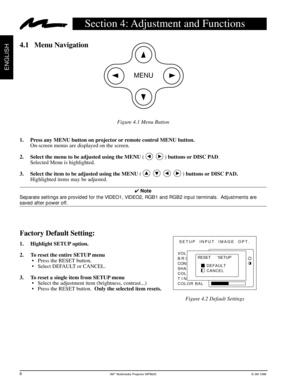

Factory Default Setting:
1.     Highlight SETUP option.
2.     To reset the entire SETUP menu
¥ Press the RESET button.
¥ Select DEFAULT or CANCEL.
3.     To reset a single item from SETUP menu
¥ Select the adjustment item (brightness, contrast...)
¥ Press the RESET button.  Only the selected item resets.
SETUP INPUT  IMAGE  OPT.
RESET      ‘SETUP’
DEFAULT
CANCEL VOL
BRI
CON
SHA
COL
TIN
COLOR BAL
Section 4: Adjustment and Functions
4.1 Menu Navigation
1....

© 3M 1998 3Mª Multimedia Projector MP8625
ENGLISH

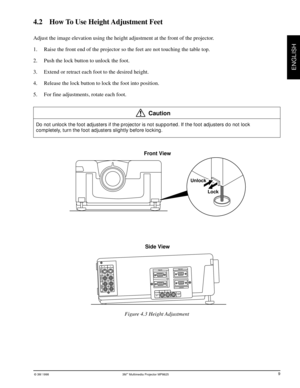

4.2    How To Use Height Adjustment Feet
Adjust the image elevation using the height adjustment at the front of the projector.
1. Raise the front end of the projector so the feet are not touching the table top.
2. Push the lock button to unlock the foot.
3. Extend or retract each foot to the desired height.
4. Release the lock button to lock the foot into position.
5. For fine adjustments, rotate each foot.
Caution
Do not unlock the foot adjusters if the...

3Mª Multimedia Projector MP8625© 3M 1998
ENGLISH
4.3 SETUP
The SETUP sub-menu is used to adjust and move the image position. The projector will display either the RGB
(Figure 4.4) or Video (Figure 4.5) menu according to the input source being projected.
RGB signal input Video signal input
4 Note
¥ TINT cannot be adjusted with a PAL or M-PAL video signal input.
¥ TINT, COLOR and SHARPNESS cannot be adjusted with an RGB signal input.
¥ V. POSIT, H. POSIT, H. PHASE and H. SIZE cannot be adjusted with a...

© 3M 1998 3Mª Multimedia Projector MP8625
ENGLISH

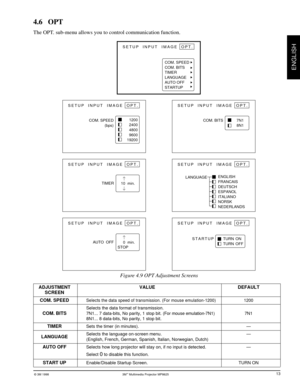

4.4 INPUT
The menu INPUT sub-menu (Figure 4.6) is used to select the input source. The VIDEO1 and VIDEO2 values
(Figure 4.7) have additional values that can be selected.
11
Figure 4.6 Input Menu Figure 4.7
Value
Selects the video signal
format Auto, NTSC, PAL,
SECAM, NTSC 4.43, M-PAL Adjustment
Area
RGB1
RGB2
Video1
Video2Value
Selects the RGB1 terminal
Selects the RGB2 terminal
Select the VIDEO1 or
VIDEO2 terminalValue
Screen
System

3Mª Multimedia Projector MP8625© 3M 1998
ENGLISH
12
Adjustment
Screen
MIRROR
BLANK
REVEAL
MESSAGEValue
Inverts the picture horizontally or vertically.
H : INVERT Inverts the picture horizontally.
V : INTERT Inverts the picture vertically.
H&V : INVERT Inverts the picture horizontally and vertically.
Selects the blank color.
Selects reveal speed.
Turn ON or OFF on-screen messages.

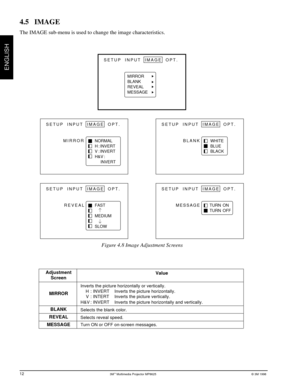

4.5 IMAGE
The IMAGE sub-menu is used to change the image characteristics.
SETUP INPUT  IMAGE  OPT.
MIRROR
BLANK
REVEAL...

© 3M 1998 3Mª Multimedia Projector MP8625
ENGLISH
4.6 OPT
The OPT. sub-menu allows you to control communication function.
ADJUSTMENT                                          VALUE DEFAULT
SCREEN
COM. SPEEDSelects the data speed of transmission. (For mouse emulation-1200) 1200
Selects the data format of transmission.
COM. BITS7N1... 7 data-bits, No parity, 1 stop bit. (For mouse emulation-7N1) 7N1
8N1... 8 data-bits, No parity, 1 stop bit.
TIMERSets the timer (in minutes). Ñ
LANGUAGESelects the language...

3Mª Multimedia Projector MP8625© 3M 1998
ENGLISH

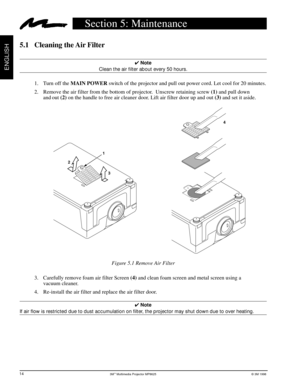

5.1 Cleaning the Air Filter
4 Note
Clean the air filter about every 50 hours.
1. Turn off the MAIN POWER switch of the projector and pull out power cord. Let cool for 20 minutes.
2. Remove the air filter from the bottom of projector.  Unscrew retaining screw (1) and pull down
and out (2) on the handle to free air cleaner door. Lift air filter door up and out (3) and set it aside.
3. Carefully remove foam air filter Screen (4) and clean foam screen and...

© 3M 1998 3Mª Multimedia Projector MP8625
ENGLISH
6.1 Lamp
The following symptoms may indicate a lamp in need of replacement:
¥ LAMP indicator lights up red.
¥ CHANGE THE LAMP message appears on the screen.
4 Note
This lamp contains mercury. Consult your local hazards waste regulations and dispose of this lamp in a
proper manner.
6.2 Display Lamp Operation Hours
To determine the lamp operation hours,  follow these steps:
1. While the projector is running, press and hold the timer button on the remote...

3Mª Multimedia Projector MP8625© 3M 1998
ENGLISH
8625-16A
2
1
3
4

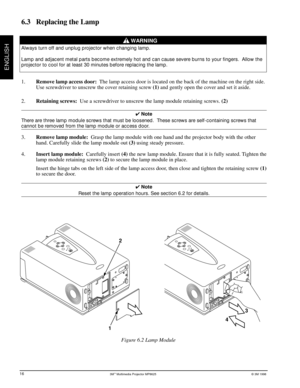

6.3 Replacing the Lamp
WARNING
Always turn off and unplug projector when changing lamp.
Lamp and adjacent metal parts become extremely hot and can cause severe burns to your fingers.  Allow the
projector to cool for at least 30 minutes before replacing the lamp.
1.Remove lamp access door:  The lamp access door is located on the back of the machine on the right side.
Use screwdriver to unscrew the cover retaining screw (1) and gently open...
