3M Projector Sleeve User Manual

 User’s Manual
1
EN Important Notice All statements, technical information, and recommendations related to 3Ms
products are based on information believed to be reliable, but the accuracy or
completeness is not guaranteed. Before using this product, you must evaluate it
and determine if it is suitable for your intended application. You assume all risks
and liability associated with such use. Any statements related to the product which
are not contained in 3M’s current publications, or any contrary...

User’s Manual
2
EN Intended Use Statement The 3M Projector Sleeve for iPhone 4/4S is designed to operate with the Apple®
iPhone 4 and iPhone 4S and charge using Apple USB power adapter or computer
USB port in environments that meet these conditions:
z  5° to 35°C (41° to 95°F) z 20–80% RH (without condensation) z 0– 3048 m (0–10,000 feet) above sea level
Continued exposure to smoke, grease, oil and other airborne contaminants can
affect the operation or performance of the projector. Use of this...

 User’s Manual
3
EN Warning To reduce the risk associated with hazardous voltage, fire, explosion, battery
leakage or overheating which may cause serious injury or death:
z Do not leave the product in a car or in direct sunlight for extended periods of
time. (-20 C to 70 C)
z Do not disassemble/ modify the product or attempt to remove the battery. z Do not attempt to service this product. Contact manufacturer. z Do not use the product in water or a damp environment.   z Do not use a damaged USB...

User’s Manual
4

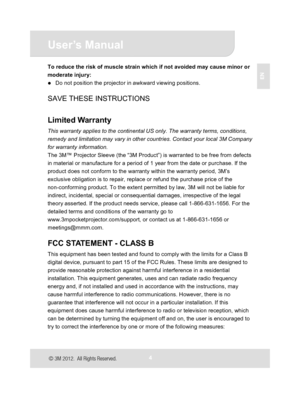

EN To reduce the risk of muscle strain which if not avoided may cause minor or
moderate injury:
z  Do not position the projector in awkward viewing positions.

SAVE THESE INSTRUCTIONS

Limited Warranty This warranty applies to the continental US only. The warranty terms, conditions,
remedy and limitation may vary in other countries. Contact your local 3M Company
for warranty information.
The 3M™ Projector Sleeve (the “3M Product”) is warranted to be free from defects
in...

 User’s Manual
5

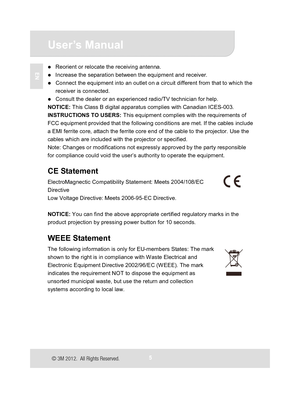

EN z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
NOTICE:  This Class B digital apparatus complies with Canadian ICES-003.
INSTRUCTIONS TO USERS:  This equipment complies with the requirements of
FCC equipment provided that the following...

User’s Manual
6

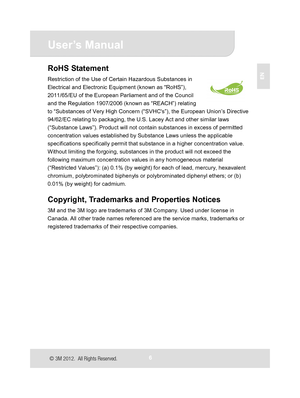

EN RoHS Statement Restriction of the Use of Certain Hazardous Substances in
Electrical and Electronic Equipment (known as RoHS”),
2011/65/EU of the European Parliament and of the Council
and the Regulation 1907/2006 (known as “REACH”) relating
to “Substances of Very High Concern (“SVHCs”), the European Union’s Directive
94/62/EC relating to packaging, the U.S. Lacey Act and other similar laws
(“Substance Laws”). Product will not contain substances in excess of permitted...

 User’s Manual
7

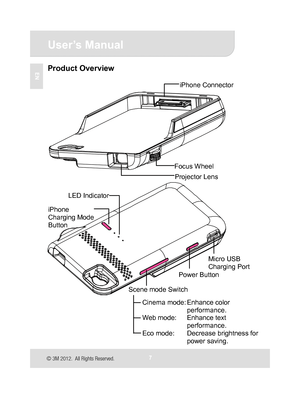

EN Product Overview



Scene mode  Switch iPhone Connector
Focus Wheel  Projector Lens
LED Indicato
r
iPhone
Charging Mode
Button
Micro USB
Charging Port
Power Button
Cinema mode: Enhance color  performance.
Web mode:  Enhance text  performance.
Eco mode:  Decrease brightness for  power saving.
© 3M 2012.  All Rights Reserved.

User’s Manual
8

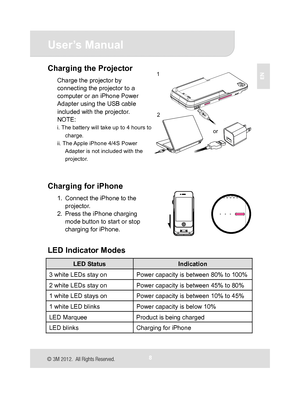

EN Charging the Projector
Charge the projector by
connecting the projector to a
computer or an iPhone Power
Adapter using the USB cable
included with the projector.
NOTE:
i. The battery will take up to 4 hours to charge.
ii. The Apple iPhone 4/4S Power
Adapter is not included with the
projector.



Charging for iPhone
1.  Connect the iPhone to the
projector.
2.  Press the iPhone charging
mode button to start or stop
charging for iPhone.


LED Indicator Modes...

 User’s Manual
9

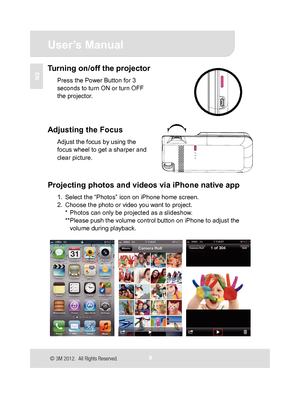

EN Turning on/off the projector
Press the Power Button for 3
seconds to turn ON or turn OFF
the projector.




Adjusting the Focus
Adjust the focus by using the
focus wheel to get a sharper and
clear picture.



Projecting photos and videos via iPhone native app
1.  Select the “Photos” icon on iPhone home screen.
2.  Choose the photo or video you want to project. *  Photos can only be projected as a slideshow.
**Please push the volume control button on iPhone to...
