ADDERLink INFINITY Manual
Here you can view all the pages of manual ADDERLink INFINITY Manual. The ADDER manuals for Extender are available online for free. You can easily download all the documents as PDF.

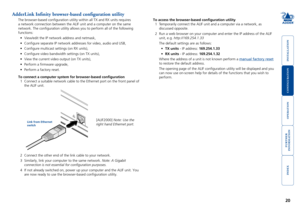

Page 21
20 AdderLink Infinity browser-based configuration utility The browser-based configuration utility within all TX and RX units req\ uires a network connection between the ALIF unit and a computer on the same network. The configuration utility allows you to perform all of the fo\ llowing functions: • View/edit the IP network address and netmask, • Configure separate IP network addresses for video, audio and USB, • Configure multicast...

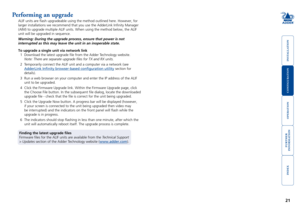

Page 22
21 Performing an upgrade ALIF units are flash upgradeable using the method outlined here. Howev\ er, for larger installations we recommend that you use the AdderLink Infinity \ Manager (AIM) to upgrade multiple ALIF units. When using the method below, the\ ALIF unit will be upgraded in sequence. Warning: During the upgrade process, ensure that power is not interrupted as this may leave the unit in an inoperable state. To upgrade a single...
Page 23

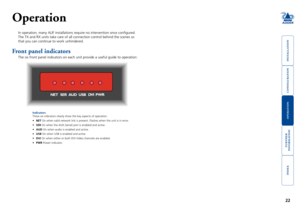

22 Operation In operation, many ALIF installations require no intervention once confi\ gured. The TX and RX units take care of all connection control behind the scene\ s so that you can continue to work unhindered. Front panel indicators The six front panel indicators on each unit provide a useful guide to op\ eration: NETSERAUDUSB DVIPWR HT IndicatorsThese six indicators clearly show the key aspects of operation: • NET On when valid...
Page 24

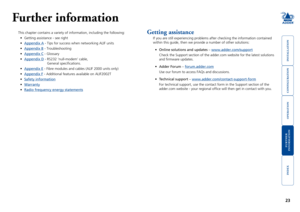

23 Further information This chapter contains a variety of information, including the following:\ • Getting assistance - see right • Appendix A - Tips for success when networking ALIF units • Appendix B - Troubleshooting • Appendix C - Glossary • Appendix D - RS232 ‘null-modem’ cable, General specifications. • Appendix E - Fibre modules and cables (ALIF 2000 units only) • Appendix F - Additional features available on ALIF2002T • Safety...

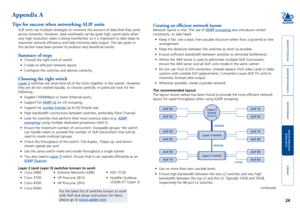

Page 25
24 Appendix A Tips for success when networking ALIF units ALIF units use multiple strategies to minimise the amount of data that t\ hey send across networks. However, data overheads can be quite high, particularly\ when very high resolution video is being transferred, so it is important to t\ ake steps to maximise network efficiency and help minimise data output. The tips gi\ ven in this section have been proven to produce very...

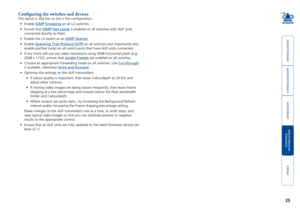

Page 26
25 Configuring the switches and devices The layout is vital but so too is the configuration: • Enable IGMP Snooping on all L2 switches. • Ensure that IGMP Fast-Leave is enabled on all switches with ALIF units connected directly to them. • Enable the L3 switch as an IGMP Querier. • Enable Spanning Tree Protocol (STP) on all switches and importantly also enable portfast (only) on all switch ports that have ALIF units connec\ ted. • If...

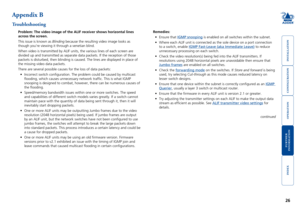

Page 27
26 Appendix B Troubleshooting Problem: The video image of the ALIF receiver shows horizontal lines across the screen. This issue is known as Blinding because the resulting video image looks as though you’re viewing it through a venetian blind. When video is transmitted by ALIF units, the various lines of each scree\ n are divided up and transmitted as separate data packets. If the reception of\ those packets is disturbed, then blinding...

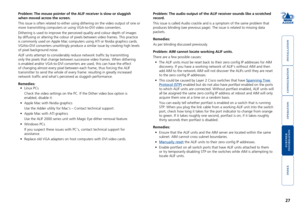

Page 28
27 Problem: The mouse pointer of the ALIF receiver is slow or sluggish when moved across the screen. This issue is often related to either using dithering on the video outpu\ t of one or more transmitting computers or using VGA-to-DVI video converters. Dithering is used to improve the perceived quality and colour depth of i\ mages by diffusing or altering the colour of pixels between video frames. This\ practice is commonly used on Apple...

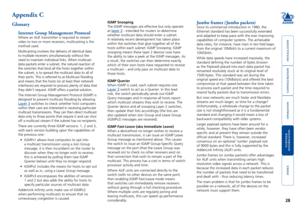

Page 29
28 Appendix C Glossary Internet Group Management Protocol Where an ALIF transmitter is required to stream video to two or more receivers, multicasting is the method used. Multicasting involves the delivery of identical data to multiple receivers simultaneously without the need to maintain individual links. When multicast data packets enter a subnet, the natural reaction of the switches that bind all the hosts together within the...

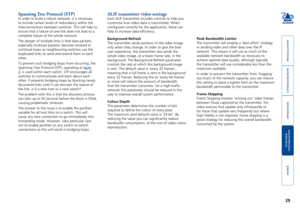

Page 30
29 Spanning Tree Protocol (STP) In order to build a robust network, it is necessary to include certain levels of redundancy within the interconnections between switches. This will help to ensure that a failure of one link does not lead to a complete failure of the whole network. The danger of multiple links is that data packets, especially multicast packets, become involved in continual loops as neighbouring switches use the duplicated...
