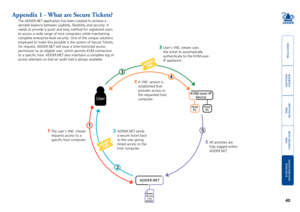

Appendix 1 - What are Secure Tickets?
The ADDER.NET application has been created to achieve a
sensible balance between usability, flexibility and security. It
needs to provide a quick and easy method for registered users
to access a wide range of host computers while maintaining
complete enterprise-level security. One of the unique solutions
employed to make this possible is the system of Secure Tickets.
On request, ADDER.NET...

gettingstarted
welcome
rter
inormation
41
te
manager
te
connector

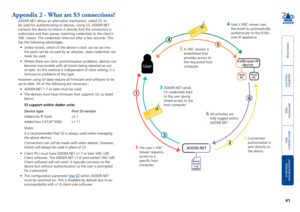

Appendix 2 - What are S3 connections?
ADDER.NET allows an alternative mechanism, called S3, to
be used for authenticating to devices. Using S3, ADDER.NET
contacts the device to inform it directly that the connection is
authorised and then passes matching credentials to the client’s
VNC viewer. The credentials time-out after a few seconds. This
has the following advantages:
•	 Unlike	tickets,	which	(if	the	device’s	clock	can	be...

gettingstarted
welcome
rter
inormation
42
te
manager
te
connector

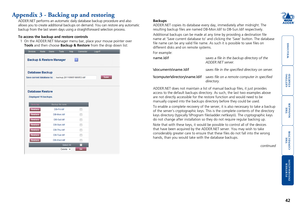

Appendix 3 - Backing up and restoring
ADDER.NET performs an automatic daily database backup procedure and also\

allows you to create additional backups on demand. You can restore any a\
utomatic
backup from the last seven days using a straightforward selection proces\
s.
To access the backup and restore controls
1 On the ADDER.NET Manager menu bar, place your mouse pointer over
Tools and then choose Backup & Restore from the drop...

gettingstarted
welcome
rter
inormation
43
te
manager
te
connector

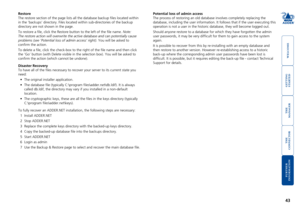

Restore
The restore section of the page lists all the database backup files lo\
cated within
in the ‘backups’ directory. Files located within sub-directories o\
f the backup
directory are not shown in the page.
To restore a file, click the Restore button to the left of the file \
name. Note:
The restore action will overwrite the active database and can potentiall\
y cause
problems (see ‘Potential loss of admin access’ right)....

gettingstarted
welcome
rter
inormation
44
te
manager
te
connector

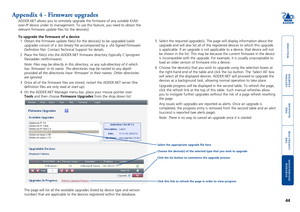

Appendix 4 - Firmware upgrades
ADDER.NET allows you to remotely upgrade the firmware of any suitable \
KVM-
over-IP device under its management. To use this feature, you need to ob\
tain the
relevant firmware update files for the device(s).
To upgrade the firmware of a device
1 Obtain the firmware update file(s) for the device(s) to be upgra\
ded (valid
upgrades consist of a .bin binary file accompanied by a .sfd Signed Firmware...

gettingstarted
welcome
rter
inormation
45
te
manager
te
connector

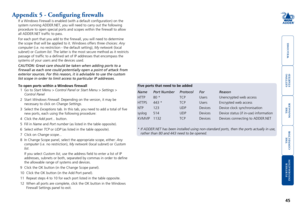

Appendix 5 - Configuring firewalls
If a Windows Firewall is enabled (with a default configuration) on t\
he
system running ADDER.NET, you will need to carry out the following
procedure to open special ports and scopes within the firewall to allo\
w
all ADDER.NET traffic to pass.
For each port that you add to the firewall, you will need to determine\

the scope that will be applied to it. Windows offers three choices: Any...

gettingstarted
welcome
rter
inormation
46
te
manager
te
connector

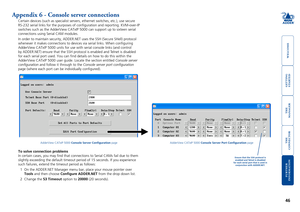

Appendix 6 - Console server connections
Certain devices (such as specialist servers, ethernet switches, etc.),\
 use secure
RS-232 serial links for the purposes of configuration and reporting. K\
VM-over-IP
switches such as the AdderView CATxIP 5000 can support up to sixteen ser\
ial
connections using Serial CAM modules.
In order to maintain security, ADDER.NET uses the SSH (Secure SHell) protocol
whenever it makes connections...

gettingstarted
welcome
rter
inormation
47
te
manager
te
connector

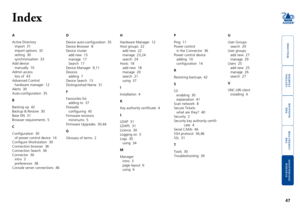

Index
A
Active Directory
import  31
import options  32
setting  30
synchronisation  33
Add device
manually  10
Admin access
loss of  43
Advanced Control
hardware manager  12
Alerts  30
Auto-configuration  35
B
Backing up  42
Backup & Restore  30
Base DN  31
Browser requirements  5
C
Configuration  30
of power control device  14
Configure Workstation  30
Connection	browser		36
Connection	Search		36
Connector		36
intro  3
preferences...

gettingstarted
welcome
rter
inormation
48
te
manager
te
connector

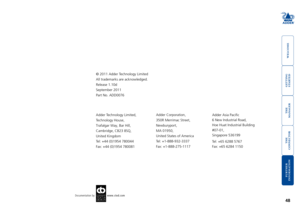

© 2011 Adder Technology Limited
