Adtran Atlas 800 Series Dual Video User Manual
Here you can view all the pages of manual Adtran Atlas 800 Series Dual Video User Manual. The Adtran manuals for Communications System are available online for free. You can easily download all the documents as PDF.

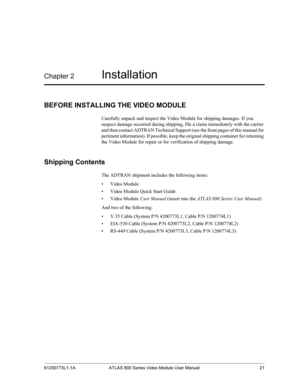

Page 21
61200773L1-1A ATLAS 800 Series Video Module User Manual 21 Chapter 2Installation BEFORE INSTALLING THE VIDEO MODULE Carefully unpack and inspect the Video Module for shipping damages. If you suspect damage occurred during shipping, file a claim immediately with the carrier and then contact ADTRAN Technical Support (see the front pages of this manual for pertinent information). If possible, keep the original shipping container for returning the Video Module for repair or for verification of shipping...

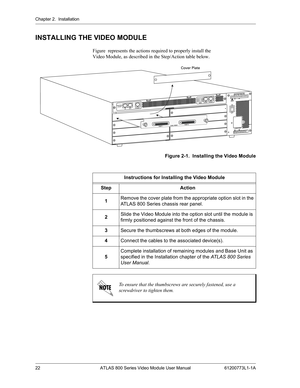

Page 22
Chapter 2. Installation 22 ATLAS 800 Series Video Module User Manual 61200773L1-1A INSTALLING THE VIDEO MODULE Figure represents the actions required to properly install the Video Module, as described in the Step/Action table below. Figure 2-1. Installing the Video Module Instructions for Installing the Video Module Step Action 1Remove the cover plate from the appropriate option slot in the ATLAS 800 Series chassis rear panel. 2Slide the Video Module into the option slot until the module is...

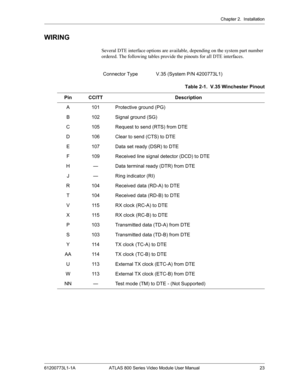

Page 23
Chapter 2. Installation 61200773L1-1A ATLAS 800 Series Video Module User Manual 23 WIRING Several DTE interface options are available, depending on the system part number ordered. The following tables provide the pinouts for all DTE interfaces. Connector Type V.35 (System P/N 4200773L1) Table 2-1. V.35 Winchester Pinout Pin CCITT Description A 101 Protective ground (PG) B 102 Signal ground (SG) C 105 Request to send (RTS) from DTE D 106 Clear to send (CTS) to DTE E 107 Data set ready (DSR) to DTE F...
Page 24
Chapter 2. Installation 24 ATLAS 800 Series Video Module User Manual 61200773L1-1A Connector Type EIA 530 (System P/N 4200773L2) Table 2-2. EIA-530 Connector Pinout Pin Signal Description Pin Signal Description 1 Shield (Ground) 13 Clear to Send (B) 2 Transmit Data (A) 14 Transmit Data (B) 3 Received Data (A) 15 Transmit Clock (A) 4 Request to Send (A) 16 Received Data (B) 5 Clear to Send (A) 17 Receive Clock (A) 6 DCE Ready (A) 18 Not Used 7 Signal Ground 19 Request to Send (B) 8 Carrier Detect (A)...

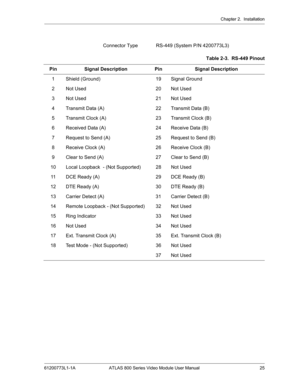

Page 25
Chapter 2. Installation 61200773L1-1A ATLAS 800 Series Video Module User Manual 25 Connector Type RS-449 (System P/N 4200773L3) Table 2-3. RS-449 Pinout Pin Signal Description Pin Signal Description 1 Shield (Ground) 19 Signal Ground 2 Not Used 20 Not Used 3 Not Used 21 Not Used 4 Transmit Data (A) 22 Transmit Data (B) 5 Transmit Clock (A) 23 Transmit Clock (B) 6 Received Data (A) 24 Receive Data (B) 7 Request to Send (A) 25 Request to Send (B) 8 Receive Clock (A) 26 Receive Clock (B) 9 Clear to Send...
Page 26
Chapter 2. Installation 26 ATLAS 800 Series Video Module User Manual 61200773L1-1A POWER UP AND INITIALIZATION The Video Module requires no initialization input during the power-up sequence, as described in the ATLAS 800 Series User Manuals. Any previously configured set- ting for the Video Module is automatically restored upon power-up. Failed Self-Test If the Video Module fails self-test, a message will be displayed in the terminal menu self-test log during power-up. See the appropriate ATLAS 800...
Page 27
61200773L1-1A ATLAS 800 Series Video Module User Manual 27 Chapter 3Operation OVERVIEW You can control and configure the Video Module from a variety of sources, includ- ing the following: • The terminal menus, allowing detailed configuration, status, and diagnostics • SNMP, primarily for reporting alarm conditions and system status The remainder of this section describes the menu items presented when managing the Video Module via the terminal menu. Access the terminal menu using either a VT-100...

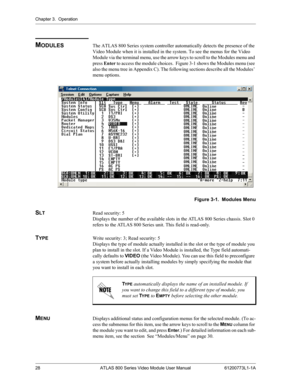

Page 28
Chapter 3. Operation 28 ATLAS 800 Series Video Module User Manual 61200773L1-1A MODULESThe ATLAS 800 Series system controller automatically detects the presence of the Video Module when it is installed in the system. To see the menus for the Video Module via the terminal menu, use the arrow keys to scroll to the Modules menu and press Enter to access the module choices. Figure 3-1 shows the Modules menu (see also the menu tree in Appendix C). The following sections describe all the Modules’ menu...

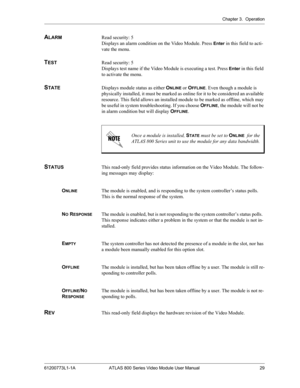

Page 29
Chapter 3. Operation 61200773L1-1A ATLAS 800 Series Video Module User Manual 29 ALARMRead security: 5 Displays an alarm condition on the Video Module. Press Enter in this field to acti- vate the menu. TEST Read security: 5 Displays test name if the Video Module is executing a test. Press Enter in this field to activate the menu. STATEDisplays module status as either ONLINE or OFFLINE. Even though a module is physically installed, it must be marked as online for it to be considered an available...

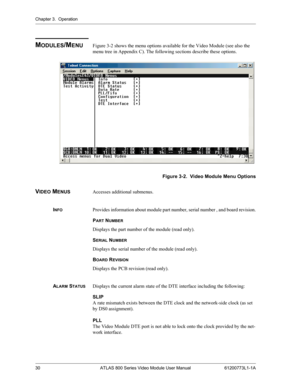

Page 30
Chapter 3. Operation 30 ATLAS 800 Series Video Module User Manual 61200773L1-1A MODULES/MENUFigure 3-2 shows the menu options available for the Video Module (see also the menu tree in Appendix C). The following sections describe these options. Figure 3-2. Video Module Menu Options VIDEO MENUSAccesses additional submenus. I NFOProvides information about module part number, serial number , and board revision. P ART NUMBER Displays the part number of the module (read only). S ERIAL NUMBER Displays the...
