Page 11

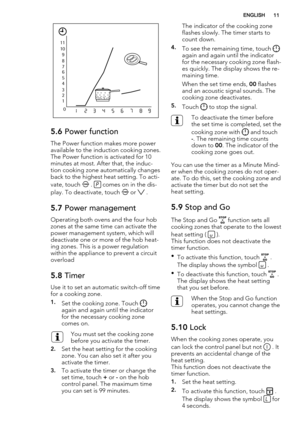

1 2 3 4 5 6 7 8 9 10 11 0 123456789 5.6 Power function The Power function makes more power available to the induction cooking zones. The Power function is activated for 10 minutes at most. After that, the induc- tion cooking zone automatically changes back to the highest heat setting. To acti- vate, touch . comes on in the dis- play. To deactivate, touch or . 5.7 Power management Operating both ovens and the four hob zones at the same time can activate the power management system, which will...
Page 12

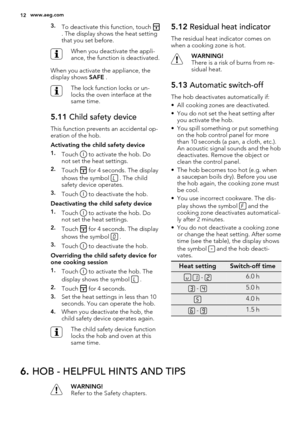

3.To deactivate this function, touch . The display shows the heat setting that you set before. When you deactivate the appli- ance, the function is deactivated. When you activate the appliance, the display shows SAFE . The lock function locks or un- locks the oven interface at the same time. 5.11 Child safety device This function prevents an accidental op- eration of the hob. Activating the child safety device 1.Touch to activate the hob. Do not set the heat settings. 2.Touch for 4 seconds. The...
Page 13
6.1 Cookware for induction cooking zones In induction cooking, a powerful electromagnetic field almost in- stantly generates heat inside the cookware. Cookware material •Correct: cast iron, steel, enamelled steel, stainless steel, a multi-layer bot- tom (marked as correct by the manu- facturer). •Incorrect: aluminium, copper, brass, glass, ceramic, porcelain. Cookware is correct for an induction hob if: • Water boils very quickly on a zone set to the highest heat setting. • You can attach a magnet to the...
Page 14
Heat set- tingUse to:TimeHints 2-3Simmer rice and milkbased dishes, heating up ready- cooked meals25-50 minAdd at least twice as much liquid as rice, stir milk dishes part way through 3-4Steam vegetables, fish, meat20-45 minAdd a few tablespoons of liquid 4-5Steam potatoes20-60 minUse max. ¼ l water for 750 g of potatoes 4-5Cook larger quantities of food, stews and soups60-150 minUp to 3 l liquid plus ingredi- ents 6-7Gentle fry: escalope, veal cor- don bleu, cutlets, rissoles, saus- ages, liver, roux,...
Page 15

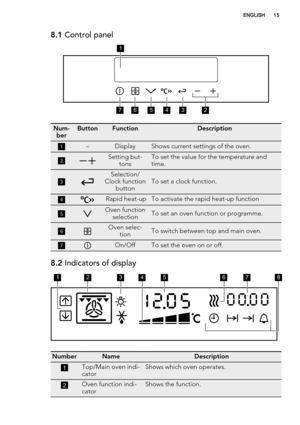

8.1 Control panel 7632 1 54 Num- berButtonFunctionDescription 1–DisplayShows current settings of the oven. 2 Setting but- tonsTo set the value for the temperature and time. 3 Selection/ Clock function buttonTo set a clock function. 4 Rapid heat-upTo activate the rapid heat-up function 5Oven function selectionTo set an oven function or programme. 6Oven selec- tionTo switch between top and main oven. 7On/OffTo set the oven on or off. 8.2 Indicators of display 21564378 NumberNameDescription 1Top/Main oven...
Page 16
NumberNameDescription 3Lamp/Defrost indi- catorShows the Lamp/Defrost function is active. 4Heat indicatorShows the heat setting. 5Temperature/Clock indicatorShows the temperature and the time in mi- nutes. 6Keep warm indica- torShows that keep warm function is active. 7Cooking time/End time/Period of op- erationShows the time setting for clock functions. 8Clock function indi- catorTo set the clock function and minute minder. Top oven functions Oven functionApplication Conventional Cook- ingTo bake and...
Page 17
Oven functionApplication Thermal GrillTo roast larger joints of meat or poultry on one shelf position. To brown. Dual Circuit GrillTo grill flat food in large quantities. To toast bread. Keep WarmTo keep food warm. DryingTo dry food. DefrostTo defrost frozen food. LightTo light up the oven interior. 8.3 Activating and deactivating the oven Press the on/off button to activate or deactivate the oven. 8.4 Selecting an oven 1.To activate the appliance, press the On/Off button. 2.Press the button again...
Page 18
1.Set an oven function. 2.Use the Rapid heat-up button . When the oven has the set tempera- ture, the bars of the heat indicator come up and an acoustic signal sounds. The oven continues to heat with the set oven function and tem- perature. 3.Put the food in the oven. 8.10 Cooling fan When the appliance operates, the cool- ing fan activates automatically to keep the surfaces of the appliance cool. If you deactivate the appliance, the cooling fan continues to operate until the tempera- ture in the...
Page 19
8.14 Grilling set The grilling set includes the roasting pan grid and the deep roasting pan.You can use the roasting pan grid in two positions: turned up or down. To roast larger pieces of meat or poul- try on one level: 1.Put the roasting pan grid in the deep roasting pan. The supports of the roasting pan grid must point up. 2.Put the deep roasting pan in the ap- pliance and on the necessary shelf level. To grill flat dishes in large quantities and to toast: 1.Put the roasting pan grid in the deep...
Page 20
3.Use or to set the necessary time. When the time is completed, an acoustic signal sounds for 2 minutes, and “00.00” and the related function indicator flash. The appliance deacti- vates. 4.Press a button to stop the acoustic signal. With Minute Minder , you must activate the oven to set the clock function. With Duration and End , the oven deactivates automati- cally. You must set the oven func- tion and the temperature first be- fore you can set the clock func- tion. 9.2 Heat+Hold (if applicable)...
