AEG Integrated refrigerator SKS58240F0 User Manual
Here you can view all the pages of manual AEG Integrated refrigerator SKS58240F0 User Manual. The AEG manuals for Refrigerator are available online for free. You can easily download all the documents as PDF.
Page 11
Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour. Once a year remove the ventilation grill at the base of the appliance and clean the air chan- nels with a vacuum cleaner. This operation will improve the performance of the appliance and save electricity consumption. CAUTION! Take care of not to damage the cooling...
Page 12
2. Remove any stored food, wrap it in several layers of newspaper and put it in a cool place. 3. Open the door. 4. When defrosting is completed, dry the interior thoroughly. 5. Switch on the appliance. 6. Set the temperature regulator to obtain the maximum coldness and run the appliance for two or three hours using this setting. 7. Reload the previously removed food into the compartment. WARNING! Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. Do not use a...

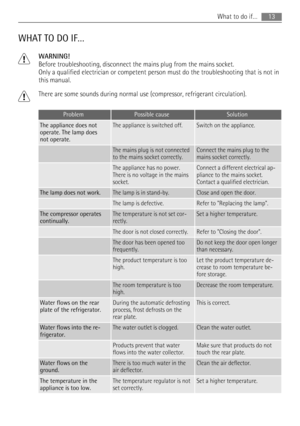

Page 13
WHAT TO DO IF… WARNING! Before troubleshooting, disconnect the mains plug from the mains socket. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual. There are some sounds during normal use (compressor, refrigerant circulation). ProblemPossible causeSolution The appliance does not operate. The lamp does not operate.The appliance is switched off.Switch on the appliance. The mains plug is not connected to the mains socket correctly.Connect the mains plug...
Page 14
ProblemPossible causeSolution The temperature in the appliance is too high.The temperature regulator is not set correctly.Set a lower temperature. The door is not closed correctly.Refer to "Closing the door". The product temperature is too high.Let the product temperature de- crease to room temperature be- fore storage. Many products are stored at the same time.Store less products at the same time. The temperature in the re frigerator is too high.There is no cold air circulation in the...
Page 15
TECHNICAL DATA Dimension Height815 mm Width596 mm Depth550 mm Rising Time 13 h Voltage 230240 V Frequency 50 Hz The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label. INSTALLATION WARNING! Read the "Safety Information" carefully for your safety and correct operation of the appli- ance before installing the appliance. Positioning This appliance can be installed in a dry, well ventilated indoor (garage or cellar)...

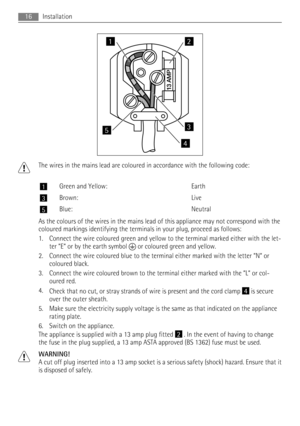

Page 16
12 3 4 5 The wires in the mains lead are coloured in accordance with the following code: 1Green and Yellow: Earth 3Brown: Live 5Blue: Neutral As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: 1. Connect the wire coloured green and yellow to the terminal marked either with the let- ter “E“ or by the earth symbol or coloured green and yellow. 2. Connect the wire coloured blue to the...

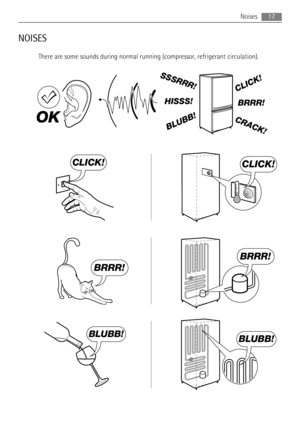

Page 17
NOISES There are some sounds during normal running (compressor, refrigerant circulation). BRRR! HISSS! CLICK! BLUBB! CRACK! SSSRRR! OK CLICK!CLICK! BRRR! BRRR! BLUBB!BLUBB! Noises17

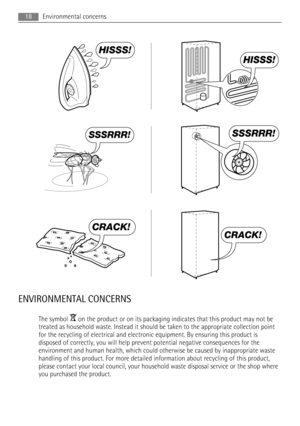

Page 18
HISSS! HISSS! SSSRRR!SSSRRR! CRACK! CRACK! ENVIRONMENTAL CONCERNS The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling...
