AEG Lavamat 1620 Information Manual

21
Washing cycle complete/Removing the washing
At the end of the programme PLEASE TAKE OUT THE CLOTHES appears
in the display. As soon as the
§ symbol appears, the door can be
opened.
1.Open the door using the handle.
2.Remove the washing.
3.Switch off the appliance.
If Rinse Hold has been selected:
 1.Press the START key.
 The display automatically
changes to the first pro-
gramme page. Depending
upon the programme that
has been running either SPIN
or SHORT SPIN is highlight-
ed.
If spinning or...

22

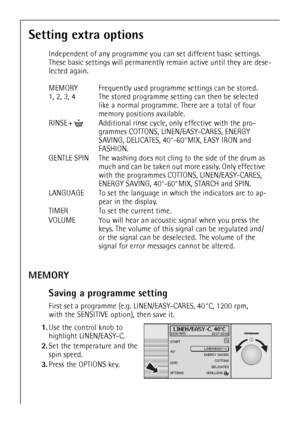

Setting extra options
Independent of any programme you can set different basic settings.
These basic settings will permanently remain active until they are dese-
lected again.
MEMORY
Saving a programme setting
First set a programme (e.g. LINEN/EASY-CARES, 40 °C, 1200 rpm,
with the SENSITIVE option), then save it.
 1.Use the control knob to
highlight LINEN/EASY-C.
2.Set the temperature and the
spin speed.
3.Press the OPTIONS key.  MEMORY
1, 2, 3, 4Frequently used programme settings can be stored....

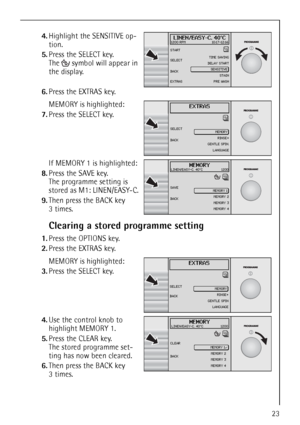

23
 4.Highlight the SENSITIVE op-
tion.
5.Press the SELECT key.
The   symbol will appear in
the display.
6.Press the EXTRAS key.
 MEMORY is highlighted:
7.Press the SELECT key.

If MEMORY 1 is highlighted:
8.Press the SAVE key.
The programme setting is
stored as M1: LINEN/EASY-C.
9.Then press the BACK key
3 times.
Clearing a stored programme setting
1.Press the OPTIONS key.
2.Press the EXTRAS key.
 MEMORY is highlighted:
3.Press the SELECT key.
 4.Use the control knob to
highlight MEMORY 1.
5.Press...

24

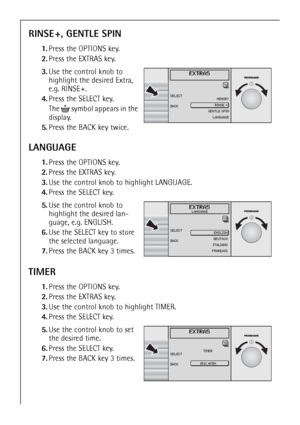

RINSE +, GENTLE SPIN
1.Press the OPTIONS key.
2.Press the EXTRAS key.
 3.Use the control knob to
highlight the desired Extra,
e.g. RINSE +.
4.Press the SELECT key.
The   symbol appears in the
display.
5.Press the BACK key twice.
LANGUAGE
1.Press the OPTIONS key.
2.Press the EXTRAS key.
3.Use the control knob to highlight LANGUAGE.
4.Press the SELECT key.

5.Use the control knob to
highlight the desired lan-
guage, e.g. ENGLISH.
6.Use the SELECT key to store
the selected language.
7.Press the...

25

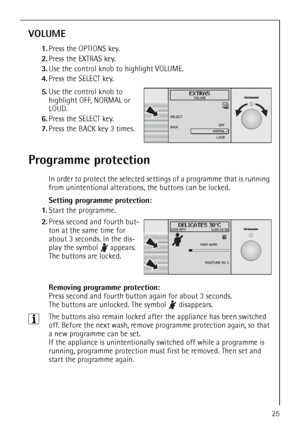

VOLUME
1.Press the OPTIONS key.
2.Press the EXTRAS key.
3.Use the control knob to highlight VOLUME.
4.Press the SELECT key.

5.Use the control knob to
highlight OFF, NORMAL or
LOUD.
6.Press the SELECT key.
7.Press the BACK key 3 times.
Programme protection
In order to protect the selected settings of a programme that is running
from unintentional alterations, the buttons can be locked.
Setting programme protection:
1.Start the programme.
 2.Press second and fourth but-
ton at the same time for...

26

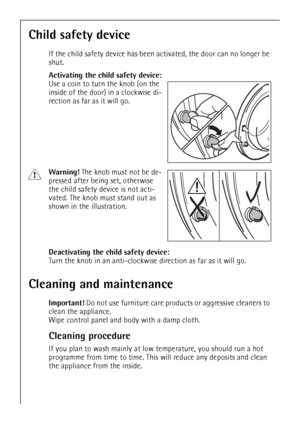

Child safety device
If the child safety device has been activated, the door can no longer be
shut.
Activating the child safety device:
Use a coin to turn the knob (on the
inside of the door) in a clockwise di-
rection as far as it will go.
1Warning! The knob must not be de-
pressed after being set, otherwise
the child safety device is not acti-
vated. The knob must stand out as
shown in the illustration.
Deactivating the child safety device:
Turn the knob in an anti-clockwise direction as far as...

27

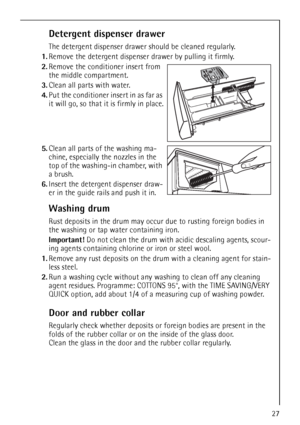

Detergent dispenser drawer
The detergent dispenser drawer should be cleaned regularly.
1.Remove the detergent dispenser drawer by pulling it firmly.
2.Remove the conditioner insert from
the middle compartment.
3.Clean all parts with water.
4.Put the conditioner insert in as far as
it will go, so that it is firmly in place.
5.Clean all parts of the washing ma-
chine, especially the nozzles in the
top of the washing-in chamber, with
a brush.
6.Insert the detergent dispenser draw-
er in the guide...

28

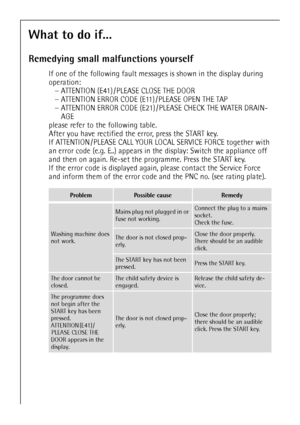

What to do if...
Remedying small malfunctions yourself
If one of the following fault messages is shown in the display during
operation:
–ATTENTION (E41) / PLEASE CLOSE THE DOOR
–ATTENTION ERROR CODE (E11) / PLEASE OPEN THE TAP
–ATTENTION ERROR CODE (E21) / PLEASE CHECK THE WATER DRAIN-
AGE
please refer to the following table.
After you have rectified the error, press the START key.
If ATTENTION / PLEASE CALL YOUR LOCAL SERVICE FORCE together with
an error code (e.g. E..) appears in the display:...

29

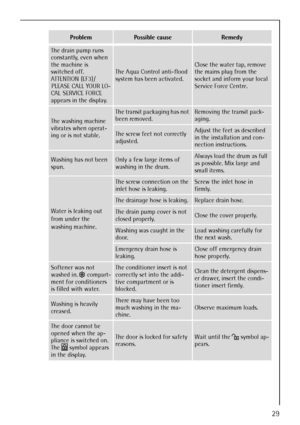

The drain pump runs
constantly, even when
the machine is
switched off.
ATTENTION (EF3) /
PLEASE CALL YOUR LO-
CAL SERVICE FORCE
appears in the display.
The Aqua Control anti-flood
system has been activated.Close the water tap, remove
the mains plug from the
socket and inform your local
Service Force Centre.
The washing machine
vibrates when operat-
ing or is not stable.
The transit packaging has not
been removed.Removing the transit pack-
aging.
The screw feet not correctly
adjusted.Adjust...

30

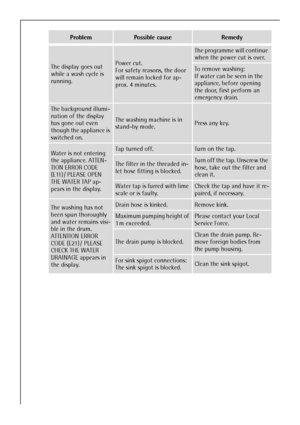

The display goes out
while a wash cycle is
running.Power cut.
For safety reasons, the door
will remain locked for ap-
prox. 4 minutes.
The programme will continue
when the power cut is over.
To remove washing:
If water can be seen in the
appliance, before opening
the door, first perform an
emergency drain.
The background illumi-
nation of the display
has gone out even
though the appliance is
switched on.
The washing machine is in
stand-by mode.Press any key.
Water is not entering
the...
