AEG Lavamat 60060 Tl User Manual

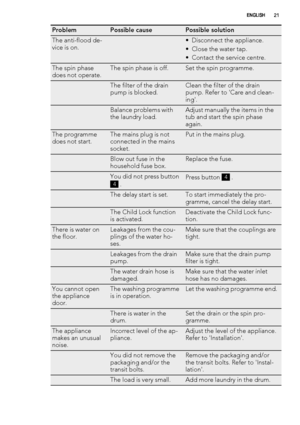

ProblemPossible causePossible solution
The anti-flood de-
vice is on. • Disconnect the appliance.
• Close the water tap.
• Contact the service centre.
The spin phase
does not operate.The spin phase is off.Set the spin programme.
 The filter of the drain
pump is blocked.Clean the filter of the drain
pump. Refer to 'Care and clean-
ing'.
 Balance problems with
the laundry load.Adjust manually the items in the
tub and start the spin phase
again.
The programme
does not start.The mains plug is not...

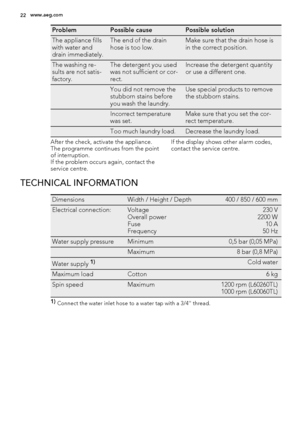

ProblemPossible causePossible solution
The appliance fills
with water and
drain immediately.The end of the drain
hose is too low.Make sure that the drain hose is
in the correct position.
The washing re-
sults are not satis-
factory.The detergent you used
was not sufficient or cor-
rect.Increase the detergent quantity
or use a different one.
 You did not remove the
stubborn stains before
you wash the laundry.Use special products to remove
the stubborn stains.
 Incorrect temperature
was set.Make sure that...

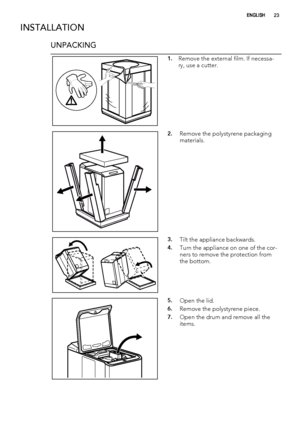

INSTALLATION
UNPACKING
1.Remove the external film. If necessa-
ry, use a cutter.
2.Remove the polystyrene packaging
materials.
3.Tilt the appliance backwards.
4.Turn the appliance on one of the cor-
ners to remove the protection from
the bottom.
5.Open the lid.
6.Remove the polystyrene piece.
7.Open the drum and remove all the
items.
ENGLISH23

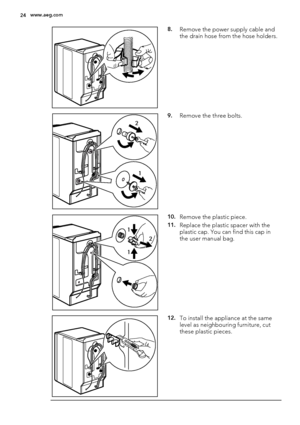

8.Remove the power supply cable and
the drain hose from the hose holders.
2
1
9.Remove the three bolts.
1
12
10.Remove the plastic piece.
11.Replace the plastic spacer with the
plastic cap. You can find this cap in
the user manual bag.
12.To install the appliance at the same
level as neighbouring furniture, cut
these plastic pieces.
24www.aeg.com

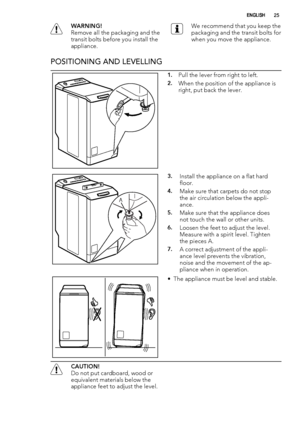

WARNING!
Remove all the packaging and the
transit bolts before you install the
appliance.We recommend that you keep the
packaging and the transit bolts for
when you move the appliance.
POSITIONING AND LEVELLING
1.Pull the lever from right to left.
2.When the position of the appliance is
right, put back the lever.
A
3.Install the appliance on a flat hard
floor.
4.Make sure that carpets do not stop
the air circulation below the appli-
ance.
5.Make sure that the appliance does
not touch the wall or other...

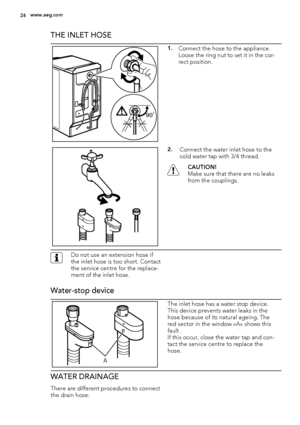

THE INLET HOSE
90˚
1.Connect the hose to the appliance.
Loose the ring nut to set it in the cor-
rect position.
2.Connect the water inlet hose to the
cold water tap with 3/4 thread.
CAUTION!
Make sure that there are no leaks
from the couplings.
Do not use an extension hose if
the inlet hose is too short. Contact
the service centre for the replace-
ment of the inlet hose.
Water-stop device
A
The inlet hose has a water stop device.
This device prevents water leaks in the
hose because of its natural ageing....

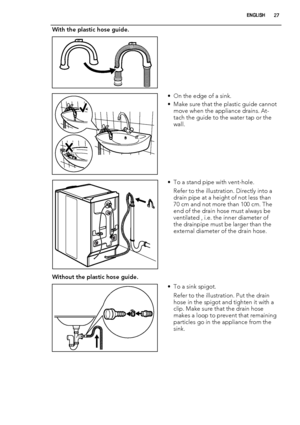

With the plastic hose guide.

• On the edge of a sink.
• Make sure that the plastic guide cannot
move when the appliance drains. At-
tach the guide to the water tap or the
wall.
• To a stand pipe with vent-hole.
Refer to the illustration. Directly into a
drain pipe at a height of not less than
70 cm and not more than 100 cm. The
end of the drain hose must always be
ventilated , i.e. the inner diameter of
the drainpipe must be larger than the
external diameter of the drain hose.
Without the plastic hose...

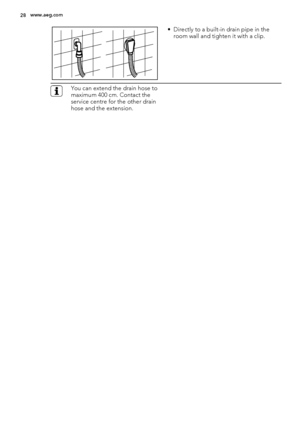

• Directly to a built-in drain pipe in the
room wall and tighten it with a clip.
You can extend the drain hose to
maximum 400 cm. Contact the
service centre for the other drain
hose and the extension.
