AEG S 75628 Sk User Manual

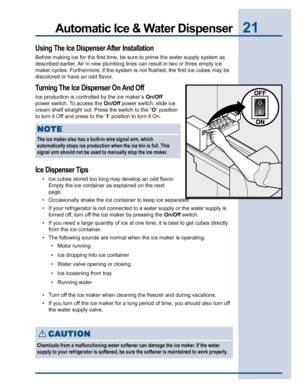

21Automatic Ice & Water Dispenser
Using The Ice Dispenser After Installation
Before making ice for the first time, be sure to prime the water supply system as
described earlier. Air in new plumbing lines can result in two or three empty ice
maker cycles. Furthermore, if the system is not flushed, the first ice cubes may be
discolored or have an odd flavor.
Turning The Ice Dispenser On And Off
Ice production is controlled by the ice maker’s On/Off
power switch.
 To access the On/Off power switch, slide...

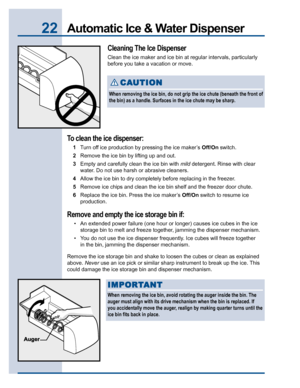

22Automatic Ice & Water Dispenser
Cleaning The Ice Dispenser
Clean the ice maker and ice bin at regular intervals, particularly
before you take a vacation or move.
To clean the ice dispenser:
1Turn off ice production by pressing the ice maker’s Off/On switch.
2Remove the ice bin by lifting up and out.
3Empty and carefully clean the ice bin with mild detergent. Rinse with clear
water. Do not use harsh or abrasive cleaners.
4Allow the ice bin to dry completely before replacing in the freezer.
5Remove ice...

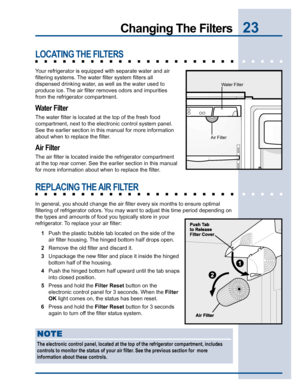

23Changing The Filters
LOCATING THE FILTERS
Your refrigerator is equipped with separate water and air
filtering systems. The water filter system filters all
dispensed drinking water, as well as the water used to
produce ice. The air filter removes odors and impurities
from the refrigerator compartment.
Water Filter
The water filter is located at the top of the fresh food
compartment, next to the electronic control system panel.
See the earlier section in this manual for more information
about when to...

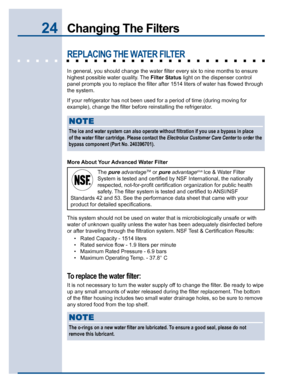

24
NO NONO NO
NO
TE TETE TE
TE
The o-rings on a new water filter are lubricated. To ensure a good seal, please do not
remove this lubricant.
Changing The Filters
REPLACING THE WATER FILTER
In general, you should change the water filter every six to nine months to ensure
highest possible water quality. The Filter Status light on the dispenser control
panel prompts you to replace the filter after 1514 liters of water has flowed through
the system.
If your refrigerator has not been used for a period of time...

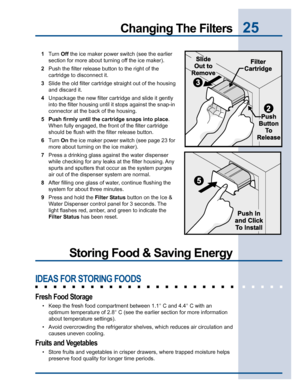

25Changing The Filters
1Turn Off the ice maker power switch (see the earlier
section for more about turning off the ice maker).
2Push the filter release button to the right of the
cartridge to disconnect it.
3Slide the old filter cartridge straight out of the housing
and discard it.
4Unpackage the new filter cartridge and slide it gently
into the filter housing until it stops against the snap-in
connector at the back of the housing.
5 Push firmly until the cartridge snaps into place.
When fully engaged,...

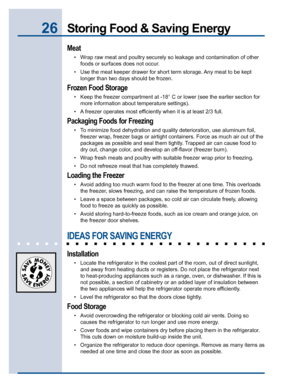

26Storing Food & Saving Energy
Meat
• Wrap raw meat and poultry securely so leakage and contamination of other
foods or surfaces does not occur.
• Use the meat keeper drawer for short term storage. Any meat to be kept
longer than two days should be frozen.
Frozen Food Storage
• Keep the freezer compartment at -18° C or lower (see the earlier section for
more information about temperature settings).
• A freezer operates most efficiently when it is at least 2/3 full.
Packaging Foods for Freezing
• To...

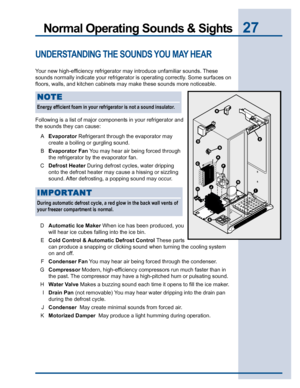

27Normal Operating Sounds & Sights
UNDERSTANDING THE SOUNDS YOU MAY HEAR
Your new high-efficiency refrigerator may introduce unfamiliar sounds. These
sounds normally indicate your refrigerator is operating correctly. Some surfaces on
floors, walls, and kitchen cabinets may make these sounds more noticeable.
Following is a list of major components in your refrigerator and
the sounds they can cause:
AEvaporator Refrigerant through the evaporator may
create a boiling or gurgling sound.
BEvaporator Fan You...

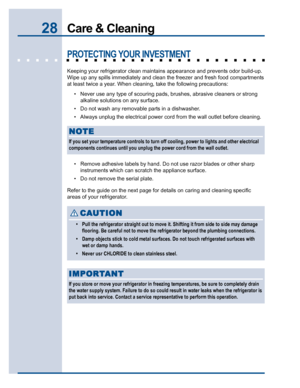

28Care & Cleaning
PROTECTING YOUR INVESTMENT
Keeping your refrigerator clean maintains appearance and prevents odor build-up.
Wipe up any spills immediately and clean the freezer and fresh food compartments
at least twice a year. When cleaning, take the following precautions:
• Never use any type of scouring pads, brushes, abrasive cleaners or strong
alkaline solutions on any surface.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before...

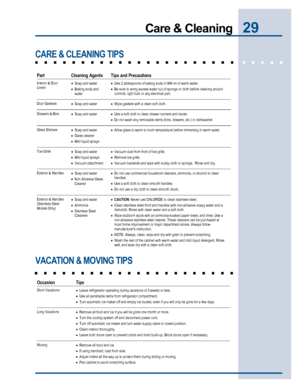

29Care & Cleaning
CARE & CLEANING TIPS
VACATION & MOVING TIPS

Part  Cleaning Agents  Tips and Precautions
Interior & Door
Liners • Soap and water
• Baking soda and
water • Use 2 tablespoons of baking soda in 946 ml of warm water.
• Be sure to wring excess water out of sponge or cloth before cleaning around
controls, light bulb or any electrical part.

Door Gaskets
• Soap and water • Wipe gaskets with a clean soft cloth.
Drawers & Bins
• Soap and water • Use a soft cloth to clean...

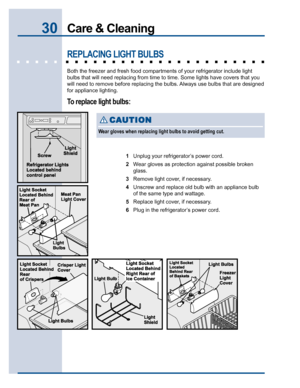

30Care & Cleaning
REPLACING LIGHT BULBS
Both the freezer and fresh food compartments of your refrigerator include light
bulbs that will need replacing from time to time. Some lights have covers that you
will need to remove before replacing the bulbs. Always use bulbs that are designed
for appliance lighting.
To replace light bulbs:
1Unplug your refrigerator’s power cord.
2Wear gloves as protection against possible broken
glass.
3Remove light cover, if necessary.
4Unscrew and replace old bulb with an...
