AEG S 80368 Kg User Manual

S80368KG
User manual Fridge Freezer


Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe place. And please pass it to any future owner of the
appliance.
We wish you much joy with your new appliance.
CONTENTS
SAFETY INFORMATION  2
Children and vulnerable people safety   3...

tions and make sure that they remain with the appliance if it is moved or sold, so that ev-
eryone using it through its life will be properly informed on appliance use and safety.
For the safety of life and property keep the precautions of these users instructions as the
manufacturer is not responsible for damages caused by omission.
Children and vulnerable people safety
• This appliance is not intended for use by persons (including children) with reduced physi-
cal, sensory or mental capabilities, or...

4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of elec-
tric shock or fire.
6.
You must not operate the appliance without the lamp cover
1) of interior lighting.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/
wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight....

• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
•
Connect to potable water supply only.
4)

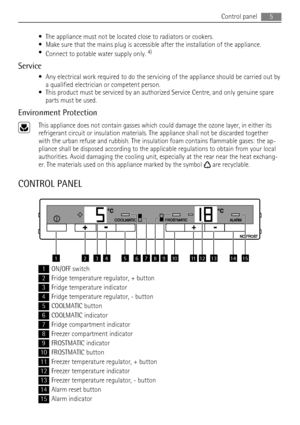

Service
• Any electrical work required to do the servicing of the appliance should be carried out by
a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare
parts must be used.
Environment Protection
This appliance does not contain...

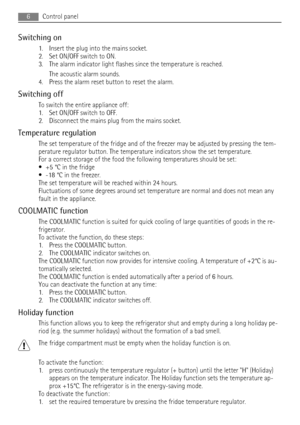

Switching on
1. Insert the plug into the mains socket.
2. Set ON/OFF switch to ON.
3. The alarm indicator light flashes since the temperature is reached.
The acoustic alarm sounds.
4. Press the alarm reset button to reset the alarm.
Switching off
To switch the entire appliance off:
1. Set ON/OFF switch to OFF.
2. Disconnect the mains plug from the mains socket.
Temperature regulation
The set temperature of the fridge and of the freezer may be adjusted by pressing the tem-
perature regulator button. The...

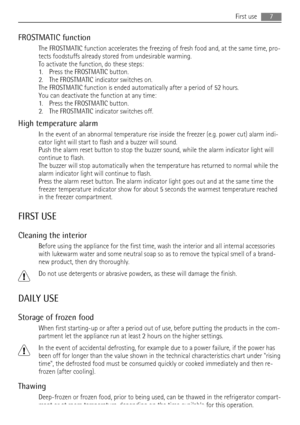

FROSTMATIC function
The FROSTMATIC function accelerates the freezing of fresh food and, at the same time, pro-
tects foodstuffs already stored from undesirable warming.
To activate the function, do these steps:
1. Press the FROSTMATIC button.
2. The FROSTMATIC indicator switches on.
The FROSTMATIC function is ended automatically after a period of 52 hours.
You can deactivate the function at any time:
1. Press the FROSTMATIC button.
2. The FROSTMATIC indicator switches off.
High temperature alarm
In the...

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking
will take longer.

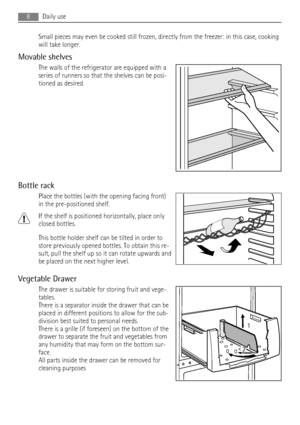

Movable shelves
The walls of the refrigerator are equipped with a
series of runners so that the shelves can be posi-
tioned as desired.
Bottle rack
Place the bottles (with the opening facing front)
in the pre-positioned shelf.
If the shelf is positioned horizontally, place only
closed bottles.
This bottle holder shelf can be tilted in order to
store previously opened bottles. To obtain this...

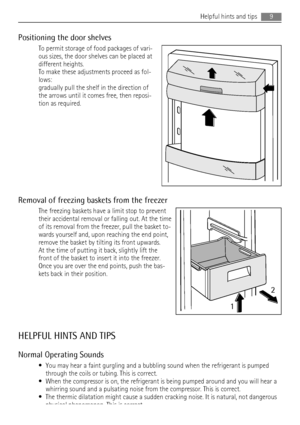

Positioning the door shelves
To permit storage of food packages of vari-
ous sizes, the door shelves can be placed at
different heights.
To make these adjustments proceed as fol-
lows:
gradually pull the shelf in the direction of
the arrows until it comes free, then reposi-
tion as required.
Removal of freezing baskets from the freezer
The freezing baskets have a limit stop to prevent
their accidental removal or falling out. At the time
of its removal from the freezer, pull the basket to-
wards yourself...

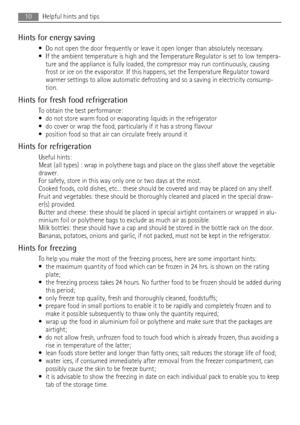

Hints for energy saving
• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low tempera-
ture and the appliance is fully loaded, the compressor may run continuously, causing
frost or ice on the evaporator. If this happens, set the Temperature Regulator toward
warmer settings to allow automatic defrosting and so a saving in electricity consump-
tion.
Hints for fresh food refrigeration
To obtain...
