AEG Sk 98800 4i Operating Instructions

SANTO
Einbau - KŸhlschrŠnke
Built-in - Refrigerators
RŽfrigŽrateurs encastrables
Gebrauchsanweisung
Operating instructions
Notice dÕutilisation


24
Dear customer,
Before placing your new refrigerator/freezer into operation please read
these operating instructions carefully. They contain important
information for safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass
them on to possible new owners of the appliance.
These operating instructions are for use with several technically com-
parable models with varying accessories. Please observe the notes
which apply to your model....

25
Contents
Safety  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Disposal   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Appliance Packaging Information  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Disposal of old Appliances   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Remove transport packaging   . . . . . . . . . . . . . . . . . . . . ....

26
Safety
The safety aspects of our refrigerators comply with accepted technical
standards and the German Appliance Safety Law. Nevertheless, we con-
sider it our obligation to make you aware of the following safety
information:
Intended use
¥ The refrigerator is intended for use in the home. It is suitable for the
cooling food. If the appliance is used for purposes other than those
intended or used incorrectly, no liability can be accepted by the
manufacturer for any damage that may be caused.
¥...

Safety
27

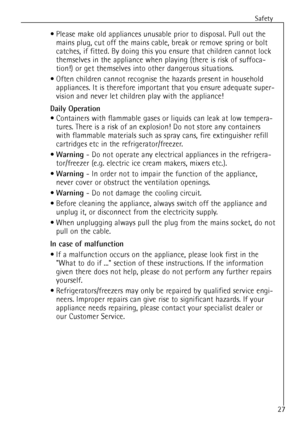

¥ Please make old appliances unusable prior to disposal. Pull out the
mains plug, cut off the mains cable, break or remove spring or bolt
catches, if fitted. By doing this you ensure that children cannot lock
themselves in the appliance when playing (there is risk of suffoca-
tion!) or get themselves into other dangerous situations.
¥ Often children cannot recognise the hazards present in household
appliances. It is therefore important that you ensure adequate super-
vision and never let...

28

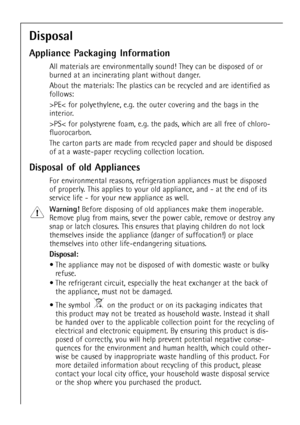

Disposal
Appliance Packaging Information
All materials are environmentally sound! They can be disposed of or
burned at an incinerating plant without danger.
About the materials: The plastics can be recycled and are identified as
follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the
interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chloro-
fluorocarbon.
The carton parts are made from recycled paper and should be disposed
of at a waste-paper recycling...

29

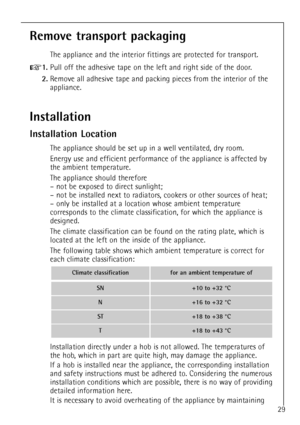

Installation
Installation Location
The appliance should be set up in a well ventilated, dry room.
Energy use and efficient performance of the appliance is affected by
the ambient temperature.
The appliance should therefore
Ð not be exposed to direct sunlight;
Ð not be installed next to radiators, cookers or other sources of heat;
Ð only be installed at a location whose ambient temperature
corresponds to the climate classification, for which the appliance is
designed.
The climate classification can be...

Installation
30
adequate distances from heat sources and by the use of a suitable
thermal insulation plate. Proper ventilation of the appliance must also
be ensured.

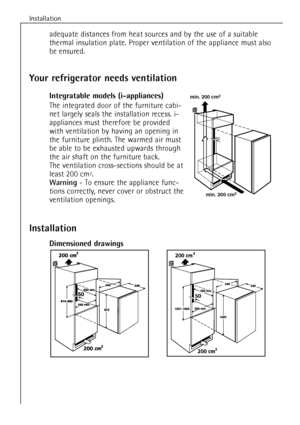

Your refrigerator needs ventilation
Integratable models (i-appliances)
The integrated door of the furniture cabi-
net largely seals the installation recess. i-
appliances must therefore be provided
with ventilation by having an opening in
the furniture plinth. The warmed air must
be able to be exhausted upwards through
the air shaft on the...

Installation
31

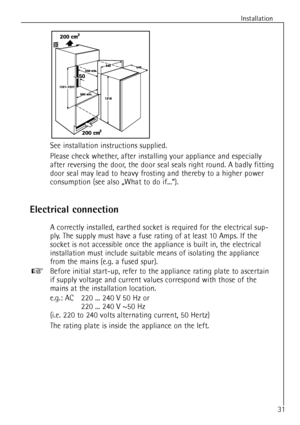

See installation instructions supplied.
Please check whether, after installing your appliance and especially
after reversing the door, the door seal seals right round. A badly fitting
door seal may lead to heavy frosting and thereby to a higher power
consumption (see also ãWhat to do if...Ò).
Electrical connection
A correctly installed, earthed socket is required for the electrical sup-
ply. The supply must have a fuse rating of at least 10 Amps. If the
socket is not accessible once the...

32

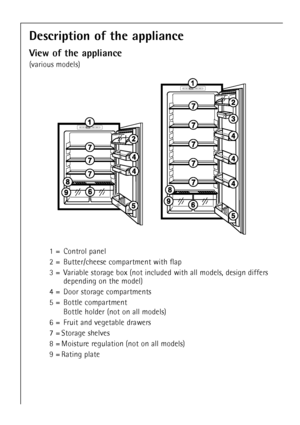

Description of the appliance
View of the appliance
(various models)
1 = Control panel
2 = Butter/cheese compartment with flap
3 = Variable storage box (not included with all models, design differs
depending on the model)
4 = Door storage compartments
5 = Bottle compartment
Bottle holder (not on all models)
6 = Fruit and vegetable drawers
7 = Storage shelves
8 = Moisture regulation (not on all models)
9 = Rating plate
