AEG Su 86000 4i Operating And Installation Instructions

21

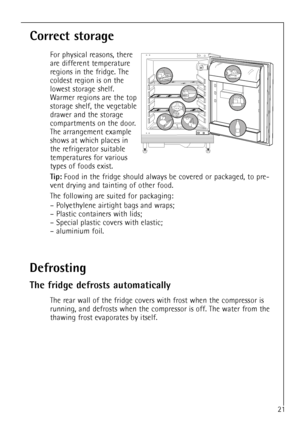

Correct storage
For physical reasons, there
are different temperature
regions in the fridge. The
coldest region is on the
lowest storage shelf.
Warmer regions are the top
storage shelf, the vegetable
drawer and the storage
compartments on the door.
The arrangement example
shows at which places in
the refrigerator suitable
temperatures for various
types of foods exist.
Tip:Food in the fridge should always be covered or packaged, to pre-
vent drying and tainting of other food.
The following are suited...

22

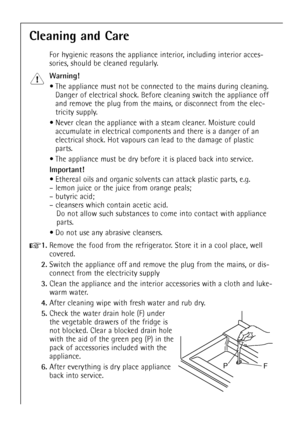

Cleaning and Care
For hygienic reasons the appliance interior, including interior acces-
sories, should be cleaned regularly.
Warning!
¥ The appliance must not be connected to the mains during cleaning.
Danger of electrical shock. Before cleaning switch the appliance off
and remove the plug from the mains, or disconnect from the elec-
tricity supply.
¥ Never clean the appliance with a steam cleaner. Moisture could
accumulate in electrical components and there is a danger of an
electrical shock. Hot...

23

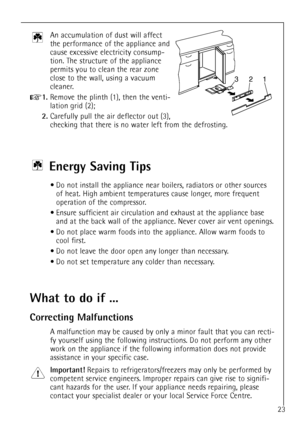

An accumulation of dust will affect
the performance of the appliance and
cause excessive electricity consump-
tion. The structure of the appliance
permits you to clean the rear zone
close to the wall, using a vacuum
cleaner.
+1.Remove the plinth (1), then the venti-
lation grid (2);
2.Carefully pull the air deflector out (3),
checking that there is no water left from the defrosting.
321
Energy Saving Tips
¥ Do not install the appliance near boilers, radiators or other sources
of heat. High ambient...

24

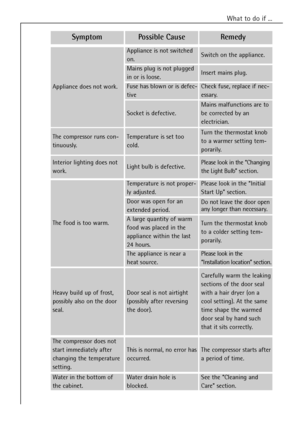

What to do if ...
The compressor does not
start immediately after
changing the temperature
setting.
This is normal, no error has
occurred.
Water in the bottom of
the cabinet.Water drain hole is
blocked.See the ÒCleaning and
CareÓ section.
The compressor starts after
a period of time.
SymptomPossible CauseRemedy
Appliance does not work.
Appliance is not switched
on.
Mains plug is not plugged
in or is loose.
Fuse has blown or is defec-
tive
Socket is defective.
Mains malfunctions are to
be corrected by...

25
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured
in accordance with the appropriate standards. The necessary measures
in accordance with appliance safety legislation regulations (GSG), acci-
dent prevention regulations for refrigeration appliances (VBG 20) and
the regulations of the German Society of Electrical Engineers (VDE)

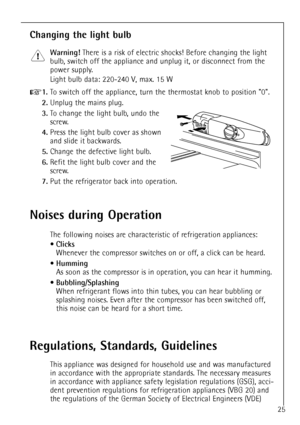

Changing the light bulb
Warning!There is a risk of electric shocks! Before changing the light
bulb, switch off the appliance...

26

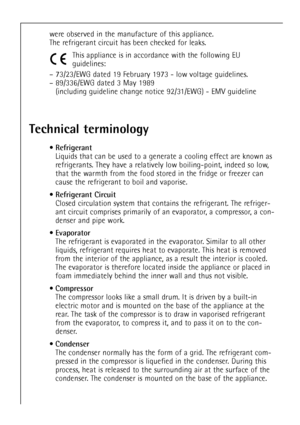

were observed in the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU
guidelines:
Ð 73/23/EWG dated 19 February 1973 - low voltage guidelines.
Ð 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
Technical terminology
¥Refrigerant
Liquids that can be used to a generate a cooling effect are known as
refrigerants. They have a relatively low boiling-point, indeed so low,
that the...

AEG HausgerŠte GmbH
Postfach 1036
D-90327 NŸrnberg
http://www.aeg.hausgeraete.de
© Electrolux plc 2005
2222 682-17 -00- 0405 Subject to change without notice
