AEG Sz 91200 4i Operating Instructions

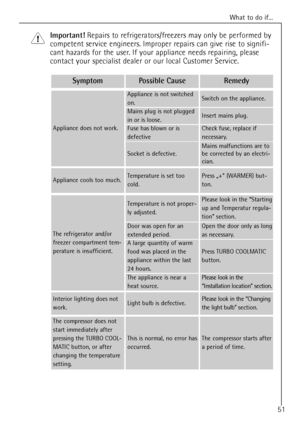

What to do if...
51
Important!Repairs to refrigerators/freezers may only be performed by
competent service engineers. Improper repairs can give rise to signifi-
cant hazards for the user. If your appliance needs repairing, please
contact your specialist dealer or our local Customer Service.
Symptom
Appliance does not work.
Possible Cause
Appliance is not switched
on.
Mains plug is not plugged
in or is loose.
Fuse has blown or is
defective
Socket is defective.
Mains malfunctions are to
be corrected by an...

52

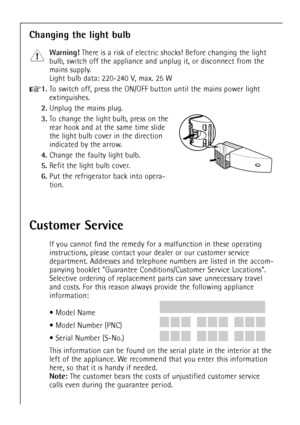

Changing the light bulb
Warning!There is a risk of electric shocks! Before changing the light
bulb, switch off the appliance and unplug it, or disconnect from the
mains supply.
Light bulb data: 220-240 V, max. 25 W
+1.To switch off, press the ON/OFF button until the mains power light
extinguishes.
2.Unplug the mains plug.
3.To change the light bulb, press on the
rear hook and at the same time slide
the light bulb cover in the direction
indicated by the arrow.
4.Change the faulty light bulb.
5.Refit...

53

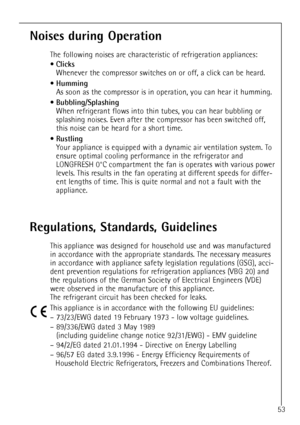

Noises during Operation
The following noises are characteristic of refrigeration appliances:
¥
Clicks
Whenever the compressor switches on or off, a click can be heard.
¥
Humming
As soon as the compressor is in operation, you can hear it humming.
¥
Bubbling/Splashing
When refrigerant flows into thin tubes, you can hear bubbling or
splashing noises. Even after the compressor has been switched off,
this noise can be heard for a short time.
¥
Rustling
Your appliance is equipped with a dynamic air...

54

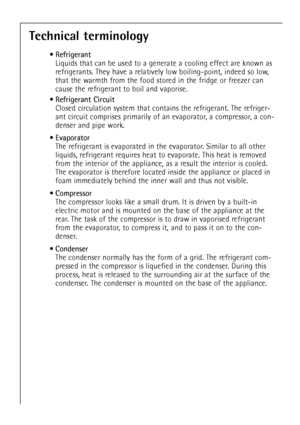

Technical terminology
¥ Refrigerant
Liquids that can be used to a generate a cooling effect are known as
refrigerants. They have a relatively low boiling-point, indeed so low,
that the warmth from the food stored in the fridge or freezer can
cause the refrigerant to boil and vaporise.
¥ Refrigerant Circuit
Closed circulation system that contains the refrigerant. The refriger-
ant circuit comprises primarily of an evaporator, a compressor, a con-
denser and pipe work.
¥ Evaporator
The refrigerant is...

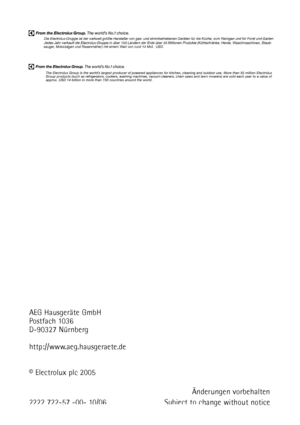

AEG HausgerŠte GmbH
