Hue
This feature can shift color of video image to green or purple. This is used to adjust the desired flesh tone color.
Decrease the value of the Hue, increases the green shade of the video image.
Increase the value of the Hue, increases the purple shade of the video image.
NOTE:  Hue adjustment is available only for video input.
Saturation
This feature can adjust the color saturation of the video image.
Decrease the value of the Saturation, increases the monochrome appearance of the...


Wide Mode
Adjust the image ratio as Fill, Aspect, or 4:3.

Sharpness
This feature can make the image look sharper or softer.

Dynamic Contrast
    Dynamic Contrast provides  higher contrast if you choose Game preset, Movie Preset, and Nature Preset.
NOTE:   Brightness control is disabled while in Dynamic Contrast mode and will be grayed out.

Response Time This function can improve the response time.

Reset Display
Settings Reset the image to the original factory setting.
Audio...


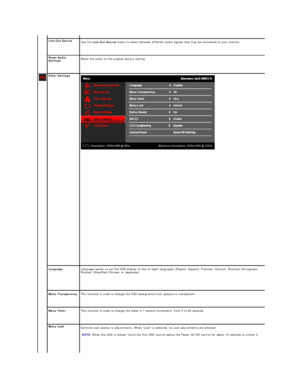

Line Out Source
Use the  Line Out Source  menu to select between different audio signals that may be connected to your monitor.

Reset Audio
Settings Reset the audio to the original factory setting.
Other Settings


Language   Language option to set the OSD display to one of eight languages (English, Espanol, Francais, Deutsch, Brazilian Portuguese,
Russian, Simplified Chinese, or Japanese).

Menu Transparency   This function is used to change the OSD background from opaque to transparent....


Button Sound   This function is used to turn on/off the button sound.

DDC/CI
DDC/CI (Display Data Channel/Command Interface) allows your monitor parameters (brightness, color balance, etc.) to be adjustable
using software on your computer.

Back to Contents Page
Setting Up Your Monitor

Setting the display resolution to 1920x1080(maximum)
For maximum display performance with the Microsoft ®
  Windows ®
  operating systems, set the display resolution to 1920x1080 pixels by performing the
following steps:
Microsoft   Windows   XP:
1. Right - click on the desktop and click  Properties .
2. Select the  Settings  tab.
3. Move the slider - bar to the right by pressing and holding the left mouse - button and adjust the screen...
