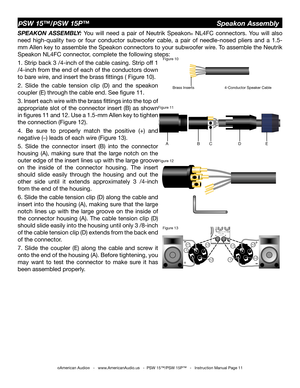

Page 11
©American Audio® - www.AmericanAudio.us - PSW 15™/PSW 15P™ - Instruction Manual Page 11 SPEAKON ASSEMBLY: You will need a pair of Neutrik Speakon® NL4FC connectors. You will also need high-quality two or four conductor subwoofer cable, a pair of needle-nosed pliers and a 1.5- mm Allen key to assemble the Speakon connectors to your subwoofer wire. To assemble the Neutrik Speakon NL4FC connector, complete the following steps: 1. Strip back 3 /4-inch of the cable...

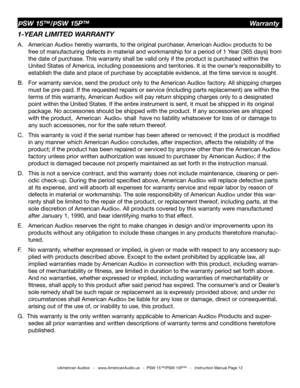

Page 12
©American Audio® - www.AmericanAudio.us - PSW 15™/PSW 15P™ - Instruction Manual Page 12 1-YEAR LIMITED WARRANTY A. American Audio® hereby warrants, to the original purchaser, American Audio® products to be free of manufacturing defects in material and workmanship for a period of 1 Year (365 days) from the date of purchase. This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner’s...

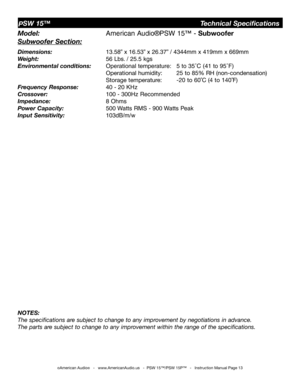

Page 13
©American Audio® - www.AmericanAudio.us - PSW 15™/PSW 15P™ - Instruction Manual Page 13 PSW 15™ Technical Specifications Model: American Audio®PSW 15™ - Subwoofer Subwoofer Section: Dimensions: 13.58” x 16.53” x 26.37” / 4344mm x 419mm x 669mm Weight: 56 Lbs. / 25.5 kgs Environmental conditions: Operational temperature: 5 to 35˚C (41 to 95˚F) Operational humidity: 25 to 85% RH (non-condensation) Storage temperature: -20...

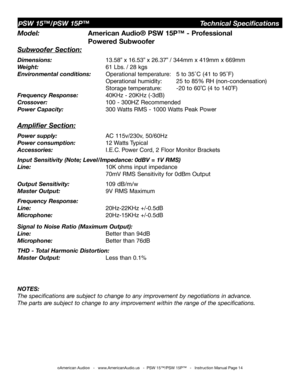

Page 14
©American Audio® - www.AmericanAudio.us - PSW 15™/PSW 15P™ - Instruction Manual Page 14 Model: American Audio® PSW 15P™ - Professional Powered Subwoofer Subwoofer Section: Dimensions: 13.58” x 16.53” x 26.37” / 344mm x 419mm x 669mm Weight: 61 Lbs. / 28 kgs Environmental conditions: Operational temperature: 5 to 35˚C (41 to 95˚F) Operational humidity: 25 to 85% RH (non-condensation) Storage temperature: -20 to 60˚C (4 to 140˚F) Frequency...

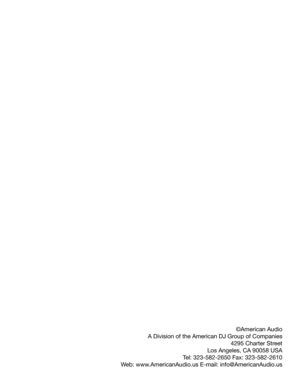

Page 15
©American Audio A Division of the American DJ Group of Companies 4295 Charter Street Los Angeles, CA 90058 USA Tel: 323-582-2650 Fax: 323-582-2610 Web: www.AmericanAudio.us E-mail: [email protected]
