AOC 2436swa User Manual
Here you can view all the pages of manual AOC 2436swa User Manual. The AOC manuals for Monitor are available online for free. You can easily download all the documents as PDF.
Page 21
٢١ | Page 6. Check the Browse my computer for driver software checkbox and click Let me pick from a list of device drivers on my computer. 7. Click on the Have disk... button, then click on the Browse... button and then select the appropriate drive F:\Driver (CD-ROM Drive). 8. Select your monitor model and click on the Next button. 9. Click Close → Close → OK → OK on the following screens displayed in sequence. I_MENU Welcome to “i-Menu” software by AOC. i-Menu makes it easy to...
Page 22

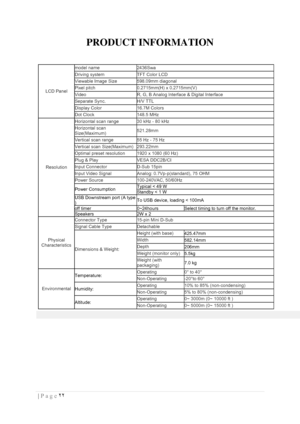

٢٢ | Page PRODUCT INFORMATION LCD Panel model name 2436Swa Driving system TFT Color LCD Viewable Image Size 598.09mm diagonal Pixel pitch 0.2715mm(H) x 0.2715mm(V) Video R, G, B Analog lnterface & Digital Interface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock 148.5 MHz Resolution Horizontal scan range 30 kHz - 80 kHz Horizontal scan Size(Maximum) 521.28mm Vertical scan range 55 Hz - 75 Hz Vertical scan Size(Maximum) 293.22mm Optimal preset resolution...
Page 23
٢٣ | Page Preset Display Modes STAND RESOLUTION HORIZONTAL FREQUENCY(kHZ) VERTICAL FREQUENCY(Hz) VGA 640×480 @60Hz 31.469 59.940 VGA 640×480 @67Hz 35.000 66.667 VGA 640×480 @72Hz 37.861 72.809 VGA 640×480 @75Hz 37.500 75.000 Dos-mode 720×400 @70Hz 31.469 70.087 SVGA 800×600 @56Hz 35.156 56.250 SVGA 800×600 @60Hz 37.879 60.317 SVGA 800×600 @72Hz 48.077 72.188 SVGA 800×600 @75Hz 46.875 75.000 SVGA 832×624 @75Hz 49.725 74.550 XGA 1024×768 @60Hz 48.363...
Page 24
٢۴ | Page PLUG & PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bi-directional data channel based on the I 2C protocol. The host can request EDID information over the DDC2B channel. TROUBLESHOOT Problem & Question Possible...
Page 25
٢۵ | Page ON or OFF after hitting the CAPS LOCK key. Missing one of the primary colors (RED, GREEN, or BLUE) Inspect the monitors video cable and make sure that no pin is damaged. Make sure the monitors video cable is properly connected to the computer. Screen image is not centered or sized properly Adjust H-Position and V-Position or press hot-key (AUTO). Picture has color defects (white does not look white) Adjust RGB color or select desired color temperature....
