AOC E2250sda User Manual

Here you can view all the pages of manual AOC E2250sda User Manual. The AOC manuals for Monitor are available online for free. You can easily download all the documents as PDF.

Page 31

 31
4

Press   or   to adjust.

5

Press  to exit.









Input Select Analog Select Analog Sigal Source as Input
Auto Config  yes or no  Auto adjust the picture to default
Off timer 0-24hrs Select DC off time
Image Ratio wide or 4:3 Select wide or 4:3 format for display
DDC-CI yes or no Turn ON/OFF DDC-CI Support
Reset Yes or no Reset the menu to default
Information   Show  the  information  of  the  main  image  and
sub-image source

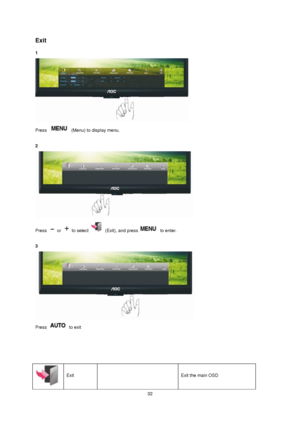

Page 32

 32
Exit
1

Press  (Menu) to display menu.

2

Press  or  to select  (Exit), and press to enter.

3

Press  to exit





Exit   Exit the main OSD

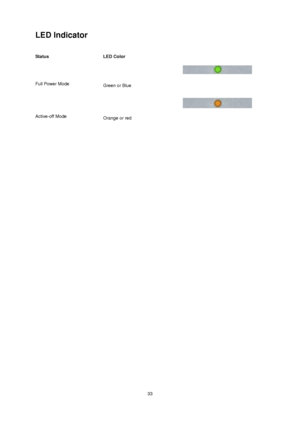

Page 33

 33
LED Indicator

Status

LED Color



Full Power Mode


Green or Blue




Active-off Mode


Orange or red




Page 34

 34
Driver
Monitor Driver

Windows 7
1.Start Windows® 7

2.Click on the Start button and then click on Control Panel.


3. Click on the Display icon.




Page 35

 35
4.Ckick on the “Change display settings” button.


5.Click the “Advanced Settings” button.


6.Click the “Monitor” tab and then click the “Properties” button.

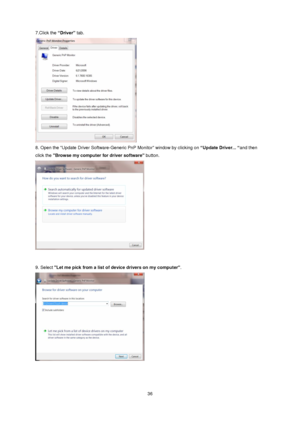

Page 36

 36
7.Click the “Driver” tab.

8. Open the Update Driver Software-Generic PnP Monitor window by clicking on “Update Driver... “and then
click the Browse my computer for driver software button.


9. Select Let me pick from a list of device drivers on my computer.




Page 37

 37
10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory:
X:\Driver\module name  (where X is the drive letter designator for the CD-ROM drive).


11. Select the xxx.inf file and click the “Open” button. Click the “OK” button.

12. Select your monitor model and click the “Next” button. The files will be copied from the CD to your hard disk
drive.

13. Close all open windows and remove the CD.

14. Restart the system. The system will...

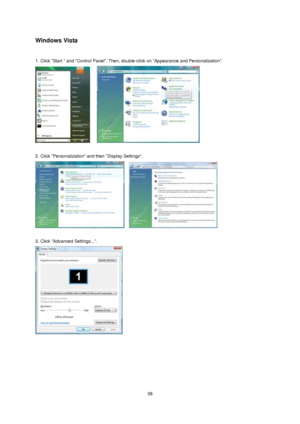

Page 38

 38
Windows Vista

1. Click Start  and Control Panel. Then, double-click on Appearance and Personalization.


2. Click Personalization and then Display Settings.


3. Click Advanced Settings....




Page 39

 39
4. Click Properties in the Monitor tab. If the Properties button is deactivated, it means the configuration for your
monitor is completed. The monitor can be used as is.
If the message Windows needs... is displayed, as shown in the figure below, click Continue.


5. Click Update Driver... in the Driver tab.


6. Check the Browse my computer for driver software checkbox and click Let me pick from a list of device drivers
on my computer.


7. Click on the Have disk... button, then...

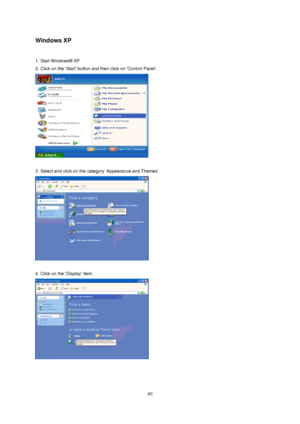

Page 40

 40
Windows XP

1. Start Windows® XP
2. Click on the Start button and then click on Control Panel.


3. Select and click on the category „Appearance and Themes‟


4. Click on the Display Item.
