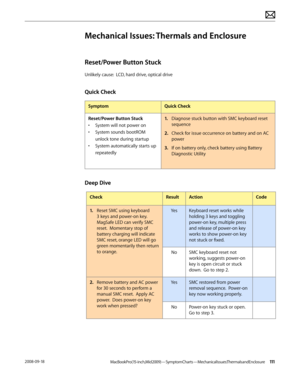

MacBook Pro (15-inch, Mid 2009) — Symptom Charts — Mechanical Issues: Thermals and Enclosure 1112008-09-18
Mechanical Issues: Thermals and Enclosure
Reset/Power Button Stuck
Unlikely cause:  LCD, hard drive, optical drive
Quick Check
SymptomQuick Check
Reset/Power Button Stuck
• System will not power on
• System sounds bootROM
unlock tone during startup
• System automatically starts up
repeatedly
1. Diagnose stuck button with SMC keyboard reset
sequence
2.  Check for issue occurrence on battery and on...

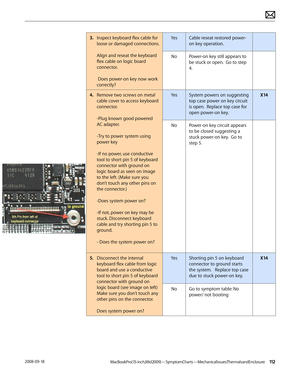

MacBook Pro (15-inch, Mid 2009) — Symptom Charts — Mechanical Issues: Thermals and Enclosure 1122008-09-18
3. Inspect keyboard flex cable for
loose or damaged connections.

Align and reseat the keyboard
flex cable on logic board
connector.

 Does power-on key now work
correctly?
YesCable reseat restored power-
on key operation.
NoPower-on key still appears to
be stuck or open.  Go to step
4.
4.  Remove two screws on metal
cable cover to access keyboard
connector.

-Plug known good...

MacBook Pro (15-inch, Mid 2009) — Symptom Charts — Mechanical Issues: Thermals and Enclosure 1132008-09-18

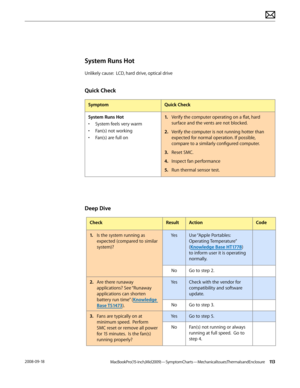

System Runs Hot
Unlikely cause:  LCD, hard drive, optical drive
Quick Check
SymptomQuick Check
System Runs Hot
• System feels very warm
• Fan(s) not working
• Fan(s) are full on
1. Verify the computer operating on a flat, hard
surface and the vents are not blocked.
2.  Verify the computer is not running hotter than
expected for normal operation. If possible,
compare to a similarly configured...

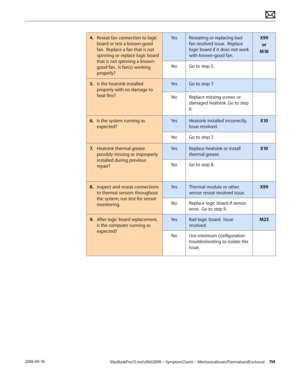

MacBook Pro (15-inch, Mid 2009) — Symptom Charts — Mechanical Issues: Thermals and Enclosure 1142008-09-18
4. Reseat fan connection to logic
board or test a known-good
fan.  Replace a fan that is not
spinning or replace logic board
that is not spinning a known-
good fan.  Is fan(s) working
properly?
YesReseating or replacing bad
fan resolved issue.  Replace
logic board if it does not work
with known-good fan.
X99
or
M18
NoGo to step 5.
5. Is the heatsink installed
properly with no...

MacBook Pro (15-inch, Mid 2009) — Symptom Charts — Mechanical Issues: Thermals and Enclosure 1152008-09-18

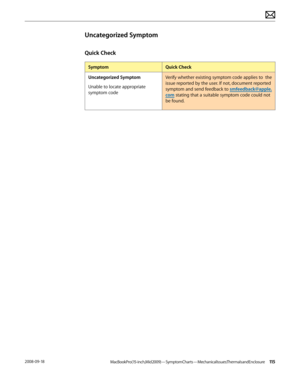

Uncategorized Symptom
Quick Check
SymptomQuick Check
Uncategorized Symptom
Unable to locate appropriate
symptom code
Verify whether existing symptom code applies to  the
issue reported by the user. If not, document reported
symptom and send feedback to smfeedback@apple.
com stating that a suitable symptom code could not
be found.

© 2009 Apple Inc. All rights reserved.
 Apple Technician Guide
Take Apart
MacBook Pro (15-inch, Mid 2009)

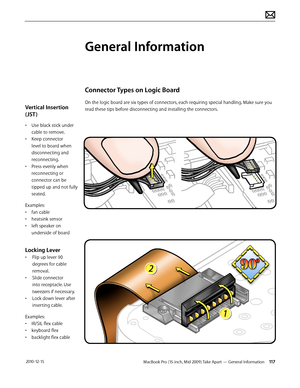

MacBook Pro (15-inch, Mid 2009) Take Apart — General Information 117 2010-12-15
Vertical Insertion
(JST )
• Use black stick under
cable to remove.
• Keep connector
level to board when
disconnecting and
reconnecting.
• Press evenly when
reconnecting or
connector can be
tipped up and not fully
seated.
Examples:
• fan cable
• heatsink sensor
• left speaker on
underside of board
Locking Lever
• Flip up lever 90
degrees for cable
removal.
• Slide connector
into receptacle. Use
tweezers if...

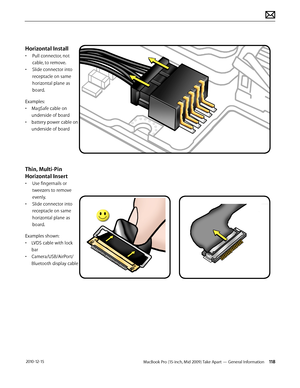

MacBook Pro (15-inch, Mid 2009) Take Apart — General Information 118 2010-12-15
Horizontal Install
• Pull connector, not
cable, to remove.
• Slide connector into
receptacle on same
horizontal plane as
board.
Examples:
• MagSafe cable on
underside of board
• battery power cable on
underside of board
Thin, Multi-Pin
Horizontal Insert
• Use fingernails or
tweezers to remove
evenly.
• Slide connector into
receptacle on same
horizontal plane as
board.
Examples shown:
• LVDS cable with lock
bar
•...

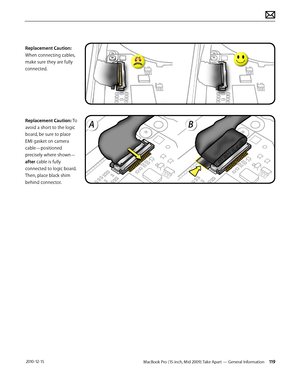

MacBook Pro (15-inch, Mid 2009) Take Apart — General Information 119 2010-12-15
Replacement Caution:
When connecting cables,
make sure they are fully
connected.
Replacement Caution: To
avoid a short to the logic
board, be sure to place
EMI gasket on camera
cable—positioned
precisely where shown—
after cable is fully
connected to logic board.
Then, place black shim
behind connector.

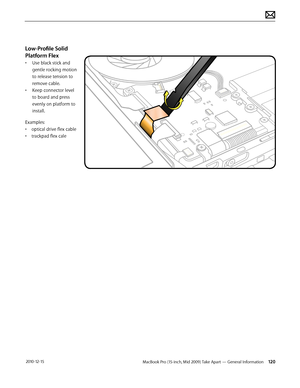

MacBook Pro (15-inch, Mid 2009) Take Apart — General Information 120 2010-12-15
Low-Profile Solid
Platform Flex
• Use black stick and
gentle rocking motion
to release tension to
remove cable.
• Keep connector level
to board and press
evenly on platform to
install.
Examples:
• optical drive flex cable
• trackpad flex cale
