Baumatic Sb6 Instruction Manual

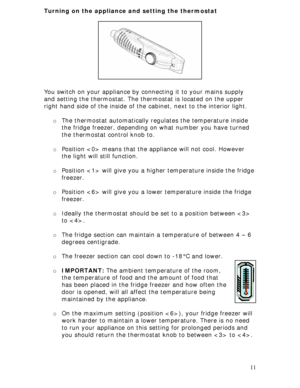

Turning on the appliance and setting the thermostat









You switch on your appliance by connecting it to your mains supply
and setting the thermostat. The ther mostat is located on the upper
right hand side of the inside of the  cabinet, next to the interior light.

o The thermostat automatically regulates the temperature inside
the fridge freezer, depending on what number you have turned
the thermostat control knob to.

o Position  means that the appliance will not cool. However...

 12

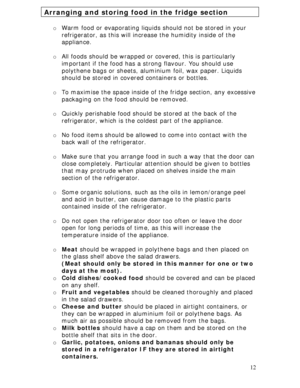

Arranging and storing food in the fridge section

o Warm food or evaporating liquids  should not be stored in your
refrigerator, as this will increa se the humidity inside of the
appliance.

o All foods should be wrapped or  covered, this is particularly
important if the food has a st rong flavour. You should use
polythene bags or sheets, aluminium foil, wax paper. Liquids
should be stored in cove red containers or bottles.

o To maximise the space inside of the fridge section, any...

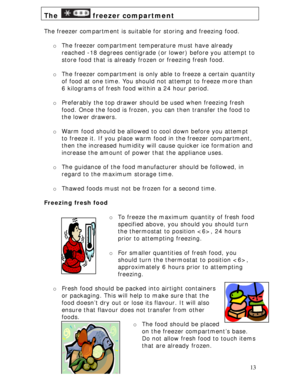

The  freezer compartment

The freezer compartment is suitable for storing and freezing food.

o The freezer compartment temperature must have already
reached -18 degrees centigrade (o r lower) before you attempt to
store food that is already frozen or freezing fresh food.

o  The freezer compartment is only able to freeze a certain quantity
of food at one time. You should  not attempt to freeze more than
6 kilograms of fresh food within a 24 hour period.

o  Preferably the top drawer should...

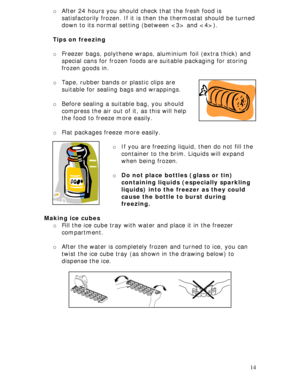

o After 24 hours you should check that the fresh food is
satisfactorily frozen. If it is then  the thermostat should be turned
down to its normal setting (between  and ).

Tips on freezing

o Freezer bags, polythene wraps, aluminium foil (extra thick) and
special cans for frozen foods ar e suitable packaging for storing
frozen goods in.

o Tape, rubber bands or plastic clips are
suitable for sealing bags and wrappings.

o Before sealing a suitable bag, you should
compress the air out of...

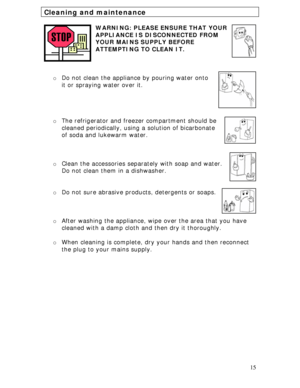

Cleaning and maintenance

WARNING: PLEASE ENSURE THAT YOUR
APPLIANCE IS DISCONNECTED FROM
YOUR MAINS SUPPLY BEFORE
ATTEMPTING TO CLEAN IT.



o Do not clean the appliance by pouring water onto
it or spraying water over it.




o The refrigerator and freezer  compartment should be
cleaned periodically, using a solution of bicarbonate
of soda and lukewarm water.



o Clean the accessories separately with soap and water.
Do not clean them in a dishwasher.


o Do not sure...

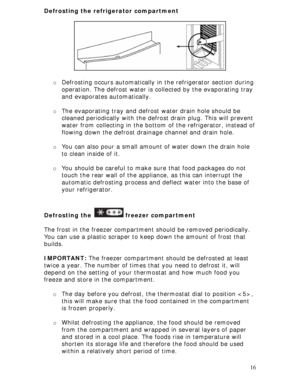

Defrosting the refrigerator compartment









o Defrosting occurs automatically in  the refrigerator section during
operation. The defrost water is co llected by the evaporating tray
and evaporates automatically.

o  The evaporating tray and defrost water drain hole should be
cleaned periodically with the defr ost drain plug. This will prevent
water from collecting in the bottom  of the refrigerator, instead of
flowing down the defrost drai nage channel and drain hole.

o You can...

 17

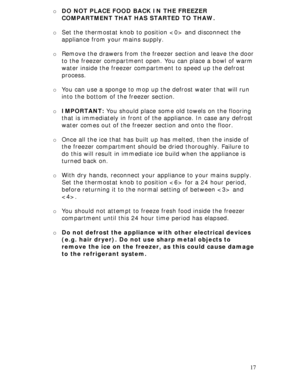

o DO NOT PLACE FOOD BACK IN THE FREEZER
COMPARTMENT THAT HAS STARTED TO THAW.

o Set the thermostat knob to po sition  and disconnect the
appliance from your mains supply.

o  Remove the drawers from the freez er section and leave the door
to the freezer compartment open.  You can place a bowl of warm
water inside the freezer compartment to speed up the defrost
process.

o  You can use a sponge to mop up  the defrost water that will run
into the bottom of the freezer section.

o...

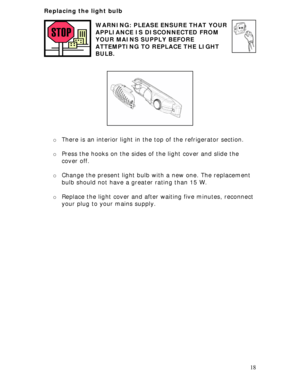

Replacing the light bulb

 18
WARNING: PLEASE ENSURE THAT YOUR
APPLIANCE IS DISCONNECTED FROM
YOUR MAINS SUPPLY BEFORE
ATTEMPTING TO REPLACE THE LIGHT
BULB.











o There is an interior light in the  top of the refrigerator section.

o Press the hooks on the sides of the light cover and slide the
cover off.

o Change the present light bulb wi th a new one. The replacement
bulb should not have a greater rating than 15 W.

o  Replace the light cover and after waiting five...

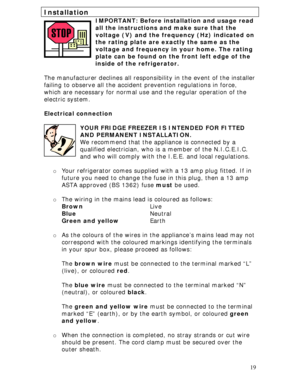

Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home. The rating
plate can be found on the front left edge of the
            inside of the refrigerator.

The manufacturer declines all responsi bility in the event of the installer
failing to observe all the accident  prevention regulations in force,
which are...

 20

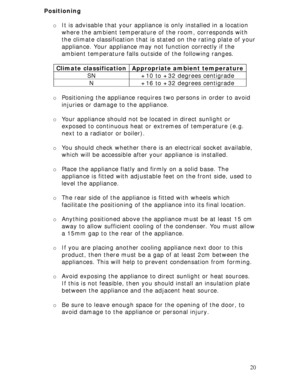

Positioning

o It is advisable that your appliance is only installed in a location
where the ambient temperature of  the room, corresponds with
the climate classification that is st ated on the rating plate of your
appliance. Your appliance may not function correctly if the
ambient temperature falls outs ide of the following ranges.

Climate classification Appropriate ambient temperature
SN +10 to +32 degrees centigrade
N +16 to +32 degrees centigrade

o Positioning the appliance...
