BenQ Mw821st Digital Projector User Manual

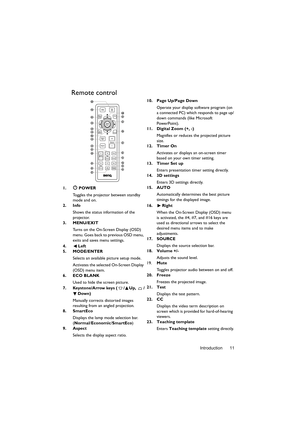

Introduction 11
Remote control
1. POWER
Toggles the projector between standby
mode and on.
2. Info
Shows the status information of the
projector.
3. MENU/EXIT
Turns on the On-Screen Display (OSD)
menu. Goes back to previous OSD menu,
exits and saves menu settings.
4. Left
5. MODE/ENTER
Selects an available picture setup mode.
Activates the selected On-Screen Display
(OSD) menu item.
6. ECO BLANK
Used to hide the screen picture.
7. Keystone/Arrow keys ( / Up,  /
Down)
Manually corrects distorted...

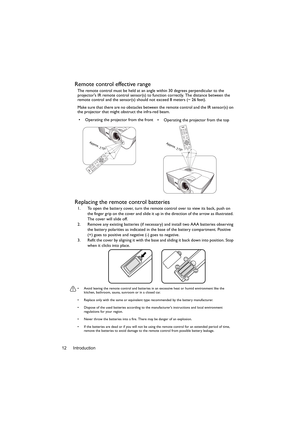

Introduction
12
Remote control effective range
The remote control must be held at an angle within 30 degrees perpendicular to the
projectors IR remote control sensor(s) to function correctly. The distance between the
remote control and the sensor(s) should not exceed 8 meters (~ 26 feet).
Make sure that there are no obstacles between the remote control and the IR sensor(s) on
the projector that might obstruct the infra-red beam.
Replacing the remote control batteries
1. To open the battery cover, turn...

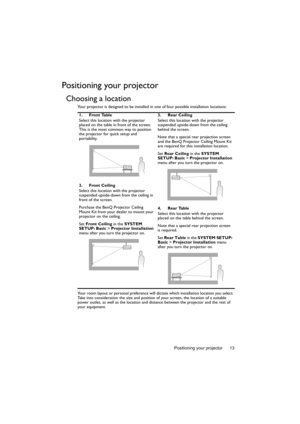

Positioning your projector 13
Positioning your projector
Choosing a location
Your projector is designed to be installed in one of four possible installation locations:
Your room layout or personal preference will dictate which installation location you select.
Take into consideration the size and position of your screen, the location of a suitable
power outlet, as well as the location and distance between the projector and the rest of
your equipment.1. Front Table
Select this location with the...

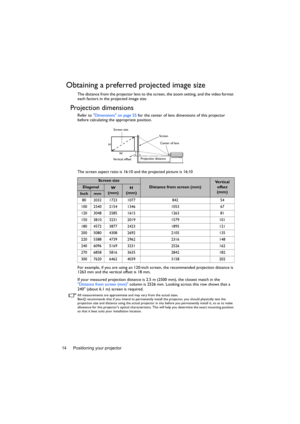

Positioning your projector 14
Obtaining a preferred projected image size
The distance from the projector lens to the screen, the zoom setting, and the video format
each factors in the projected image size.
Projection dimensions
Refer to Dimensions on page 55 for the center of lens dimensions of this projector
before calculating the appropriate position.
The screen aspect ratio is 16:10 and the projected picture is 16:10
For example, if you are using an 120-inch screen, the recommended projection...

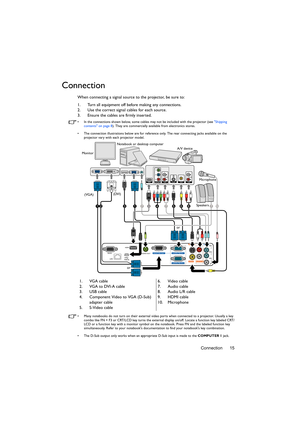

Connection 15
Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
•  In the connections shown below, some cables may not be included with the projector (see Shipping
contents on page 8). They are commercially available from electronics stores.
•  The connection illustrations below are for reference only. The rear connecting jacks...

Connection 16
•  If you wish to use this connection method when the projector is in standby mode, make sure the
Monitor Out function is turned on in the SYSTEM SETUP: Advanced menu. See Standby Settings
on page 44 for details.
Connecting video source devices
You need only connect the projector to a video source device using just one of the
connecting methods, however each provides a different level of video quality. The method
you choose will most likely depend upon the availability of matching...

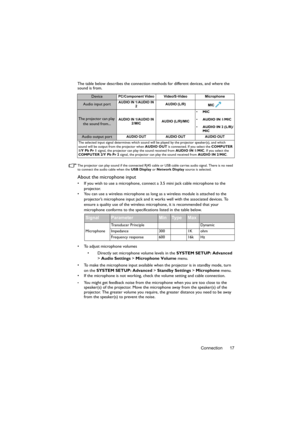

Connection 17 The table below describes the connection methods for different devices, and where the
sound is from.
The projector can play sound if the connected RJ45 cable or USB cable carries audio signal. There is no need
to connect the audio cable when the USB Display or Network Display source is selected.
About the microphone input
•  If you wish to use a microphone, connect a 3.5 mini jack cable microphone to the
projector.
•  You can use a wireless microphone as long as a wireless module is...

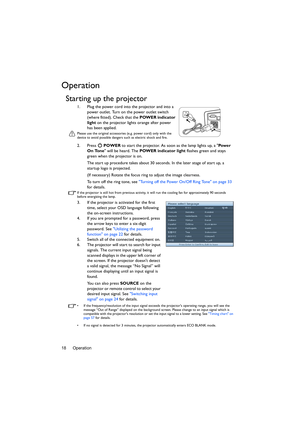

Operation
18
Operation
Starting up the projector
1. Plug the power cord into the projector and into a
power outlet. Turn on the power outlet switch
(where fitted). Check that the  POWER indicator
light  on the projector lights orange after power
has been applied.
Please use the original accessories (e.g. power cord) only with the
device to avoid possible dangers such as electric shock and fire.
2. Press   POWER to start the projector. As soon as the lamp lights up, a  Pow e r
On Tone  will be...

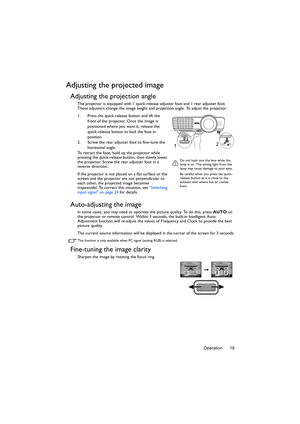

Operation 19
Adjusting the projected image
Adjusting the projection angle
The projector is equipped with 1 quick-release adjuster foot and 1 rear adjuster foot.
These adjusters change the image height and projection angle. To adjust the projector:
1. Press the quick-release button and lift the
front of the projector. Once the image is
positioned where you want it, release the
quick-release button to lock the foot in
position.
2. Screw the rear adjuster foot to fine-tune the
horizontal angle.
To...

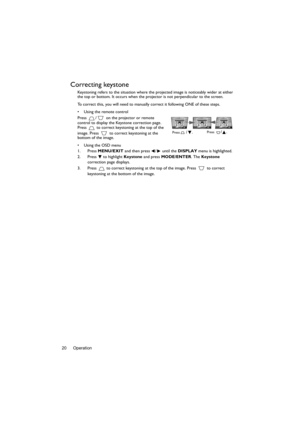

Operation 20
Correcting keystone
Keystoning refers to the situation where the projected image is noticeably wider at either
the top or bottom. It occurs when the projector is not perpendicular to the screen.
To correct this, you will need to manually correct it following ONE of these steps.
•  Using the remote control
Press  /  on the projector or remote
control to display the Keystone correction page.
Press   to correct keystoning at the top of the
image. Press   to correct keystoning at the...
