Bose Cinemate 2 Owners Manual

9
SYSTEM SETUP
ItalianoSvenska
Deutsch Nederlands
English Français
Español

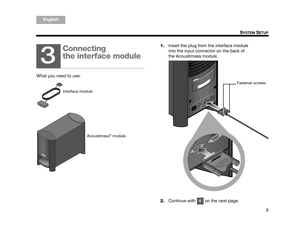

1.Insert the plug from the interface module
into the input connector on the back of
the Acoustimass module.
2. Continue with   on the next page.
3
Connecting
the interface module
What you need to use:
Interface module
Acoustimass® module
Fastener screws
4
00.Kaiser_OG.book  Page 9  Fr iday, May 15, 2009  7:15 AM

10
SYSTEM SETUP
Italiano
Svenska Deutsch
Nederlands English
Français Español

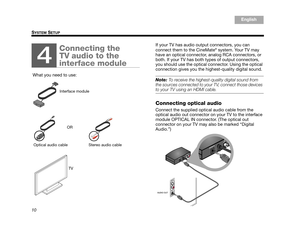

If your TV has audio output connectors, you can
connect them to the CineMate
® system. Your TV may
have an optical connector, analog RCA connectors, or
both. If your TV has both types of output connectors,
you should use the optical connector. Using the optical
connection gives you the high est-quality digital sound.
Note: To receive the highest-quality digital sound from
the sources connected to your TV, connect those...

11
SYSTEM SETUP
ItalianoSvenska
Deutsch Nederlands
English Français
Español

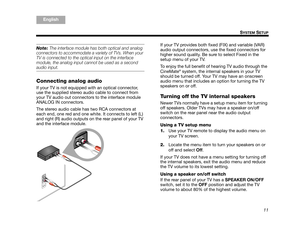

Note:  The interface module has both optical and analog
connectors to accommodate a variety of TVs. When your
TV is connected to the optical input on the interface
module, the analog input cannot be used as a second
audio input.
Connecting analog audio
If your TV is not equipped with an optical connector,
use the supplied stereo audio cable to connect from
your TV audio out connectors to the interface module
ANALOG IN...

12
SYSTEM SETUP
Italiano
Svenska Deutsch
Nederlands English
Français Español

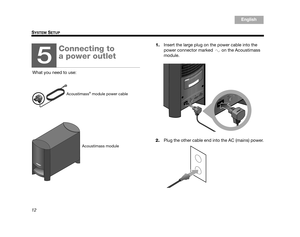

1. Insert the large plug on the power cable into the
power connector marked   on the Acoustimass
module.
2. Plug the other cable end into the AC (mains) power.
5
Connecting to
a power outlet
What you need to use:
Acoustimass® module power cable
Acoustimass module
00.Kaiser_OG.book  Page 12  Fr iday, May 15, 2009  7:15 AM

13
SYSTEM SETUP
ItalianoSvenska
Deutsch Nederlands
English Français
Español

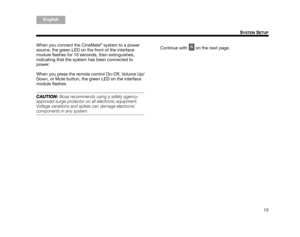

When you connect the CineMate
® system to a power
source, the green LED on the front of the interface
module flashes for 10 seconds, then extinguishes,
indicating that the system has been connected to
power.
When you press the remote control On-Off, Volume Up/
Down, or Mute button, the green LED on the interface
module flashes.
CAUTION: Bose recommends using a safety agency-
approved surge protector on all electronic...

14
SYSTEM SETUP
Italiano
Svenska Deutsch
Nederlands English
Français Español

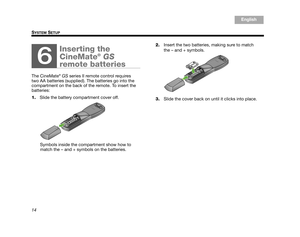

The CineMate
®  GS  series II remote control requires
two AA batteries (supplied). The batteries go into the
compartment on the back of the remote. To insert the
batteries:
1. Slide the battery compartment cover off.
Symbols inside the compartment show how to
match the – and + symbols on the batteries.  2.
Insert the two batteries, making sure to match
the – and + symbols.
3. Slide the cover back on un til it clicks into...

ItalianoSvenska
Deutsch Nederlands
English Français
Español
15
CONTROLS AND INDICATORS

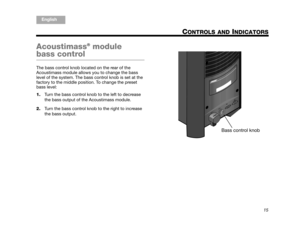

Acoustimass® module
bass control
The bass control knob located on the rear of the
Acoustimass module allows you to change the bass
level of the system. The bass control knob is set at the
factory to the middle position. To change the preset
bass level:
1. Turn the bass control knob to the left to decrease
the bass output of the Acoustimass module.
2. Turn the bass control knob to the right to increase
the bass...

16
CONTROLS AND INDICATORS
Italiano
Svenska Deutsch
Nederlands English
Français Español
CineMate® series II
remote control

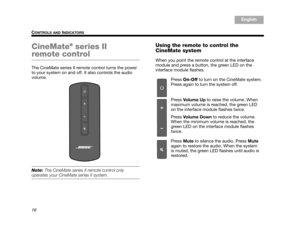

The CineMate series II remote control turns the power
to your system on and off. It also controls the audio
volume.
Note:  The CineMate series II remote control only
operates your CineMa te series II system.
Using the remote to control the
CineMate system
When you point the remote control at the interface
module and press a button, the green LED on the
interface module...

17
CONTROLS AND INDICATORS
ItalianoSvenska
Deutsch Nederlands
English Français
Español
CineMate®  GS  series II
remote control

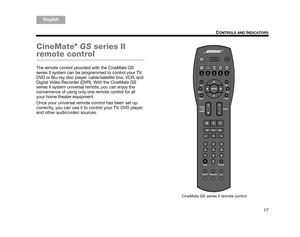

The remote control provided with the CineMate  GS
series II system can be programmed to control your TV,
DVD or Blu-ray disc player, cable/satellite box, VCR, and
Digital Video Recorder (DVR). With the CineMate  GS
series II system universal remote, you can enjoy the
convenience of using only one remote control for all
your home theater equipment.
Once your universal...

18
CONTROLS AND INDICATORS
Italiano
Svenska Deutsch
Nederlands English
Français Español

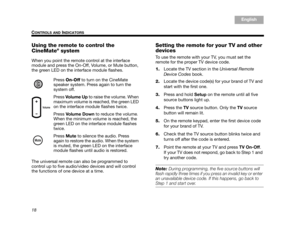

Using the remote to control the
CineMate® system
When you point the remote control at the interface
module and press the On-Off, Volume, or Mute button,
the green LED on the interface module flashes.
Press On-Off  to turn on the CineMate
speaker system. Press again to turn the
system off.
Press  Vo l u m e  U p  to raise the volume. When
maximum volume is reached, the green LED
on the interface module flashes...
