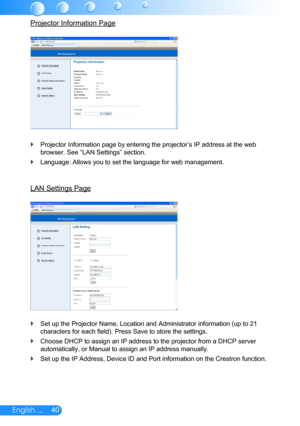

Projector Information Page
Projector Information page by entering the projector’s IP address at \
the web  `
browser. See “LAN Settings” section.
Language: Allows you to set the language for web management. `
LAN Settings Page
Set up the Projector Name, Location and Administrator information (up to 21  `
characters for each field). Press Save to store the settings.
Choose DHCP to assign an IP address to the projector from a DHCP server \
 `
automatically, or Manual to assign an IP address...

41... English
Projector Status and Control Page
Projector Status: There are 4 status: Standby, Warning up, Lamp On, Power  `Saving and Cooling. Click the Refresh button to refresh the status and c\
ontrol settings.
Auto Power Off: Auto Power Off can be set to Off(0) or 1~120 minutes. See “Auto  `Power Off (min)” function.
Alert Status: There are three error status: Lamp warning, Low lamp life, and  `Temperature warning. Your projector might lock up in protection mode if any of the alerts is activated....

42English ...
E-mail Setting Page
E-mail Alert: You can set whether to be notified by email (Enable) or not (Disable). `
To/Cc/From: You can enter email address of sender (From) and recipients (To/ `Cc) to receive notification when an abnormality or warning occurs.
Out going SMTP server, User name, and Password should be provided by your  `network administrator or MIS.
Alert Condition: You can select the abnormalities or warnings to be notified  `by email. When any of the alert conditions occur, an email...

43... English
Login Page
Administrator Password: Enter the Administrator Password and click Login\
  `
button.
Welcome to Web Management.
Projector Name:IP Address:
Administrator Password:LoginProjector InformationD21211192.168.0.100
Web Management
Crestron
For more information, please visit http://www.crestron.com & www.crestron.com/ `
getroomview/

44English ...
Troubleshooting
Appendices
If you experience a problem with your projector, please refer to the follow-
ing information. If a problem persists, please contact your local resell\
er or
service center.
Image Problems
  No image appears on-screen
Ensure all the cables and power connections are correctly and securely  `
connected as described in the “Installation” section.
Ensure the pins of connectors are not crooked or broken. `
Check if the projection lamp has been securely installed. `...

45... English
If the projector is still not projecting the whole image, you will also  -
need to change the monitor display you are using. Refer to the
following steps.
Select the “Change” under the “Monitor” tab.1.
Click on “Show all devices”. Next, select “Standard monitor types” 2.
under the SP box; choose the resolution mode you need under
the “Models” box.
Verify that the resolution setting of the monitor display is lower 3.
than or equal to 1080p.
If you are using a Notebook: y
First, follow...

46English ...
  Image has vertical flickering bar
Use “Clock” to make an adjustment. Refer to the “Screen” section for more  `
information.
Check and reconfigure the display mode of your graphic card to make it  `
compatible with the product.
  Image is out of focus
Adjust the “Focus Ring” on the projector lens. `
Make sure the projection screen is within the required distance. Refer t\
o  `
Page 16.
  The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the...

47... English
Projector Problems

 The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord and wait at  `
least 20 seconds before reconnecting power.

 Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may make a loud  `
popping sound. If this happens, the projector will not turn on until the lamp
module has been replaced. To replace the lamp, follow the procedures in
the “Replacing the Lamp”...

48English ...

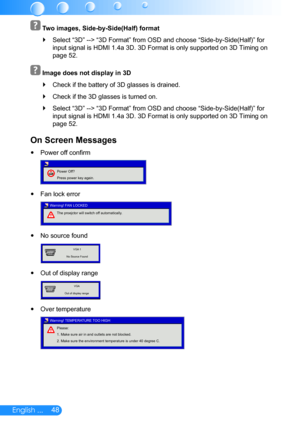

 Two images, Side-by-Side(Half) format
Select  `“3D” --> “3D Format” from OSD and choose “Side-by-Side(Half)” for
input signal is HDMI 1.4a 3D. 3D Format is only supported on 3D Timing o\
n
page 52.

 Image does not display in 3D
Check if the battery of 3D glasses is drained. `
Check if the 3D glasses is turned on. `
Select  `“3D” --> “3D Format” from OSD and choose “Side-by-Side(Half)” for
input signal is HDMI 1.4a 3D. 3D Format is only supported on 3D Timing o\
n
page 52.
On Screen...

49... English
Compatibility Modes
VGA Analog y
PC signal -
ModesResolutionV. Frequency [Hz]H. Frequency [Hz]
VGA
640x4806031.5
640x4806735.0
640x4807237.9
640x4807537.5
640x4808543.3
640x48012061.9
IBM720x4007031.5
SVGA
800x6005635.1
800x6006037.9
800x6007248.1
800x6007546.9
800x6008553.7
800x60012077.4
Apple, MAC II832x6247549.1
XGA
1024x7686048.4
1024x7687056.5
1024x7687560.0
1024x7688568.7
1024x76812099.0
Apple, MAC II1152x8707568.7
SXGA
1280x10246064.0
1280x10247277.0...
