Brother DCP J315W User Manual

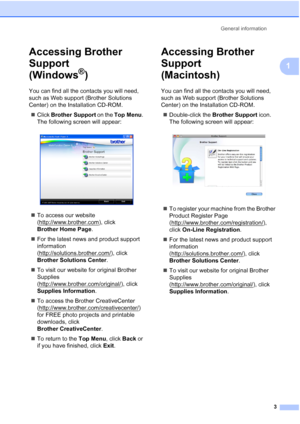

General information3
1
Accessing Brother
Support
(Windows
®)1
You can find all the contacts you will need,
such as Web support (Brother Solutions
Center) on the Installation CD-ROM. Click  Brother Support  on the Top Menu .
The following screen will appear:

 To access our website
(http://www.brother.com
), click
Brother Home Page .
 For the latest news and product support
information
(http://solutions.brother.com/
), click
Brother Solutions Center .
 To visit our website for original...

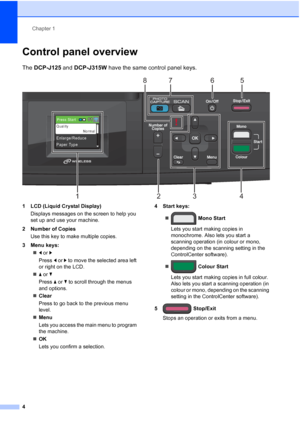

Chapter 1
4
Control panel overview1
The  DCP-J125  and DCP-J315W  have the same control panel keys.

1 LCD (Liquid Crystal Display)
Displays messages on the screen to help you
set up and use your machine.
2 Number of Copies Use this key to make multiple copies.
3 Menu keys: d or  c
Press  d or  c to move the selected area left
or right on the LCD.
 a or  b
Press  a or  b to scroll through the menus
and options.
 Clear
Press to go back to the previous menu
level.
 Menu
Lets you access the main...

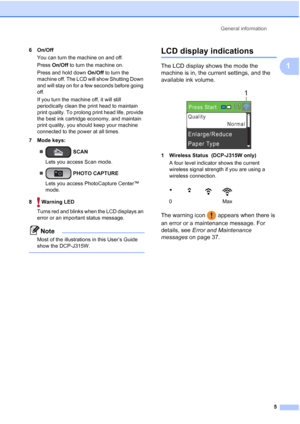

General information5
1
6On/OffYou can turn the machine on and off.
Press  On/Off  to turn the machine on.
Press and hold down On/Off  to turn the
machine off. The LCD will show Shutting Down
and will stay on for a few seconds before going
off.
If you turn the machine off, it will still
periodically clean the print head to maintain
print quality. To prolong print head life, provide
the best ink cartridge economy, and maintain
print quality, you should keep your machine
connected to the power at...

Chapter 1
6
Basic Operations1
The following steps show how to change a
setting in the machine. In this example the
Paper Type setting is changed from
Plain Paper  to Inkjet Paper .
aPress Menu.
bPress  a or  b to choose
General Setup .

Press OK.
cPress  a or  b to choose  Paper Type .
Press  OK.
dPress  a or b  to choose Inkjet Paper .
Press  OK.
You can see the current setting on the
LCD:

ePress  Stop/Exit.
Warning LED indications1
The Warning LED (light emitting diode) is a
light that shows...

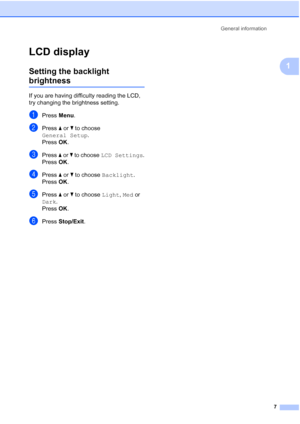

General information7
1
LCD display1
Setting the backlight
brightness1
If you are having difficulty reading the LCD,
try changing the brightness setting.
aPress Menu.
bPress  a or  b to choose
General Setup .
Press  OK.
cPress  a or b  to choose  LCD Settings .
Press  OK.
dPress  a or  b to choose  Backlight .
Press  OK.
ePress  a or  b to choose  Light, Med or
Dark.
Press  OK.
fPress  Stop/Exit .

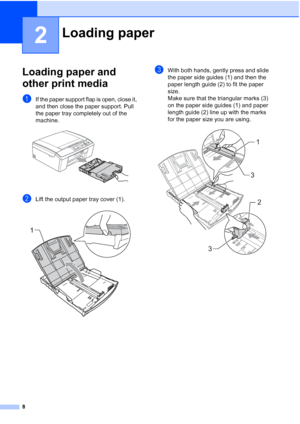

8
2
Loading paper and
other print media
2
aIf the paper support flap is open, close it,
and then close the paper support. Pull
the paper tray completely out of the
machine.

bLift the output paper tray cover (1).
cWith both hands, gently press and slide
the paper side guides (1) and then the
paper length guide (2) to fit the paper
size.
Make sure that the triangular marks (3)
on the paper side guides (1) and paper
length guide (2) line up with the marks
for the paper size you are using....

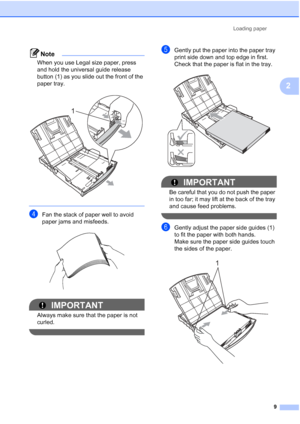

Loading paper9
2
Note
When you use Legal size paper, press
and hold the universal guide release
button (1) as you slide out the front of the
paper tray.


dFan the stack of paper well to avoid
paper jams and misfeeds.

IMPORTANT
Always make sure that the paper is not
curled.

eGently put the paper into the paper tray
print side down and top edge in first.
Check that the paper is flat in the tray.

IMPORTANT
Be careful that you do not push the paper
in too far; it may lift at the back of the...

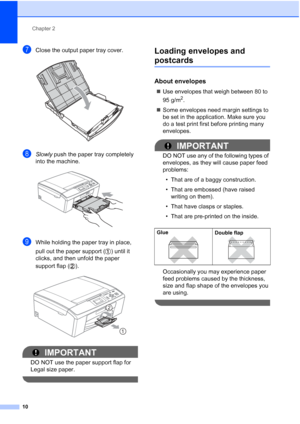

Chapter 2
10
gClose the output paper tray cover.
hSlowly  push the paper tray completely
into the machine.

iWhile holding the paper tray in place,
pull out the paper support ( ) until it
clicks, and then unfold the paper
support flap ( ).

IMPORTANT
DO NOT use the paper support flap for
Legal size paper.

Loading envelopes and
postcards2
About envelopes2
 Use envelopes that weigh between 80 to
95 g/m
2.
 Some envelopes need margin settings to
be set in the application. Make sure you
do a...

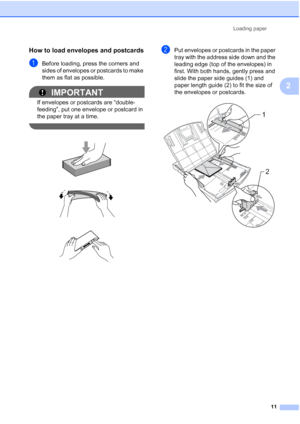

Loading paper11
2
How to load envelopes and postcards2
aBefore loading, press the corners and
sides of envelopes or postcards to make
them as flat as possible.
IMPORTANT
If envelopes or postcards are “double-
feeding”, put one envelope or postcard in
the paper tray at a time.




bPut envelopes or postcards in the paper
tray with the address side down and the
leading edge (top of the envelopes) in
first. With both hands, gently press and
slide the paper side guides (1) and
paper length guide...

Chapter 2
12

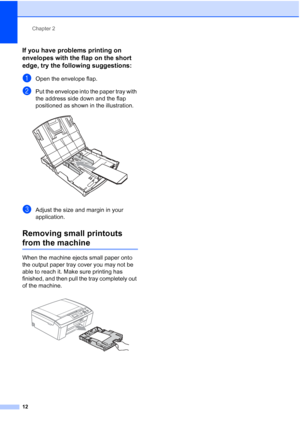

If you have problems printing on
envelopes with the flap on the short
edge, try the following suggestions:
2
aOpen the envelope flap.
bPut the envelope into the paper tray with
the address side down and the flap
positioned as shown in the illustration.

cAdjust the size and margin in your
application.
Removing small printouts
from the machine2
When the machine ejects small paper onto
the output paper tray cover you may not be
able to reach it. Make sure printing has
finished, and...
