201
3 Shooting Video Snapshots

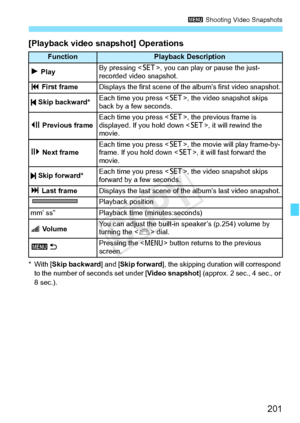

[Playback video snapshot] Operations
*With [ Skip backward ] and [Skip forward ], the skipping durati on will correspond
to the number of  seconds set under [ Video snapshot] (approx. 2 sec., 4 sec., or
8 sec.).
FunctionPlayback Description
7 PlayBy pressing < 0>, you can play or pause the just-
recorded video snapshot.
5 First frameDisplays the first scene of th e album’s first video snapshot.
 Skip backward*Each time you press < 0>, the video snapshot skips
back by a...

3 Shooting Video Snapshots
202

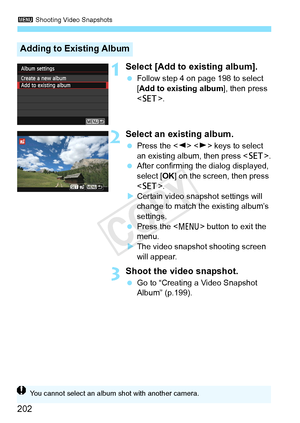

1Select [Add to existing album].
 Follow step 4 on page 198 to select
[Add to existing album ], then press
< 0 >.
2Select an existing album.
 Press the < Y>  keys to select
an existing album, then press < 0>.
  After confirming the dialog displayed,
select [ OK] on the screen, then press
< 0 >.
X Certain video snapshot settings will
change to match the existing album’s
settings.
  Press the < M> button to exit the
menu.
X The video snapshot shooting screen
will...

203
3 Shooting Video Snapshots

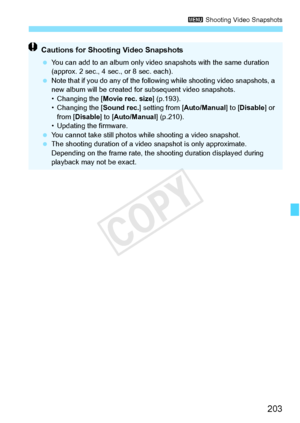

Cautions for Shooting Video Snapshots
 You can add to an album  only video snapshots with the same duration
(approx. 2 sec., 4 sec., or 8 sec. each).
  Note that if you do any  of the following while shooting video snapshots, a
new album will be created fo r subsequent video snapshots.
• Changing the [ Movie rec. size] (p.193).
• Changing the [ Sound rec.] setting from [ Auto/Manual] to [Disable ] or
from [ Disable ] to [Auto/Manual ] (p.210).
• Updating the firmware....

3 Shooting Video Snapshots

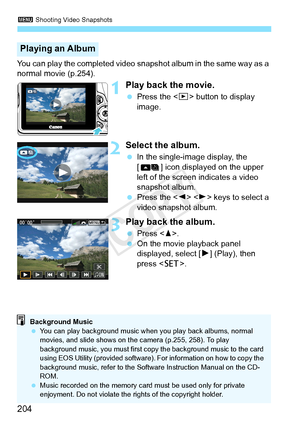

204
You can play the completed video snapshot album in the same way as a
normal movie (p.254).
1Play back the movie.
 Press the < x> button to display
image.
2Select the album.
  In the single-image display, the
[ ] icon displayed on the upper
left of the screen indicates a video
snapshot album.
  Press the < Y> < Z> keys to select a
video snapshot album.
3Play back the album.
  Press < W>.
  On the movie playback panel
displayed, select [ 7] (Play), then
press < 0>....

205
3 Shooting Video Snapshots

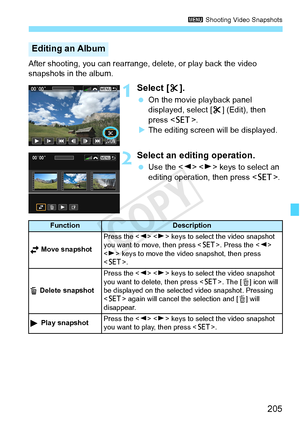

After shooting, you can rearrange, delete, or play back the video
snapshots in the album.
1Select [ X].
  On the movie playback panel
displayed, select [X] (Edit), then
press < 0>.
X The editing screen will be displayed.
2Select an editing operation.
  Use the < Y>  keys to select an
editing operation, then press < 0>.
Editing an Album
FunctionDescription
 Move snapshot
Press the < Y>  keys to select  the video snapshot
you want to mo ve, then press < 0>. Press the <...

3 Shooting Video Snapshots
206

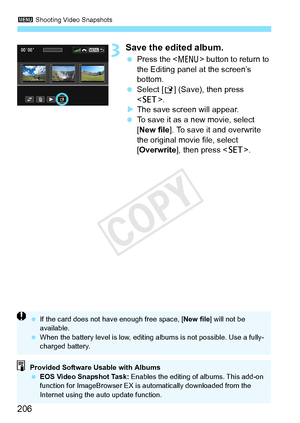

3Save the edited album.
 Press the  button to return to
the Editing panel at the screen’s
bottom.
  Select [W ] (Save), then press
< 0 >.
X The save screen will appear.
  To save it as a new movie, select
[New file ]. To save it and overwrite
the original movie file, select
[Overwrite ], then press < 0>.
Provided Software Usable with Albums
 EOS Video Snapshot Task:  Enables the editing of albums. This add-on
function for ImageBrowser EX is au tomatically downloaded...

207

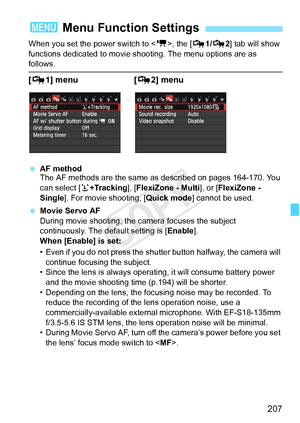

When you set the power switch to , the [Z 1/Z 2] tab will show
functions dedicated to movie s hooting. The menu options are as
follows.
[Z 1] menu [ Z2] menu
 AF method
The AF methods are the same as  described on pages 164-170. You
can select [ u+Tracking ], [FlexiZone - Multi ], or [FlexiZone -
Single ]. For movie shooting, [ Quick mode] cannot be used.
  Movie Servo AF
During movie shooting, the camera focuses the subject
continuously. The default setting is [ Enable].
When [Enable] is set:
•...

3 Menu Function Settings

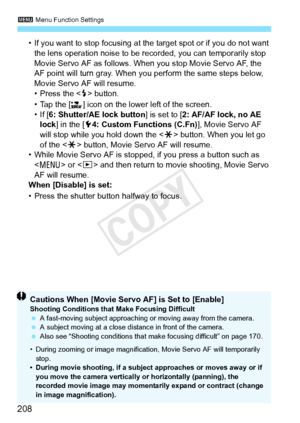

208
• If you want to stop focusing at the  target spot or if you do not want
the lens operation noise to be re corded, you can temporarily stop
Movie Servo AF as follows. Wh en you stop Movie Servo AF, the
AF point will turn gray. When  you perform the same steps below,
Movie Servo AF will resume.
• Press the < D> button.
• Tap the [ ] icon on the lower left of the screen.
• If [ 6: Shutter/AE lock button ] is set to [2: AF/AF lock, no AE
lock] in the [ 54: Custom Functions...

209
3 Menu Function Settings

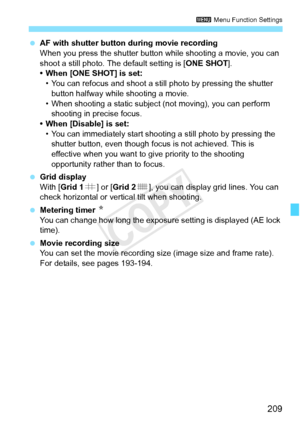

 AF with shutter button during movie recording
When you press the shutter button while shooting a movie, you can
shoot a still photo. The default setting is [ ONE SHOT].
• When [ONE SHOT] is set:
• You can refocus and shoot a still  photo by pressing the shutter
button halfway while shooting a movie.
• When shooting a static subject (not moving), you can perform
shooting in precise focus.
• When [Disable] is set: • You can immediately start shooting a still photo by...

3 Menu Function Settings
210

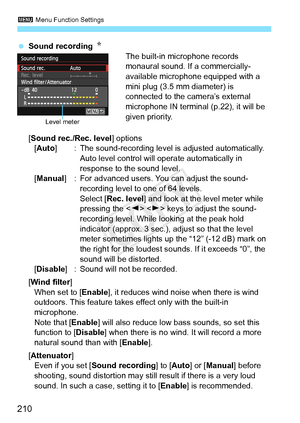

 Sound recording
N
The built-in microphone records
monaural sound. If a commercially-
available microphone equipped with a
mini plug (3.5 mm diameter) is
connected to the camera’s external
microphone IN terminal (p.22), it will be
given priority.
[Sound rec./Rec. level ] options
[Auto] : The sound-recording level is adjusted automatically.
Auto level control will operate automatically in
response to the sound level.
[Manual ] : For advanced users. You can adjust the...
