Canon Laser Shot Lbp3500 User Guide

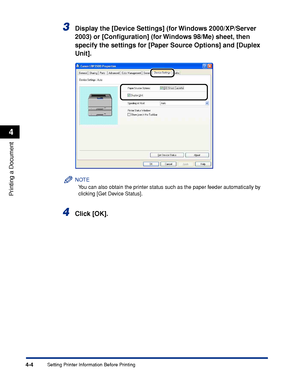

4-4
Printing a Document
Setting Printer Information Before Printing
4
3Display the [Device Settings] (for Windows 2000/XP/Server
2003) or [Configuration] (for Windows 98/Me) sheet, then
specify the settings for [Paper Source Options] and [Duplex
Unit].
NOTE
You can also obtain the printer status such as the paper feeder automatically by
clicking [Get Device Status].
4Click [OK].

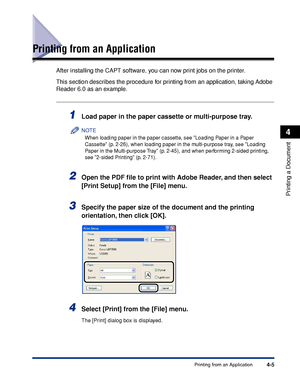

4-5Printing from an Application
Printing a Document
4
Printing from an Application
After installing the CAPT software, you can now print jobs on the printer.
This section describes the procedure for printing from an application, taking Adobe
Reader 6.0 as an example.
1Load paper in the paper cassette or multi-purpose tray.
NOTE
When loading paper in the paper cassette, see Loading Paper in a Paper
Cassette (p. 2-26), when loading paper in the multi-purpose tray, see Loading
Paper in the Multi-purpose...

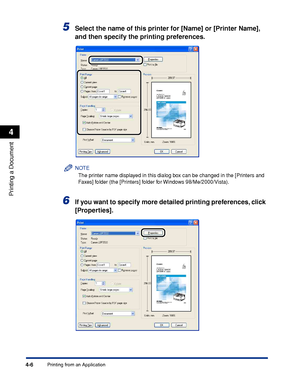

4-6
Printing a Document
Printing from an Application
4
5Select the name of this printer for [Name] or [Printer Name],
and then specify the printing preferences.
NOTE
The printer name displayed in this dialog box can be changed in the [Printers and
Faxes] folder (the [Printers] folder for Windows 98/Me/2000/Vista).
6If you want to specify more detailed printing preferences, click
[Properties].

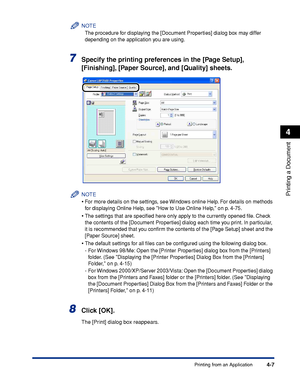

4-7
Printing a Document
4
Printing from an Application
NOTE
The procedure for displaying the [Document Properties] dialog box may differ
depending on the application you are using.
7Specify the printing preferences in the [Page Setup],
[Finishing], [Paper Source], and [Quality] sheets.
NOTE
•For more details on the settings, see Windows online Help. For details on methods
for displaying Online Help, see How to Use Online Help, on p. 4-75.
•The settings that are specified here only apply to the...

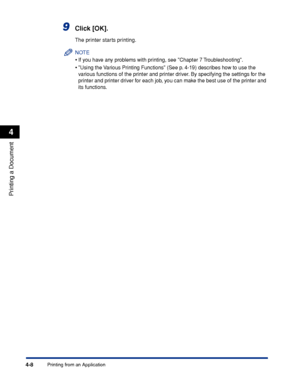

4-8
Printing a Document
Printing from an Application
4
9Click [OK].
The printer starts printing.
NOTE
•If you have any problems with printing, see Chapter 7 Troubleshooting.
•Using the Various Printing Functions (See p. 4-19) describes how to use the
various functions of the printer and printer driver. By specifying the settings for the
printer and printer driver for each job, you can make the best use of the printer and
its functions.

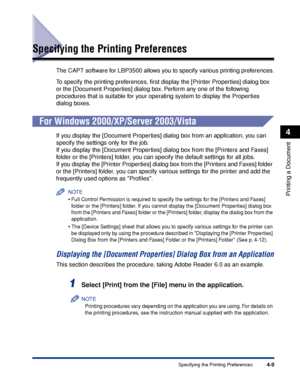

4-9Specifying the Printing Preferences
Printing a Document
4
Specifying the Printing Preferences
The CAPT software for LBP3500 allows you to specify various printing preferences.
To specify the printing preferences, first display the [Printer Properties] dialog box
or the [Document Properties] dialog box. Perform any one of the following
procedures that is suitable for your operating system to display the Properties
dialog boxes.
For Windows 2000/XP/Server 2003/Vista
If you display the [Document...

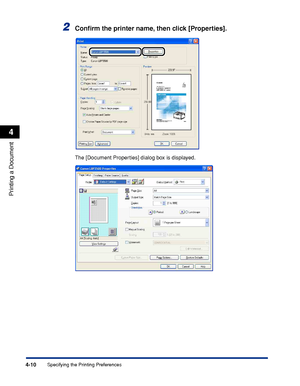

4-10
Printing a Document
Specifying the Printing Preferences
4
2Confirm the printer name, then click [Properties].
The [Document Properties] dialog box is displayed.

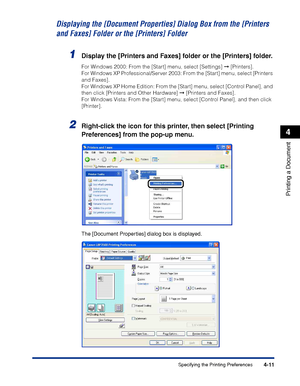

4-11
Printing a Document
4
Specifying the Printing Preferences
Displaying the [Document Properties] Dialog Box from the [Printers
and Faxes] Folder or the [Printers] Folder
1Display the [Printers and Faxes] folder or the [Printers] folder.
For Windows 2000: From the [Start] menu, select [Settings] ➞ [Printers].
For Windows XP Professional/Server 2003: From the [Start] menu, select [Printers
and Faxes].
For Windows XP Home Edition: From the [Start] menu, select [Control Panel], and
then click [Printers...

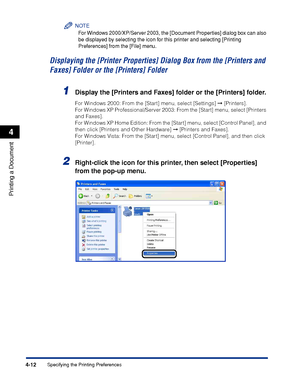

4-12
Printing a Document
Specifying the Printing Preferences
4
NOTE
For Windows 2000/XP/Server 2003, the [Document Properties] dialog box can also
be displayed by selecting the icon for this printer and selecting [Printing
Preferences] from the [File] menu.
Displaying the [Printer Properties] Dialog Box from the [Printers and
Faxes] Folder or the [Printers] Folder
1Display the [Printers and Faxes] folder or the [Printers] folder.
For Windows 2000: From the [Start] menu, select [Settings] ➞...

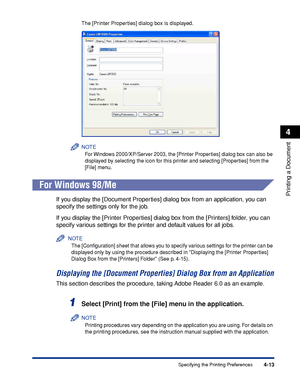

4-13
Printing a Document
4
Specifying the Printing Preferences
The [Printer Properties] dialog box is displayed.
NOTE
For Windows 2000/XP/Server 2003, the [Printer Properties] dialog box can also be
displayed by selecting the icon for this printer and selecting [Properties] from the
[File] menu.
For Windows 98/Me
If you display the [Document Properties] dialog box from an application, you can
specify the settings only for the job.
If you display the [Printer Properties] dialog box from the [Printers]...
