6.15.5 Time Setup Window

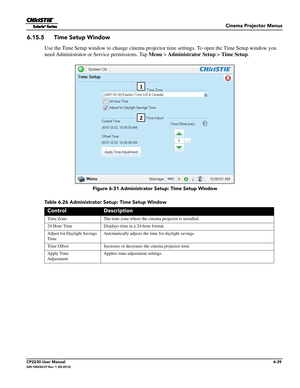

Use the Time Setup window to change cinema projector time settings. To  open the Time Setup window you
need Administrator or Service permissions. Tap  Menu > Administrator Setup  > Time Setup.
Table 6.26 Administrator  Setup: Time Setup Window
ControlDescription
Time Zone The time zone where the cinema projector is installed.
24 Hour Time  Displays time in a 24-hour format.
Adjust for Daylight Savings...

6-40CP2230 User Manual020-100430-07 Rev. 1 (05-2014)
Cinema Projector Menus
6.15.6 Scheduler Window

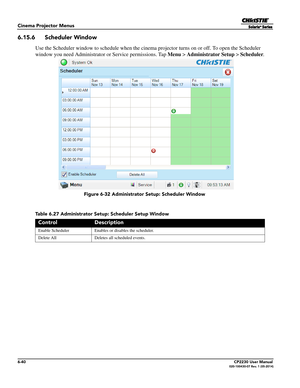

Use the Scheduler window to schedule when the cinema projector turns on or off. To open the Scheduler
window you need Administrator or Service permissions. Tap  Menu > Administrator Setup  > Scheduler .
Table 6.27 Administrator Setup: Scheduler Setup Window
ControlDescription
Enable Scheduler Enables or disables the scheduler.
Delete All Deletes all scheduled events.
 Figure 6-32 Administrator Setup:...

Cinema Projector Menus
CP2230 User Manual6-41020-100430-07 Rev. 1 (05-2014)
6.15.7 Communications Configuration Window
The Communications Configuration  window configures the Ethernet settings, serial communication
parameters, SNMP settings,  and remote access settings.

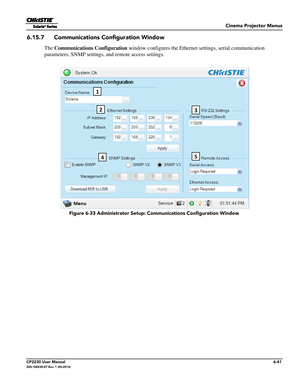

 Figure 6-33 Administrator Setup: Communications Configuration Window
1
23
45

6-42CP2230 User Manual020-100430-07 Rev. 1 (05-2014)
Cinema Projector Menus

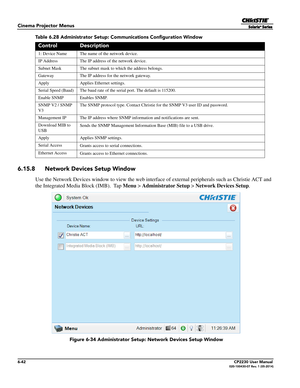

Table 6.28 Administrator Setup: Communications Configuration Window
6.15.8 Network Devices Setup Window
Use the Network Devices window to view the web interface  of external peripherals such as Christie ACT and
the Integrated Media Block (IMB).  Tap  Menu > Administrator Setup >  Network Devices Setup.
 Figure 6-34 Administrator Setup: Network Devices Setup Window
ControlDescription
1: Device Name The name  of the network...

Cinema Projector Menus
CP2230 User Manual6-43020-100430-07 Rev. 1 (05-2014)
Add a Network Device
1. Tap Menu >  Administrator Setup  > Network Devices Setup
2. In the Device Name  area, select the check box to the  left of the device you are adding.
3. Enter the device name in the Device Name  field.
4. In the  URL field, enter the URL of the device you are adding
.
5. Click  Menu, select  Network Device , and then select a network device. The web interface for this device
appears.

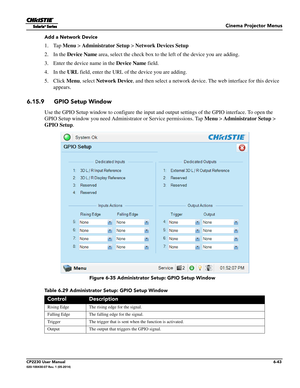

6.15.9 GPIO Setup...

6-44CP2230 User Manual020-100430-07 Rev. 1 (05-2014)
Cinema Projector Menus
6.15.10 Foot Lamberts Calibration Window
Use the Foot Lamberts Calibra tion wizard to calibrate the internal light  meter to Foot Lamberts. When you run
Foot Lamberts Calibration during a sh ow, the show stops. To run the Foot Lamberts Calibration wizard you
need Administrator or Service permissions. Tap  Menu > Administrator Setup  > Foot Lamberts
Calibration .

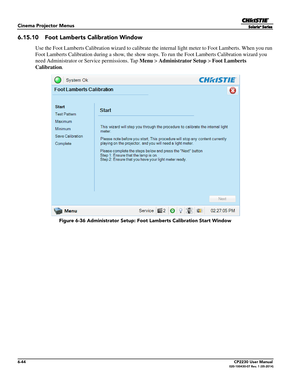

 Figure 6-36 Administrator Setup: Foot Lamberts Calibration Start...

Cinema Projector Menus
CP2230 User Manual6-45020-100430-07 Rev. 1 (05-2014)
6.15.11 User Accounts Window

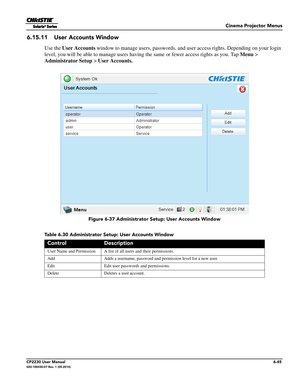

Use the User Accounts  window to manage users, passwords, and  user access rights. Depending on your login
level, you will be able to manage users having the same or fewer access rights as you. Tap  Menu >
Administrator Setup  > User Accounts.
Table 6.30 Administrator Se tup: User Accounts Window
ControlDescription
User Name and Permission A list of  all users and their permissions.
Add Adds a...

6-46CP2230 User Manual020-100430-07 Rev. 1 (05-2014)
Cinema Projector Menus

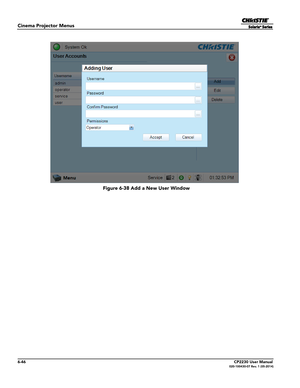

 Figure 6-38 Add a New User Window

Cinema Projector Menus
CP2230 User Manual6-47020-100430-07 Rev. 1 (05-2014)
6.15.12 Upgrade Window
Use the Upgrade window to upgrade the cinema projector software. You must have Administrator or Service
permissions to upgrade software
.

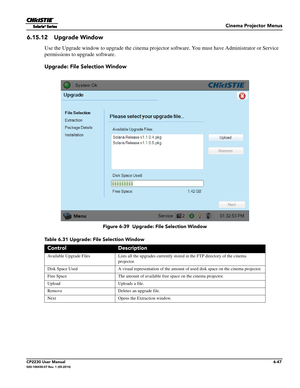

Upgrade: File Selection Window
Table 6.31 Upgrade: File Selection Window
Control Description
Available Upgrade Files Lists all the upgrades currently stored  in the FTP directory of the cinema
projector.
Disk Space Used A visual representation of the amount of used disk...

6-48CP2230 User Manual020-100430-07 Rev. 1 (05-2014)
Cinema Projector Menus

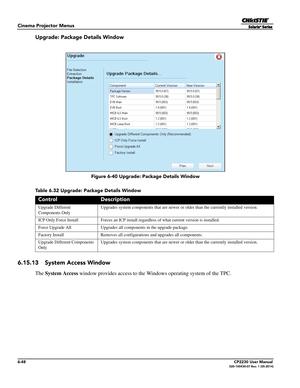

Upgrade: Package Details Window
Table 6.32 Upgrade: Package Details Window
6.15.13 System Access Window
The System Access  window provides access to the Wind ows operating system of the TPC.
Control Description
Upgrade Different
Components OnlyUpgrades system components that are newer or
 older than the currently installed version.
ICP Only Force Install Forces an ICP install rega rdless of what current version is installed....
