Christie Projector Mirage M Series User Manual

Section 1: Introduction
Mirage M Series User Manual1-3020-100575-02 Rev. 1  (11-2010)

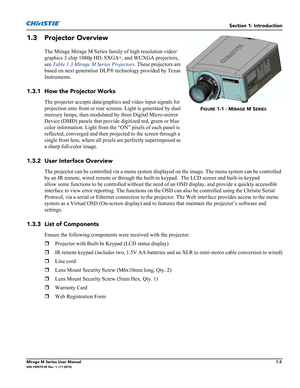

1.3 Projector Overview
The Mirage Mirage M Series family of high resolution video/
graphics 3 chip 1080p HD, SXGA+, and WUXGA projectors,
see Table 1.3 Mirage M Series Projectors. These projectors are
based on next generation DLP® technology provided by Texas
Instruments.
1.3.1 How the Projector Works
The projector accepts data/graphics and video input signals for
projection onto front or rear screens. Light is...

1-4Mirage M Series User Manual020-100575-02 Rev. 1   (11-2010)
Section 1: Introduction

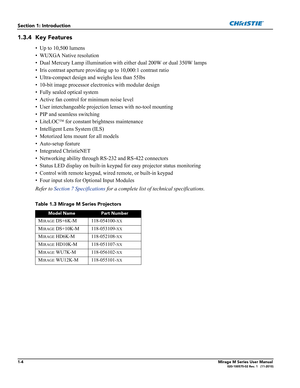

1.3.4 Key Features
• Up to 10,500 lumens
• WUXGA Native resolution
• Dual Mercury Lamp illumination with either dual 200W or dual 350W lamps
• Iris contrast aperture providing up to 10,000:1 contrast ratio
• Ultra-compact design and weighs less than 55lbs
• 10-bit image processor electronics with modular design
• Fully sealed optical system
• Active fan control for minimum noise level
• User interchangeable projection...

Section 1: Introduction
Mirage M Series User Manual1-5020-100575-02 Rev. 1  (11-2010)

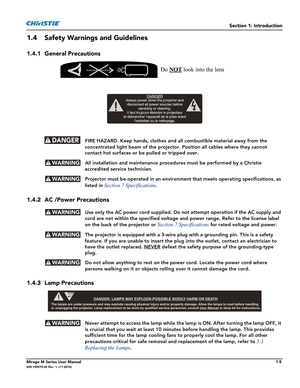

1.4 Safety Warnings and Guidelines
1.4.1 General Precautions
  FIRE HAZARD. Keep hands, clothes and all combustible material away from the
concentrated light beam of the projector. Position all cables where they cannot
contact hot surfaces or be pulled or tripped over.
  All installation and maintenance procedures must be performed by a Christie
accredited service technician.
  Projector must be operated in an...

Mirage M Series User Manual2-1020-100575-02  Rev. 1   (11-2010)

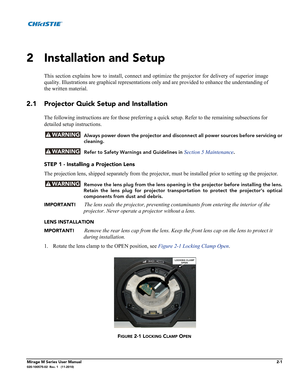

2 Installation and Setup
This section explains how to install, connect and optimize the projector for delivery of superior image
quality. Illustrations are graphical representations only and are provided to enhance the understanding of
the written material.
2.1 Projector Quick Setup and Installation
The following instructions are for those preferring a quick setup. Refer to the remaining subsections for
detailed setup instructions....

2-2Mirage M Series User Manual020-100575-02  Rev. 1  (11-2010)
Section 2: Installation and Setup

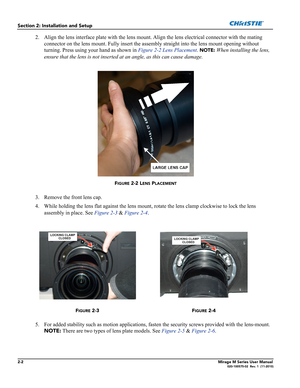

2. Align the lens interface plate with the lens mount. Align the lens electrical connector with the mating
connector on the lens mount. Fully insert the assembly straight into the lens mount opening without
turning. Press using your hand as shown in Figure 2-2 Lens Placement.
NOTE: When installing the lens,
ensure that the lens is not inserted at an angle, as this can cause damage.
3. Remove the front...

Section 2: Installation and Setup
Mirage M Series User Manual2-3020-100575-02  Rev. 1   (11-2010)

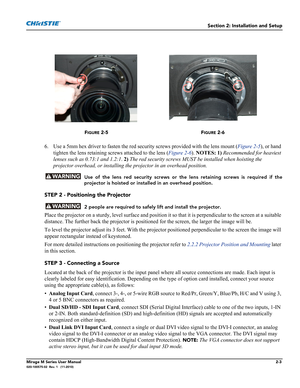

6. Use a 5mm hex driver to fasten the red security screws provided with the lens mount (Figure 2-5), or hand
tighten the lens retaining screws attached to the lens (Figure 2-6). NOTES: 1) Recommended for heaviest
lenses such as 0.73:1 and 1.2:1. 2) The red security screws MUST be installed when hoisting the
projector overhead, or installing the projector in an overhead position.
 Use of the lens red...

2-4Mirage M Series User Manual020-100575-02  Rev. 1  (11-2010)
Section 2: Installation and Setup

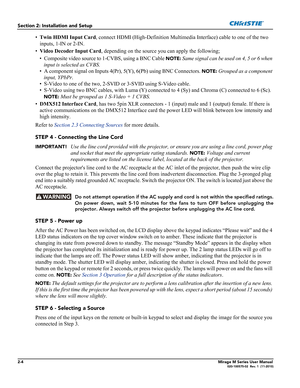

•Twin HDMI Input Card, connect HDMI (High-Definition Multimedia Interface) cable to one of the two
inputs, 1-IN or 2-IN.
•Video Decoder Input Card, depending on the source you can apply the following;
• Composite video source to 1-CVBS, using a BNC Cable
NOTE: Same signal can be used on 4, 5 or 6 when
input is selected as CVBS.
• A component signal on Inputs 4(Pr), 5(Y), 6(Pb) using BNC Connectors.
NOTE:...

Section 2: Installation and Setup
Mirage M Series User Manual2-5020-100575-02  Rev. 1   (11-2010)

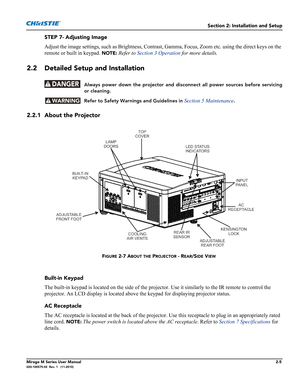

STEP 7- Adjusting Image
Adjust the image settings, such as Brightness, Contrast, Gamma, Focus, Zoom etc. using the direct keys on the
remote or built in keypad.
NOTE: Refer to Section 3 Operation for more details.
2.2 Detailed Setup and Installation
  Always power down the projector and disconnect all power sources before servicing
or cleaning.
  Refer to Safety Warnings and Guidelines in
Section 5...

2-6Mirage M Series User Manual020-100575-02  Rev. 1  (11-2010)
Section 2: Installation and Setup

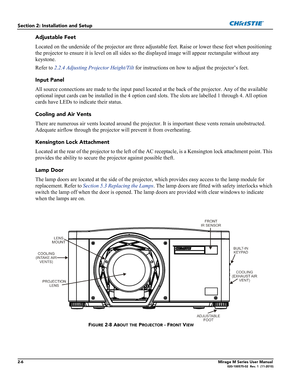

Adjustable Feet
Located on the underside of the projector are three adjustable feet. Raise or lower these feet when positioning
the projector to ensure it is level on all sides so the displayed image will appear rectangular without any
keystone.
Refer to 2.2.4 Adjusting Projector Height/Tilt for instructions on how to adjust the projector’s feet.
Input Panel
All source connections are made to the input...
