Page 201

3-9
Catalyst 6500 Series Ethernet Modules Installation Guide
OL-6265-04
Chapter 3      Installing Ethernet Switching Modules
  Installing an Ethernet Switching Module

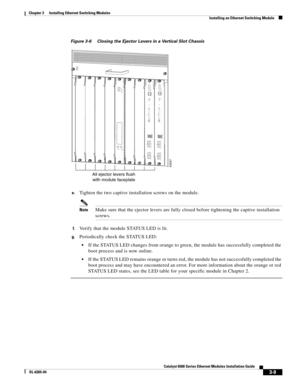

Figure 3-6 Closing the Ejector Levers in a Vertical Slot Chassis
e.
Tighten the two captive installation screws on the module.
NoteMake sure that the ejector levers are fully closed before tightening the captive installation
screws.
f.Verify that the module STATUS LED is lit.
g.Periodically check the STATUS LED:
If the STATUS LED changes...

Page 202

3-10
Catalyst 6500 Series Ethernet Modules Installation Guide
OL-6265-04
Chapter 3      Installing Ethernet Switching Modules

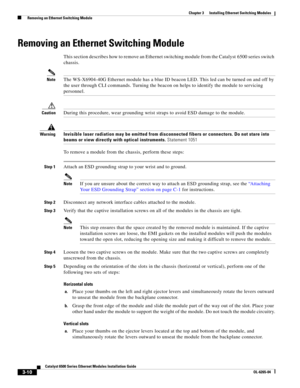

  Removing an Ethernet Switching Module
Removing an Ethernet Switching Module
This section describes how to remove an Ethernet switching module from the Catalyst  6500 series switch
chassis.
NoteThe WS-X6904-40G Ethernet module has a blue ID beacon LED. This led can be turned on and off by
the user through CLI commands. Turning the beacon on helps to identify the module to...

Page 203

3-11
Catalyst 6500 Series Ethernet Modules Installation Guide
OL-6265-04
Chapter 3      Installing Ethernet Switching Modules
  Installing Pluggable Transceivers
b.Grasp the edges of the module, and slide the module straight out of the slot. Do not touch the module
circuitry.
Step 6Place the removed module on an antistatic mat or in an antistatic bag, or immediately reinstall it in
another slot.
Step 7If the slot is to remain empty and is adjacent to either a WS-X68xx or WS-X69xx module, you must...

Page 204

3-12
Catalyst 6500 Series Ethernet Modules Installation Guide
OL-6265-04
Chapter 3      Installing Ethernet Switching Modules

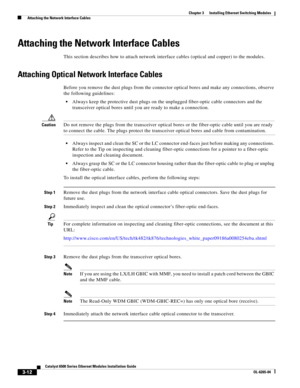

  Attaching the Network Interface Cables
Attaching the Network Interface Cables
This section describes how to attach network interface cables (optical and copper) to the modules.
Attaching Optical Network Interface Cables
Before you remove the dust plugs from the connector optical bores and make any connections, observe
the following guidelines:
Always keep the protective dust...

Page 205

3-13
Catalyst 6500 Series Ethernet Modules Installation Guide
OL-6265-04
Chapter 3      Installing Ethernet Switching Modules
  Attaching the Network Interface Cables

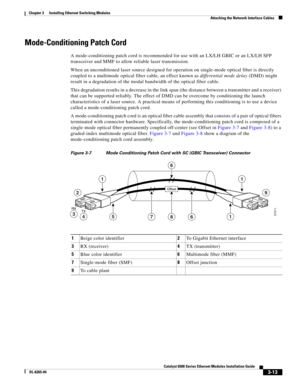

Mode-Conditioning Patch Cord
A mode-conditioning patch cord is recommended for use with an LX/LH GBIC or an LX/LH SFP
transceiver and MMF to allow reliable laser transmission.
When an unconditioned laser source designed for operation on single-mode optical fiber is directly
coupled to a multimode optical fiber cable, an effect known as...

Page 206

3-14
Catalyst 6500 Series Ethernet Modules Installation Guide
OL-6265-04
Chapter 3      Installing Ethernet Switching Modules
  Attaching the Network Interface Cables

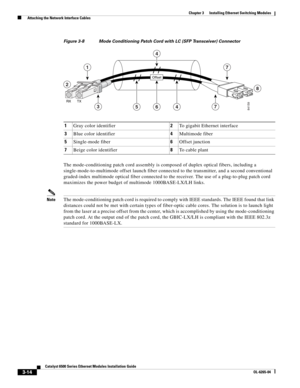

Figure 3-8 Mode Conditioning Patch Cord with LC (SFP Transceiver) Connector
The mode-conditioning patch cord assembly is composed of duplex optical fibers, including a
single-mode-to-multimode offset launch fiber connected to the transmitter, and a second conventional
graded-index multimode optical fiber connected to the receiver. The use...

Page 207

3-15
Catalyst 6500 Series Ethernet Modules Installation Guide
OL-6265-04
Chapter 3      Installing Ethernet Switching Modules
  Verifying the Installation

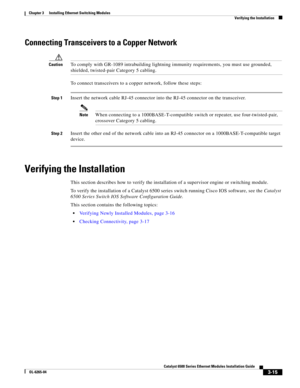

Connecting Transceivers to a Copper Network
CautionTo comply with GR-1089 intrabuilding lightning immunity requirements, you must use grounded,
shielded, twisted-pair Category 5 cabling.
To connect transceivers to a copper network, follow these steps:
Step 1Insert the network cable RJ-45 connector into the RJ-45 connector on the transceiver.
NoteWhen...

Page 208

3-16
Catalyst 6500 Series Ethernet Modules Installation Guide
OL-6265-04
Chapter 3      Installing Ethernet Switching Modules
  Verifying the Installation

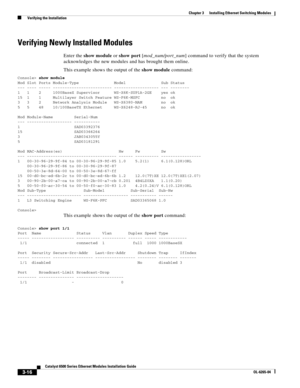

Verifying Newly Installed Modules
Enter the show module or show port [mod_num/port_num] command to verify that the system
acknowledges the new modules and has brought them online.
This example shows the output of the show module command:
Console> show module
Mod Slot Ports Module-Type               Model               Sub Status
--- ---- -----...

Page 209

3-17
Catalyst 6500 Series Ethernet Modules Installation Guide
OL-6265-04
Chapter 3      Installing Ethernet Switching Modules

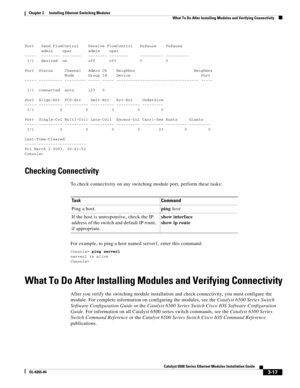

  What To Do After Installing Modules and Verifying Connectivity

Port   Send FlowControl    Receive FlowControl   RxPause    TxPause
       admin    oper       admin    oper
-----  -------- --------   -------- --------     ---------- ----------
 1/1   desired  on         off      off          0          0

Port  Status     Channel   Admin Ch    Neighbor...

Page 210

3-18
Catalyst 6500 Series Ethernet Modules Installation Guide
OL-6265-04
Chapter 3      Installing Ethernet Switching Modules
  What To Do After Installing Modules and Verifying Connectivity
