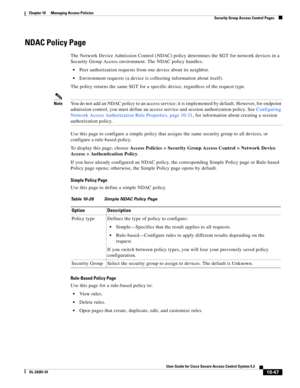

Cisco Acs 5x User Guide

10-47
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 10      Managing Access Policies
  Security Group Access Control Pages
NDAC Policy Page
The Network Device Admission Control (NDAC) policy determines the SGT for network devices in a
Security Group Access environment. The NDAC policy handles:
Peer authorization requests from one device about its neighbor.
Environment requests (a device is collecting information about itself).
The policy returns the same SGT for a specific...

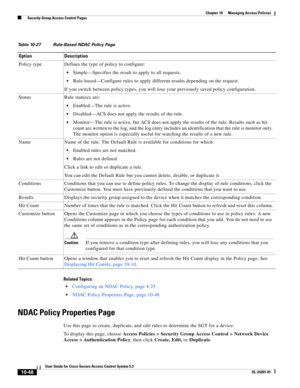

10-48
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 10      Managing Access Policies
  Security Group Access Control Pages
Related Topics:
Configuring an NDAC Policy, page 4-25
NDAC Policy Properties Page, page 10-48
NDAC Policy Properties Page
Use this page to create, duplicate, and edit rules to determine the SGT for a device.
To display this page, choose Access Policies > Security Group Access Control > Network Device
Access > Authentication Policy, then click Create,...

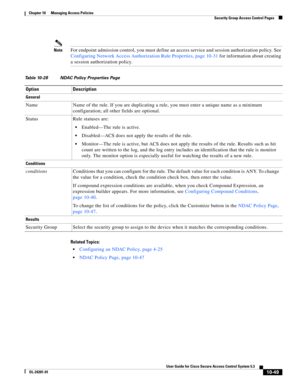

10-49
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 10      Managing Access Policies
  Security Group Access Control Pages
NoteFor endpoint admission control, you must define an access service and session authorization policy. See
Configuring Network Access Authorization Rule Properties, page 10-31 for information about creating
a session authorization policy.
Related Topics:
Configuring an NDAC Policy, page 4-25
NDAC Policy Page, page 10-47
Table 10-28 NDAC Policy...

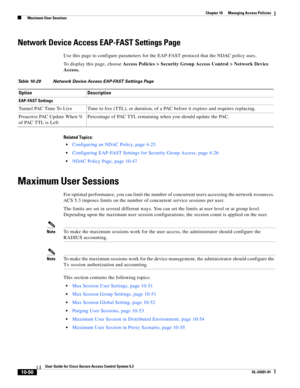

10-50
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 10      Managing Access Policies
  Maximum User Sessions
Network Device Access EAP-FAST Settings Page
Use this page to configure parameters for the EAP-FAST protocol that the NDAC policy uses.
To display this page, choose Access Policies > Security Group Access Control > Network Device
Access.
Related Topics:
Configuring an NDAC Policy, page 4-25
Configuring EAP-FAST Settings for Security Group Access, page 4-26
NDAC Policy...

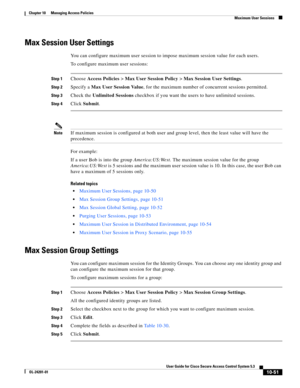

10-51
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 10      Managing Access Policies
  Maximum User Sessions
Max Session User Settings
You can configure maximum user session to impose maximum session value for each users.
To configure maximum user sessions:
Step 1Choose Access Policies > Max User Session Policy > Max Session User Settings.
Step 2Specify a Max User Session Value, for the maximum number of concurrent sessions permitted.
Step 3Check the Unlimited Sessions...

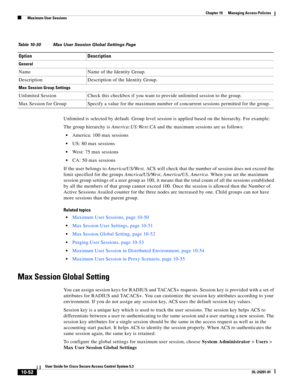

10-52
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 10      Managing Access Policies
  Maximum User Sessions
Unlimited is selected by default. Group level session is applied based on the hierarchy. For example:
The group hierarchy is America:US:West:CA and the maximum sessions are as follows:
America: 100 max sessions
US: 80 max sessions
West: 75 max sessions
CA: 50 max sessions
If the user belongs to America/US/West, ACS will check that the number of session does not exceed...

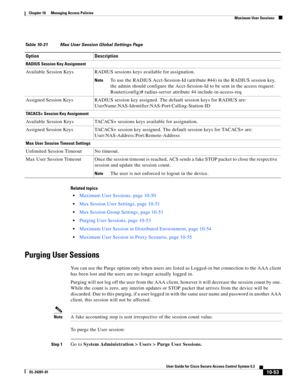

10-53
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 10      Managing Access Policies
  Maximum User Sessions
Related topics
Maximum User Sessions, page 10-50
Max Session User Settings, page 10-51
Max Session Group Settings, page 10-51
Purging User Sessions, page 10-53
Maximum User Session in Distributed Environment, page 10-54
Maximum User Session in Proxy Scenario, page 10-55
Purging User Sessions
You can use the Purge option only when users are listed as Logged-in but...

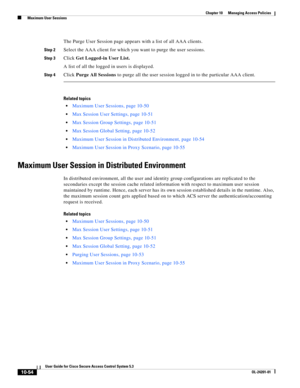

10-54
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 10      Managing Access Policies
  Maximum User Sessions
The Purge User Session page appears with a list of all AAA clients.
Step 2Select the AAA client for which you want to purge the user sessions.
Step 3Click Get Logged-in User List.
A list of all the logged in users is displayed.
Step 4Click Purge All Sessions to purge all the user session logged in to the particular AAA client.
Related topics
Maximum User Sessions, page...

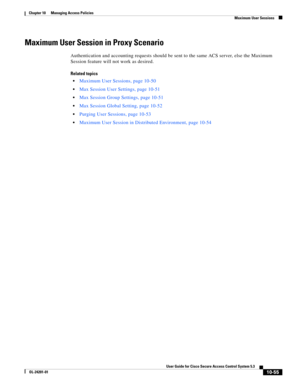

10-55
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 10      Managing Access Policies
  Maximum User Sessions
Maximum User Session in Proxy Scenario
Authentication and accounting requests should be sent to the same ACS server, else the Maximum
Session feature will not work as desired.
Related topics
Maximum User Sessions, page 10-50
Max Session User Settings, page 10-51
Max Session Group Settings, page 10-51
Max Session Global Setting, page 10-52
Purging User Sessions, page...

10-56
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 10      Managing Access Policies
  Maximum User Sessions
