Dell Sp2008wfp Users Guide

Back to Contents Page

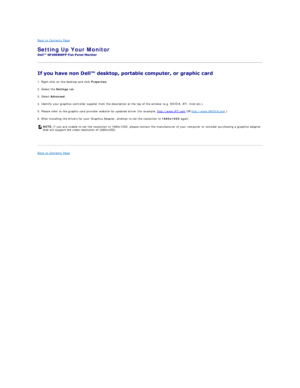

Setting Up Your Monitor


1. Right - click on the desktop and click  Properties .
2. Select the  Settings  tab.
3. Select  Advanced .
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Please refer to the graphic card provider website for updated driver (for example,  http://www.ATI.com  OR  http://www.NVIDIA.com  ).
6. After installing the drivers for your Graphics Adapter, attempt to...

Back to Contents Page

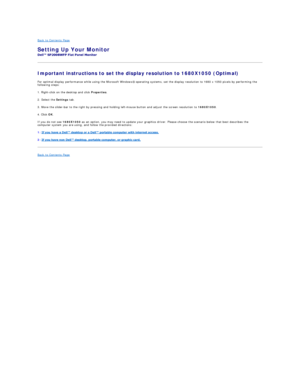

Setting Up Your Monitor

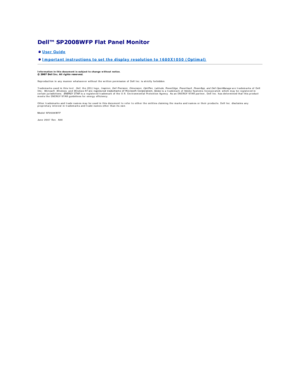

Important instructions to set the display resolution to 1680X1050 (Optimal)
For optimal display performance while using the Microsoft Windows ®  operating systems, set the display resolution to 1680 x 1050 pixels by performing the
following steps:
1. Right - click on the desktop and click  Properties .
2. Select the  Settings  tab.
3. Move the slider - bar to the right by pressing and holding left - mouse button and adjust the screen...


Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Inc.   is strictly forbidden.
Trademarks used in this text:  Dell , the  DELL  logo,  Inspiron ,  Dell Precision ,  Dimension ,  OptiPlex ,  Latitude, PowerEdge, PowerVault, PowerApp, and Dell OpenManage  are trademarks of Dell
Inc;   Microsoft, Windows,  and  Windows NT  are registered trademarks of Microsoft Corporation;  Adobe  is a trademark of Adobe...

Back to Contents Page

Setting Up Your Monitor

   Connecting Your Monitor
   Installing the Webcam Application
   Using the Front Panel
   Using the OSD Menu
   Setting the Optimal Resolution
   Using the Dell Soundbar (Optional)

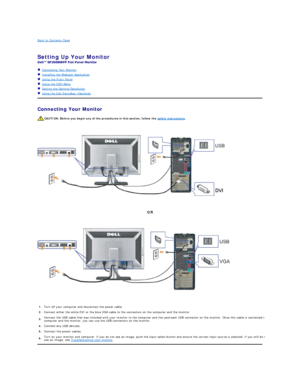

Connecting Your Monitor


 CAUTION: Before you begin any of the procedures in this section, follow the  safety instructions .
OR
1. Turn off your computer and disconnect the power cable.
2.  Connect either the white DVI or the blue VGA cable to the...

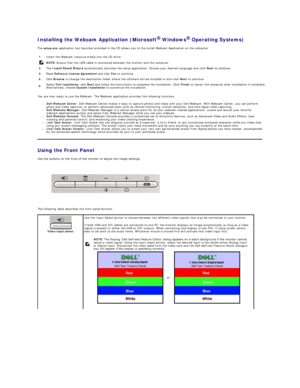

Installing the Webcam Application (Microsoft   Windows   Operating Systems)
The  setup.exe  application tool launcher provided in the CD allows you to the install Webcam Application on the computer.
You are now ready to use the Webcam. The Webcam application provides the following functions.
l Dell Webcam Center : Dell Webcam Center makes it easy to capture photos and video with your Dell Webcam. With Webcam Center, you can perform
photo and video captures, or perform advanced tasks such as remote...

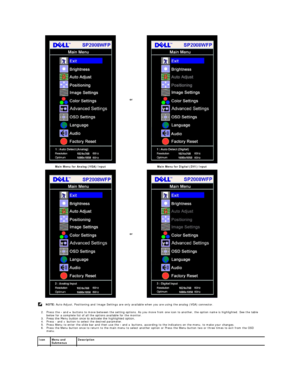

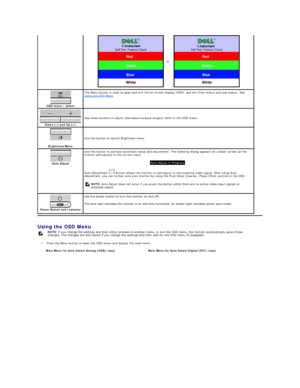

Using the OSD Menu
1. Press the Menu button to open the OSD menu and display the main menu.      or

OSD menu / select    The Menu button is used to open and exit the on - screen display (OSD), and exit from menus and sub - menus. See
Using the OSD Menu .

Down ( - ) and Up (+)  Use these buttons to adjust (decrease/increase ranges) items in the OSD menu.
Brightness Menu   Use this button to launch Brightness menu.

Auto Adjust Use this button to activate automatic setup and adjustment. The...


2. Press the  -  and  +  buttons to move between the setting options. As you move from one icon to another, the option name is highlighted. See the table
below for a complete list of all the options available for the monitor.
3. Press the Menu button once to activate the highlighted option.
4. Press  -  and + button to select the desired parameter.
5. Press Menu to enter the slide bar and then use the  -  and  +  buttons, according to the indicators on the menu, to make your changes.
6....

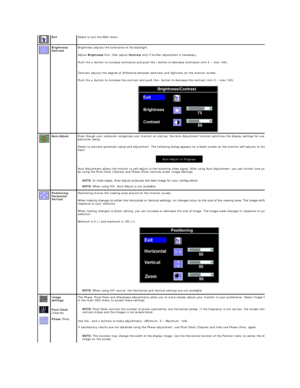

  Exit   Select to exit the Main menu.
  Brightness/
Contrast   Brightness adjusts the luminance of the backlight.
Adjust  Brightness  first, then adjust  Contrast  only if further adjustment is necessary.
Push the  +  button to increase luminance and push the  -  button to decrease luminance (min 0 ~ max 100).

Contrast adjusts the degree of difference between darkness and lightness on the monitor screen.
Push the  +  button to increase the contrast and push the  -  button to decrease the...

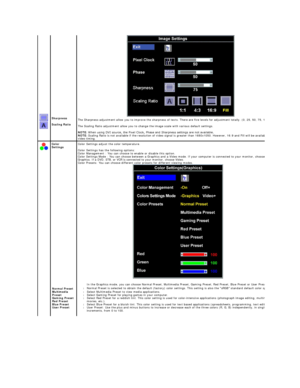

Sharpness

Scaling Ratio   The Sharpness adjustment allow you to improve the sharpness of texts. There are five levels for adjustment totally. (0, 25, 50, 75, 100)

The Scaling Ratio adjustment allow you to change the image scale with various default settings.

NOTE:   When using DVI...

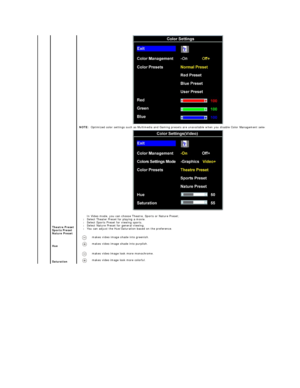

Theatre Preset
Sports Preset
Nature Preset



Hue




Saturation


In Video mode, you can choose Theatre, Sports or Nature Preset;
l Select Theater Preset for playing a movie.
l Select Sports Preset for viewing sports.
l...
