Dukane Imagepro 8776-W Lcd Projector Users Manual

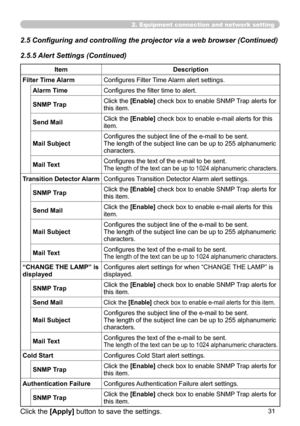

2. Equipment connection and network setting
2.5.5 Alert Settings (Continued)
ItemDescription
Filter Time AlarmConfigures Filter Time Alarm alert settings.
Alarm TimeConfigures the filter time to alert.
SNMP TrapClick the [Enable] check box to enable SNMP Trap alerts for this item.
Send Mail Click the [Enable] check box to enable e-mail alerts for this item.
Mail SubjectConfigures the subject line of the e-mail to be sent.The length of the subject line can be up to 255 alphanumeric...

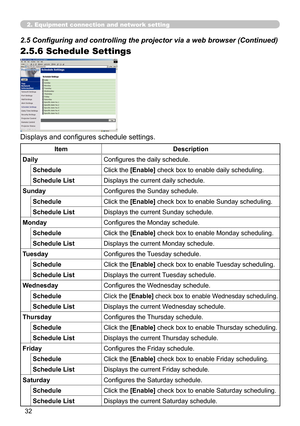

2. Equipment connection and network setting
2.5.6 Schedule Settings
Displays and configures schedule settings.
ItemDescription
DailyConfigures the daily schedule.
ScheduleClick the [Enable] check box to enable daily scheduling.
Schedule ListDisplays the current daily schedule.
SundayConfigures the Sunday schedule.
ScheduleClick the [Enable] check box to enable Sunday scheduling.
Schedule ListDisplays the current Sunday schedule.
MondayConfigures the Monday schedule.
ScheduleClick the...

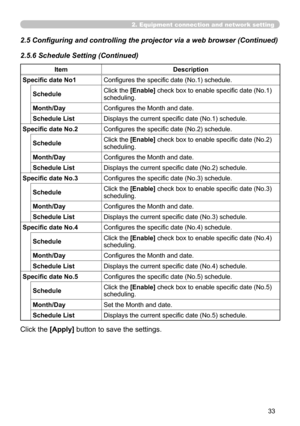

2. Equipment connection and network setting
2.5.6 Schedule Setting (Continued)
ItemDescription
Specific date No1Configures the specific date (No.1) schedule.
ScheduleClick the [Enable] check box to enable specific date (No.1) scheduling.
Month/DayConfigures the Month and date.
Schedule ListDisplays the current specific date (No.1) schedule.
Specific date No.2Configures the specific date (No.2) schedule.
Click the [Apply] button to save the settings.
ScheduleClick the [Enable] check box to...

34

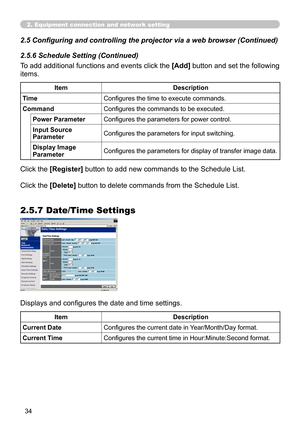

2. Equipment connection and network setting
To add additional functions and events click the [Add] button and set the following
items.
ItemDescription
TimeConfigures the time to execute commands.
CommandConfigures the commands to be executed.
Power ParameterConfigures the parameters for power control.
Input Source ParameterConfigures the parameters for input switching.
Display Image ParameterConfigures the parameters for display of transfer image data.
Click the [Register] button to add new...

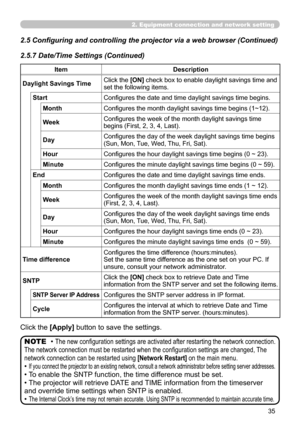

2. Equipment connection and network setting
2.5.7 Date/Time Settings (Continued)
Click the [Apply] button to save the settings.
ItemDescription
Daylight Savings TimeClick the [ON] check box to enable daylight savings time and set the following items.
SNTP Server IP AddressConfigures the SNTP server address in IP format.
CycleConfigures the interval at which to retrieve Date and Time information from the SNTP server. (hours:minutes).
StartConfigures the date and time daylight savings time...



2. Equipment connection and network setting

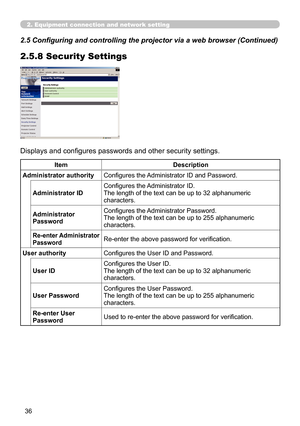

2.5.8 Security Settings
ItemDescription
Administrator authorityConfigures the Administrator ID and Password.
Administrator IDConfigures the Administrator ID.The length of the text can be up to 32 alphanumeric characters.
Administrator Password
Configures the Administrator Password.The length of the text can be up to 255 alphanumeric characters.
Re-enter Administrator
PasswordRe-enter the above password for verification.
Displays and configures...

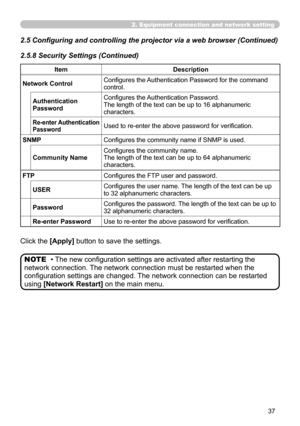

2. Equipment connection and network setting
Click the [Apply] button to save the settings.
Authentication Password
Configures the Authentication Password.The length of the text can be up to 16 alphanumeric characters.
Re-enter Authentication PasswordUsed to re-enter the above password for verification.
SNMPConfigures the community name if SNMP is used.
Community NameConfigures the community name.The length of the text can be up to 64 alphanumeric characters.
• The new configuration settings...

38

2. Equipment connection and network setting

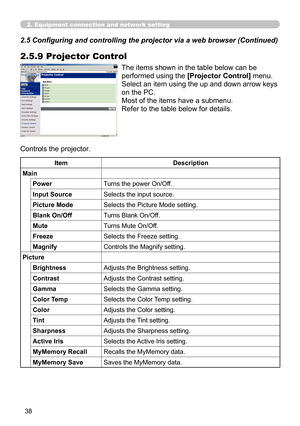

2.5.9 Projector Control
The items shown in the table below can be
performed using the [Projector Control] menu.
Select an item using the up and down arrow keys
on the PC.
Most of the items have a submenu.
Refer to the table below for details.
Controls the projector.
ItemDescription
Main
PowerTurns the power On/Off.
Input SourceSelects the input source.
Picture ModeSelects the Picture Mode setting.
Blank On/OffTurns Blank On/Off.
MuteTurns Mute On/Off....

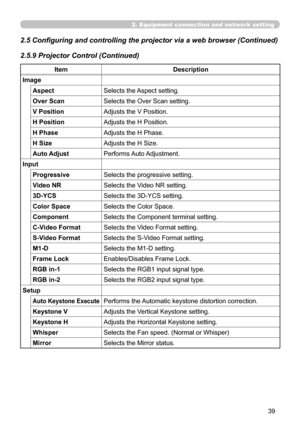

2. Equipment connection and network setting
2.5.9 Projector Control (Continued)
ItemDescription
AspectSelects the Aspect setting.
Over ScanSelects the Over Scan setting.
V PositionAdjusts the V Position.
H PositionAdjusts the H Position.
H PhaseAdjusts the H Phase.
H SizeAdjusts the H Size.
Auto AdjustPerforms Auto Adjustment.
Input
ProgressiveSelects the progressive setting.
Video NRSelects the Video NR setting.
3D-YCSSelects the 3D-YCS setting.
Color SpaceSelects the Color Space....

40

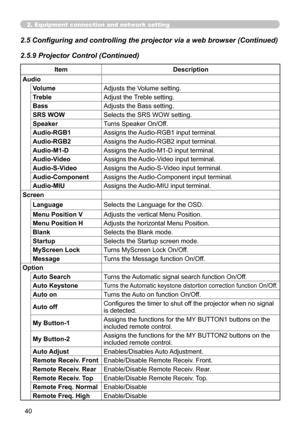

2. Equipment connection and network setting
Option
LanguageSelects the Language for the OSD.
Menu Position VAdjusts the vertical Menu Position.
Menu Position HAdjusts the horizontal Menu Position.
BlankSelects the Blank mode.
StartupSelects the Startup screen mode.
MyScreen LockTurns MyScreen Lock On/Off.
MessageTurns the Message function On/Off.
Auto SearchTurns the Automatic signal search function On/Off.
Auto KeystoneTurns the Automatic keystone distortion correction function On/Off.
Auto onTurns...
