Page 71

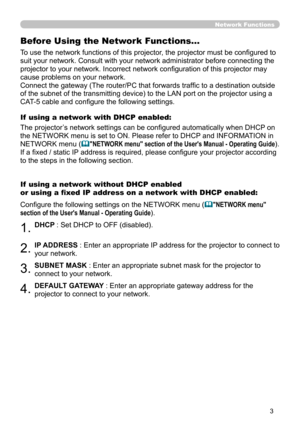

![Page 71
3
Network Functions
Before Using the Network Functions…
To use the network functions of this projector, the projector must be configured to
suit your network. Consult with your network administrator before connec\
ting the
projector to your network. Incorrect network configuration of this projector may
cause problems on your network.
Connect the gateway (The router/PC that forwards traffic to a destination outside
of the subnet of the transmitting device) to the LAN port on the projector using a...](http://img.usermanuals.tech/thumb/5762/88496/w300_dukane-imagepro-8782-manual_d-70.png "Page 71
3
Network Functions
Before Using the Network Functions…
To use the network functions of this projector, the projector must be configured to
suit your network. Consult with your network administrator before connec\
ting the
projector to your network. Incorrect network configuration of this projector may
cause problems on your network.
Connect the gateway (The router/PC that forwards traffic to a destination outside
of the subnet of the transmitting device) to the LAN port on the projector using a...")
3 Network Functions Before Using the Network Functions… To use the network functions of this projector, the projector must be configured to suit your network. Consult with your network administrator before connec\ ting the projector to your network. Incorrect network configuration of this projector may cause problems on your network. Connect the gateway (The router/PC that forwards traffic to a destination outside of the subnet of the transmitting device) to the LAN port on the projector using a...
Page 72
![Page 72
4
Configuring and Controlling the Projector via a Web Browser
You can adjust or control the projector via a network from a web browser \
on a PC
that is connected to the same network.
• Internet Explorer 5.5 or later or Netscape 6.2 or later are required.
• If JavaScript is disabled in your web browser configuration, you must enable
JavaScript in order to use the projector web pages properly. See the Help files
for your web browser for details on how to enable JavaScript.
• If projector is...](http://img.usermanuals.tech/thumb/5762/88496/w300_dukane-imagepro-8782-manual_d-71.png "Page 72
4
Configuring and Controlling the Projector via a Web Browser
You can adjust or control the projector via a network from a web browser \
on a PC
that is connected to the same network.
• Internet Explorer 5.5 or later or Netscape 6.2 or later are required.
• If JavaScript is disabled in your web browser configuration, you must enable
JavaScript in order to use the projector web pages properly. See the Help files
for your web browser for details on how to enable JavaScript.
• If projector is...")
4 Configuring and Controlling the Projector via a Web Browser You can adjust or control the projector via a network from a web browser \ on a PC that is connected to the same network. • Internet Explorer 5.5 or later or Netscape 6.2 or later are required. • If JavaScript is disabled in your web browser configuration, you must enable JavaScript in order to use the projector web pages properly. See the Help files for your web browser for details on how to enable JavaScript. • If projector is...
Page 73

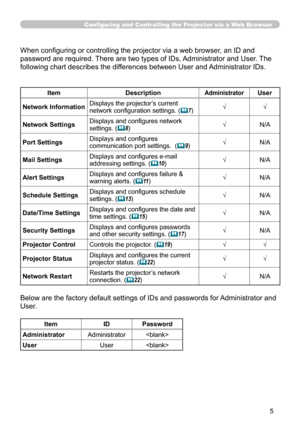

5 Configuring and Controlling the Projector via a Web Browser When configuring or controlling the projector via a web browser, an ID and password are required. There are two types of IDs, Administrator and User. The following chart describes the differences between User and Administrator IDs. Below are the factory default settings of IDs and passwords for Administrator and User. ItemDescriptionAdministratorUser Network InformationDisplays the projector’s current network configuration settings....
Page 74

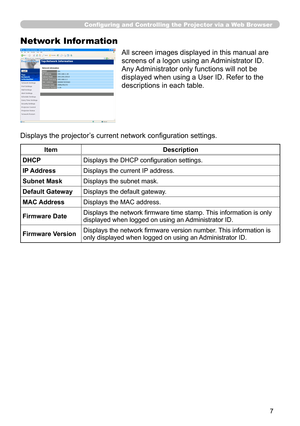

![Page 74
6
Configuring and Controlling the Projector via a Web Browser
Refer to the following for configuring or controlling the projector via a web browser.
Example: If the IP address of the projector is set to 192.168.1.10:
) Enter
"http://192.168.1.10/" into the
address bar of the web browser and
press "Enter" key or click "Go" button.
The screen in Fig. will be displayed.
2)
Enter your ID and password and click
[Logon].
If the logon is successful, either the...](http://img.usermanuals.tech/thumb/5762/88496/w300_dukane-imagepro-8782-manual_d-73.png "Page 74
6
Configuring and Controlling the Projector via a Web Browser
Refer to the following for configuring or controlling the projector via a web browser.
Example: If the IP address of the projector is set to 192.168.1.10:
) Enter
\"http://192.168.1.10/\" into the
address bar of the web browser and
press \"Enter\" key or click \"Go\" button.
The screen in Fig. will be displayed.
2)
Enter your ID and password and click
[Logon].
If the logon is successful, either the...")

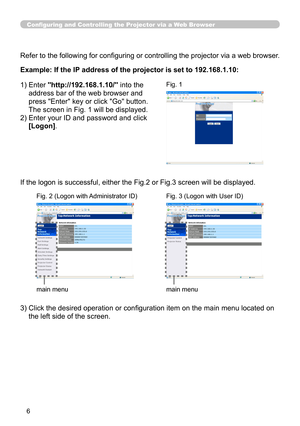

6 Configuring and Controlling the Projector via a Web Browser Refer to the following for configuring or controlling the projector via a web browser. Example: If the IP address of the projector is set to 192.168.1.10: ) Enter "http://192.168.1.10/" into the address bar of the web browser and press "Enter" key or click "Go" button. The screen in Fig. will be displayed. 2) Enter your ID and password and click [Logon]. If the logon is successful, either the...
Page 75

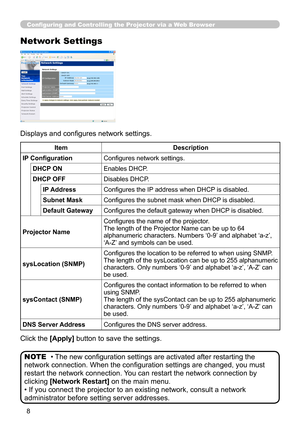

Configuring and Controlling the Projector via a Web Browser Network Information All screen images displayed in this manual are screens of a logon using an Administrator ID. Any Administrator only functions will not be displayed when using a User ID. Refer to the descriptions in each table. Displays the projector’s current network configuration settings. ItemDescription DHCPDisplays the DHCP configuration settings. IP AddressDisplays the current IP address. Subnet MaskDisplays the subnet mask....
Page 76

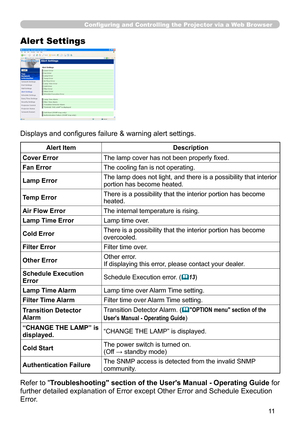

![Page 76
Configuring and Controlling the Projector via a Web Browser
Network Settings
Displays and configures network settings.
Click the [Apply] button to save the settings.
• The new configuration settings are activated after restarting the
network connection. When the configuration settings are changed, you must
restart the network connection. You can restart the network connection by
clicking [Network Restart] on the main menu.
• If you connect the projector to an existing network, consult a netw\...](http://img.usermanuals.tech/thumb/5762/88496/w300_dukane-imagepro-8782-manual_d-75.png "Page 76
Configuring and Controlling the Projector via a Web Browser
Network Settings
Displays and configures network settings.
Click the [Apply] button to save the settings.
• The new configuration settings are activated after restarting the
network connection. When the configuration settings are changed, you must
restart the network connection. You can restart the network connection by
clicking [Network Restart] on the main menu.
• If you connect the projector to an existing network, consult a netw\...")
Configuring and Controlling the Projector via a Web Browser Network Settings Displays and configures network settings. Click the [Apply] button to save the settings. • The new configuration settings are activated after restarting the network connection. When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu. • If you connect the projector to an existing network, consult a netw\...
Page 77

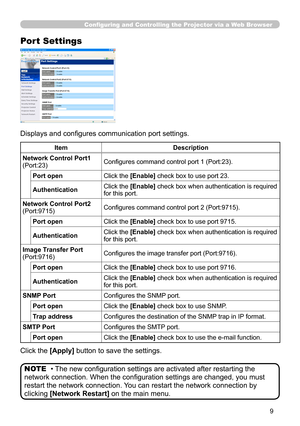

![Page 77
9
Configuring and Controlling the Projector via a Web Browser
Port Settings
Displays and configures communication port settings.
Click the [Apply] button to save the settings.
• The new configuration settings are activated after restarting the
network connection. When the configuration settings are changed, you must
restart the network connection. You can restart the network connection by
clicking [Network Restart] on the main menu.
NOTE
ItemDescription
Network Control Port1 (Port:23)Configures...](http://img.usermanuals.tech/thumb/5762/88496/w300_dukane-imagepro-8782-manual_d-76.png "Page 77
9
Configuring and Controlling the Projector via a Web Browser
Port Settings
Displays and configures communication port settings.
Click the [Apply] button to save the settings.
• The new configuration settings are activated after restarting the
network connection. When the configuration settings are changed, you must
restart the network connection. You can restart the network connection by
clicking [Network Restart] on the main menu.
NOTE
ItemDescription
Network Control Port1 (Port:23)Configures...")
9 Configuring and Controlling the Projector via a Web Browser Port Settings Displays and configures communication port settings. Click the [Apply] button to save the settings. • The new configuration settings are activated after restarting the network connection. When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu. NOTE ItemDescription Network Control Port1 (Port:23)Configures...
Page 78

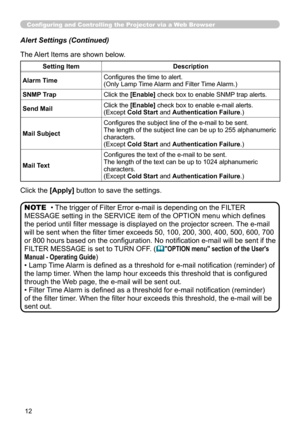

![Page 78
10
Mail Settings
Displays and configures e-mail addressing settings.
Click the [Apply] button to save the settings.
• You can confirm whether the mail settings work correctly using the
[Send Test Mail] button. Please enable Send mail setting before clicking [Send
Test Mail].
• If you connect the projector to an existing network, consult a netw\
ork
administrator before setting server addresses.
NOTE
ItemDescription
Send mailClick the [Enable] check box to use the e-mail function. Configure the...](http://img.usermanuals.tech/thumb/5762/88496/w300_dukane-imagepro-8782-manual_d-77.png "Page 78
10
Mail Settings
Displays and configures e-mail addressing settings.
Click the [Apply] button to save the settings.
• You can confirm whether the mail settings work correctly using the
[Send Test Mail] button. Please enable Send mail setting before clicking [Send
Test Mail].
• If you connect the projector to an existing network, consult a netw\
ork
administrator before setting server addresses.
NOTE
ItemDescription
Send mailClick the [Enable] check box to use the e-mail function. Configure the...")
10 Mail Settings Displays and configures e-mail addressing settings. Click the [Apply] button to save the settings. • You can confirm whether the mail settings work correctly using the [Send Test Mail] button. Please enable Send mail setting before clicking [Send Test Mail]. • If you connect the projector to an existing network, consult a netw\ ork administrator before setting server addresses. NOTE ItemDescription Send mailClick the [Enable] check box to use the e-mail function. Configure the...
Page 79

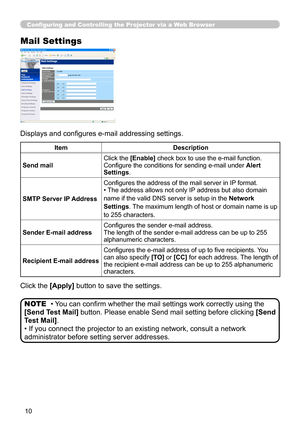

Configuring and Controlling the Projector via a Web Browser Alert Settings Displays and configures failure & warning alert settings. Alert ItemDescription Cover ErrorThe lamp cover has not been properly fixed. Fan ErrorThe cooling fan is not operating. Lamp ErrorThe lamp does not light, and there is a possibility that interior portion has become heated. Temp ErrorThere is a possibility that the interior portion has become heated. Air Flow ErrorThe internal temperature is rising. Lamp Time...
Page 80

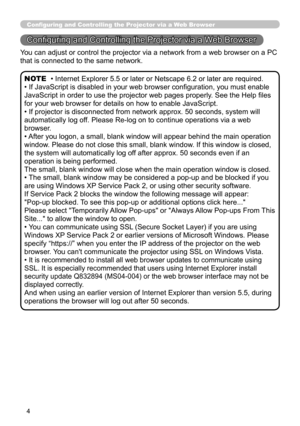

![Page 80
Alert Settings (Continued)
Setting ItemDescription
Alarm TimeConfigures the time to alert.(Only Lamp Time Alarm and Filter Time Alarm.)
SNMP TrapClick the [Enable] check box to enable SNMP trap alerts.
Send MailClick the [Enable] check box to enable e-mail alerts.(Except Cold Start and Authentication Failure.)
Mail Subject
Configures the subject line of the e-mail to be sent. The length of the subject line can be up to 255 alphanumeric characters.(Except Cold Start and Authentication...](http://img.usermanuals.tech/thumb/5762/88496/w300_dukane-imagepro-8782-manual_d-79.png "Page 80
Alert Settings (Continued)
Setting ItemDescription
Alarm TimeConfigures the time to alert.(Only Lamp Time Alarm and Filter Time Alarm.)
SNMP TrapClick the [Enable] check box to enable SNMP trap alerts.
Send MailClick the [Enable] check box to enable e-mail alerts.(Except Cold Start and Authentication Failure.)
Mail Subject
Configures the subject line of the e-mail to be sent. The length of the subject line can be up to 255 alphanumeric characters.(Except Cold Start and Authentication...")
Alert Settings (Continued) Setting ItemDescription Alarm TimeConfigures the time to alert.(Only Lamp Time Alarm and Filter Time Alarm.) SNMP TrapClick the [Enable] check box to enable SNMP trap alerts. Send MailClick the [Enable] check box to enable e-mail alerts.(Except Cold Start and Authentication Failure.) Mail Subject Configures the subject line of the e-mail to be sent. The length of the subject line can be up to 255 alphanumeric characters.(Except Cold Start and Authentication...
