Dukane Imagepro 8805 Liquid Crystal Projector Users Manual

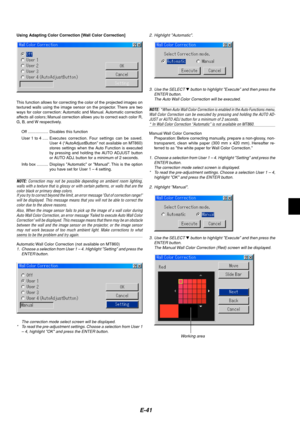

E-41
Using Adapting Color Correction [Wall Color Correction]
The correction mode select screen will be displayed.
* To read the pre-adjustment settings. Choose a selection from User 1
– 4, highlight OK and press the ENTER button.
3. Use the SELECT  button to highlight Execute and then press the
ENTER button.
The Auto Wall Color Correction will be executed.
NOTE: *When Auto Wall Color Correction is enabled in the Auto Functions menu,
Wall Color Correction can be executed by pressing and holding the AUTO...

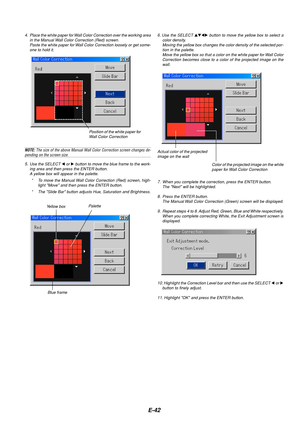

E-42
6. Use the SELECT
 button to move the yellow box to select a
color density.
Moving the yellow box changes the color density of the selected por-
tion in the palette.
Move the yellow box so that a color on the white paper for Wall Color
Correction becomes close to a color of the projected image on the
wall.
Actual color of the projected
image on the wall
Color of the projected image on the white
paper for Wall Color Correction
7. When you complete the correction, press the ENTER button.
The Next...

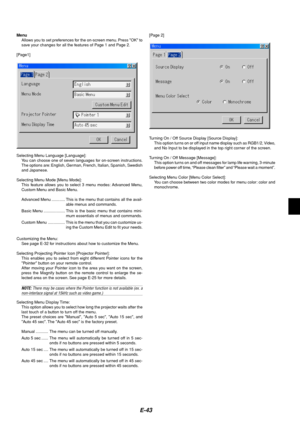

E-43
Menu
Allows you to set preferences for the on-screen menu. Press OK to
save your changes for all the features of Page 1 and Page 2.
[Page1]
Selecting Menu Language [Language]:
You can choose one of seven languages for on-screen instructions.
The options are: English, German, French, Italian, Spanish, Swedish
and Japanese.
Selecting Menu Mode [Menu Mode]:
This feature allows you to select 3 menu modes: Advanced Menu,
Custom Menu and Basic Menu.
Advanced Menu ............ This is the menu that...

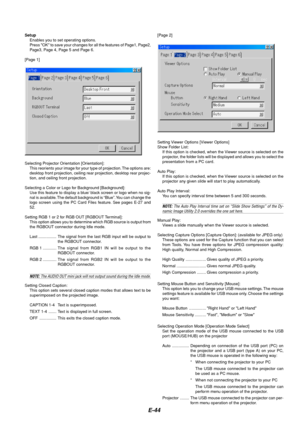

E-44
Setup
Enables you to set operating options.
Press OK to save your changes for all the features of Page1, Page2,
Page3, Page 4, Page 5 and Page 6.
[Page 1][Page 2]
Selecting Projector Orientation [Orientation]:
This reorients your image for your type of projection. The options are:
desktop front projection, ceiling rear projection, desktop rear projec-
tion, and ceiling front projection.
Selecting a Color or Logo for Background [Background]:
Use this feature to display a blue/ black screen or logo...

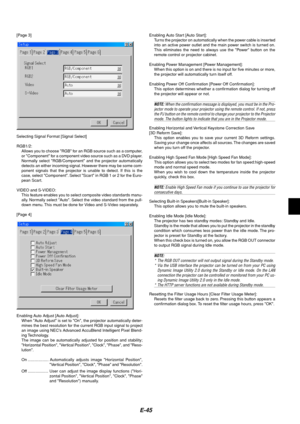

E-45
[Page 3]
Selecting Signal Format [Signal Select]
RGB1/2:
Allows you to choose RGB for an RGB source such as a computer,
or Component for a component video source such as a DVD player.
Normally select RGB/Component and the projector automatically
detects an either incoming signal. However there may be some com-
ponent signals that the projector is unable to detect. If this is the
case, select Component. Select Scart in RGB 1 or 2 for the Euro-
pean Scart.
VIDEO and S-VIDEO:
This feature enables you...

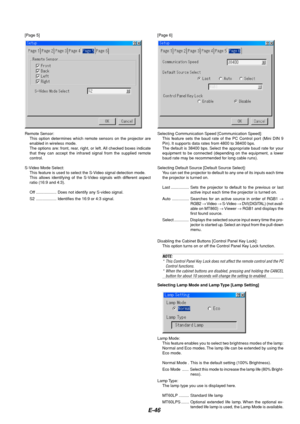

E-46
[Page 6]
Selecting Communication Speed [Communication Speed]:
This feature sets the baud rate of the PC Control port (Mini DIN 9
Pin). It supports data rates from 4800 to 38400 bps.
The default is 38400 bps. Select the appropriate baud rate for your
equipment to be connected (depending on the equipment, a lower
baud rate may be recommended for long cable runs).
Selecting Default Source [Default Source Select]:
You can set the projector to default to any one of its inputs each time
the projector is...

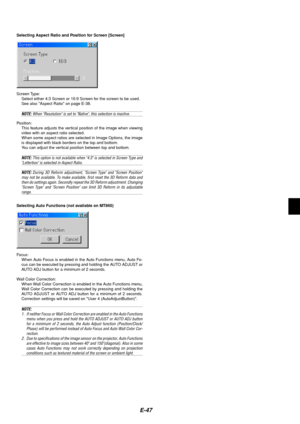

E-47
Selecting Auto Functions (not available on MT860)
Focus:
When Auto Focus is enabled in the Auto Functions menu, Auto Fo-
cus can be executed by pressing and holding the AUTO ADJUST or
AUTO ADJ button for a minimum of 2 seconds.
Wall Color Correction:
When Wall Color Correction is enabled in the Auto Functions menu,
Wall Color Correction can be executed by pressing and holding the
AUTO ADJUST or AUTO ADJ button for a minimum of 2 seconds.
Correction settings will be saved on User 4...

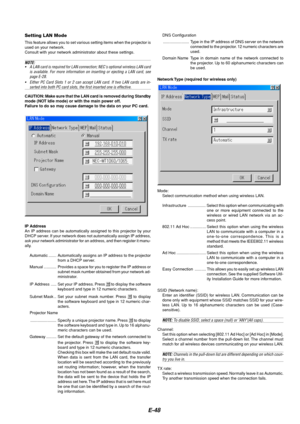

E-48
Setting LAN Mode
This feature allows you to set various setting items when the projector is
used on your network.
Consult with your network administrator about these settings.
NOTE:
• A LAN card is required for LAN connection; NECs optional wireless LAN card
is available. For more information on inserting or ejecting a LAN card, see
page E-28.
• Either PC Card Slots 1 or 2 can accept LAN card. If two LAN cards are in-
serted into both PC card slots, the first inserted one is effective.
CAUTION: Make...

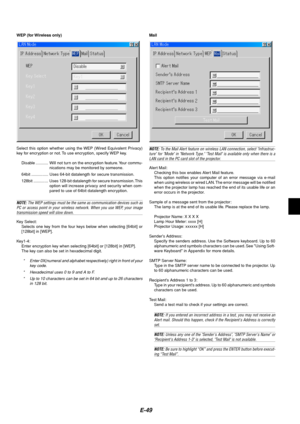

E-49
WEP (for Wireless only)
Select this option whether using the WEP (Wired Equivalent Privacy)
key for encryption or not. To use encryption, specify WEP key.
Disable ........... Will not turn on the encryption feature. Your commu-
nications may be monitored by someone.
64bit ............... Uses 64-bit datalength for secure transmission.
128bit ............. Uses 128-bit datalength for secure transmission. This
option will increase privacy and security when com-
pared to use of 64bit datalength...

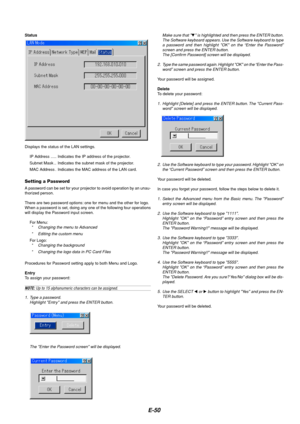

E-50
Status
Displays the status of the LAN settings.
IP Address ..... Indicates the IP address of the projector.
Subnet Mask .. Indicates the subnet mask of the projector.
MAC Address . Indicates the MAC address of the LAN card.
Setting a Password
A password can be set for your projector to avoid operation by an unau-
thorized person.
There are two password options: one for menu and the other for logo.
When a password is set, doing any one of the following four operations
will display the Password input...
