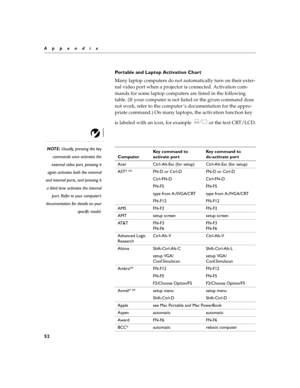

Appendix
Portable and Laptop Activation Chart
Many laptop computers do not automatically turn on their exter-
nal video port when a projector is connected. Activation com-
mands for some laptop computers are listed in the following
table. (If your computer is not listed or the given command does
not work, refer to the computer ’s documentation for the appro-
priate command.) On many laptops, the activation function key
is labeled with an icon, for example   or the text CRT/LCD.
NOTE: Usually,...

53

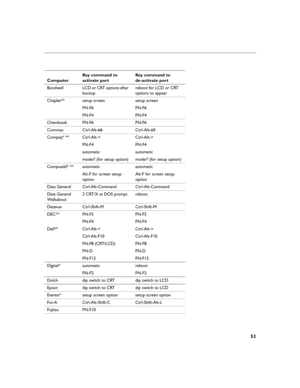

Bondwell LCD or CRT options after
bootupreboot for LCD or CRT
options to appear
Chaplet** setup screen setup screen
FN-F6 FN-F6
FN-F4 FN-F4
Chembook FN-F6 FN-F6
Commax Ctrl-Alt-#6 Ctrl-Alt-#5
Compaq* ** Ctrl-Alt-< Ctrl-Alt->
FN-F4 FN-F4
automatic automatic
mode/? (for setup option) mode/? (for setup option)
Compuadd* ** automatic automatic
Alt-F for screen setup
optionAlt-F for screen setup
option
Data General Ctrl-Alt-Command Ctrl-Alt-Command
Data General
Wa l k a b o u t2 CRT/X at DOS prompt...

54

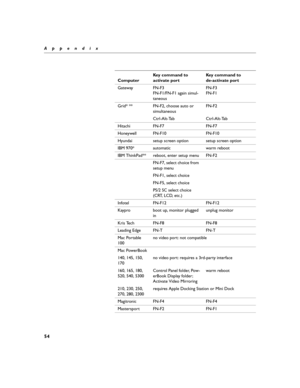

Appendix
Gateway FN-F3
FN-F1/FN-F1 again simul-
taneousFN-F3
FN-F1
Grid* ** FN-F2, choose auto or
simultaneousFN-F2
Ctrl-Alt-Tab Ctrl-Alt-Tab
Hitachi FN-F7 FN-F7
Honeywell FN-F10 FN-F10
Hyundai setup screen option setup screen option
IBM 970* automatic warm reboot
IBM ThinkPad** reboot, enter setup menu FN-F2
FN-F7, select choice from
setup menu
FN-F1, select choice
FN-F5, select choice
PS/2 SC select choice
(CRT, LCD, etc.)
Infotel FN-F12 FN-F12
Kaypro boot up, monitor plugged
inunplug monitor...

55

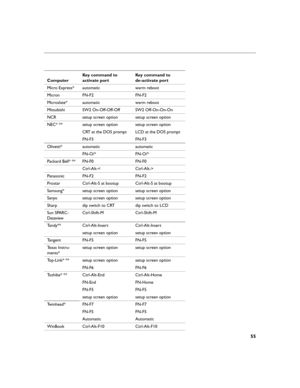

Micro Express* automatic warm reboot
Micron FN-F2 FN-F2
Microslate* automatic warm reboot
Mitsubishi SW2 On-Off-Off-Off SW2 Off-On-On-On
NCR setup screen option setup screen option
NEC* ** setup screen option setup screen option
CRT at the DOS prompt LCD at the DOS prompt
FN-F3 FN-F3
Olivetti* automatic automatic
FN-O/* FN-O/*
Packard Bell* ** FN-F0 FN-F0
Ctrl-Alt-< Ctrl-Alt->
Panasonic FN-F2 FN-F2
Prostar Ctrl-Alt-S at bootup Ctrl-Alt-S at bootup
Samsung* setup screen option setup screen option
Sanyo...

56

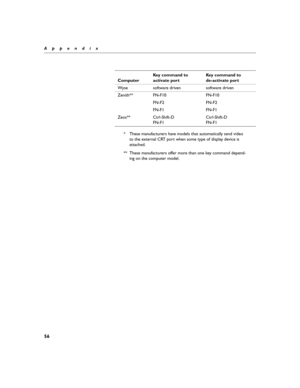

Appendix
* These manufacturers have models that automatically send video
to the external CRT port when some type of display device is
attached.
** These manufacturers offer more than one key command depend-
ing on the computer model. Wyse software driven software driven
Zenith** FN-F10 FN-F10
FN-F2 FN-F2
FN-F1 FN-F1
Zeos** Ctrl-Shift-D
FN-F1Ctrl-Shift-D
FN-F1 ComputerKey command to
activate portKey command to
de-activate port

57

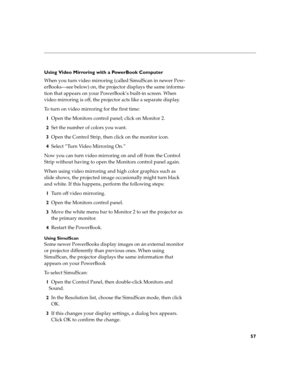

Using Video Mirroring with a PowerBook Computer
When you turn video mirroring (called SimulScan in newer Pow-
erBooks—see below) on, the projector displays the same informa-
tion that appears on your PowerBook’s built-in screen. When
video mirroring is off, the projector acts like a separate display.
To turn on video mirroring for the first time:
1Open the Monitors control panel; click on Monitor 2.
2Set the number of colors you want.
3Open the Control Strip, then click on the monitor icon.
4Select...

58

59

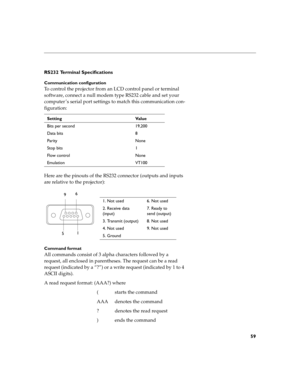

RS232 Terminal Specifications
Communication configuration
To control the projector from an LCD control panel or terminal
software, connect a null modem type RS232 cable and set your
computer ’s serial port settings to match this communication con-
figuration:
Here are the pinouts of the RS232 connector (outputs and inputs
are relative to the projector):
Command format
All commands consist of 3 alpha characters followed by a
request, all enclosed in parentheses. The request can be a read
request...

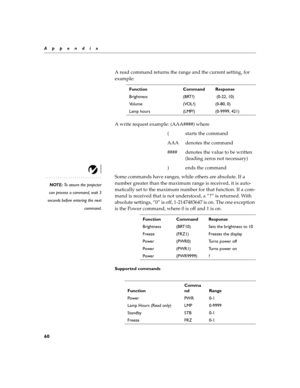

60
Appendix
A read command returns the range and the current setting, for
example:
A write request example: (AAA####) where
( starts the command
AAA denotes the command
#### denotes the value to be written
(leading zeros not necessary)
)ends the command
NOTE: To assure the projector
can process a command, wait 3
seconds before entering the next
command.
Some commands have ranges, while others are absolute. If a
number greater than the maximum range is received, it is auto-
matically set to the maximum...
