Liquid Crystal Projector
USERS MANUAL USERS MANUAL
ENGLISH-1
Thank you for purchasing this liquid crystal projector.

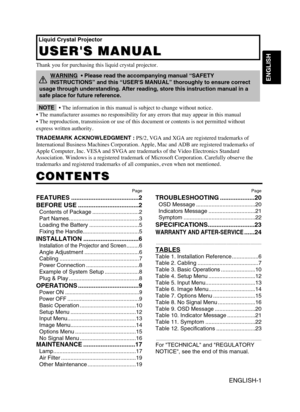

CONTENTS CONTENTS
Page
FEATURES .......................................2
BEFORE USE ...................................2

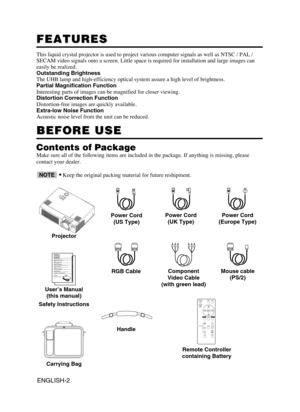

Contents of Package ..............................2
Part Names.............................................3
Loading the Battery ................................5
Fixing the Handle....................................5
INSTALLATION...

ENGLISH-2
FEATURES FEATURES
This liquid crystal projector is used to project various computer signals as well as NTSC / PAL /
SECAM video signals onto a screen. Little space is required for installation and large images can
easily be realized.
Outstanding Brightness
The UHB lamp and high-efficiency optical system assure a high level of brightness.
Partial Magnification Function
Interesting parts of images can be magnified for closer viewing.
Distortion Correction Function
Distortion-free images are...

ENGLISH-3
B B B B
E E E E
F F F F
O O O O
R R R R
E E E E

U U U U
S S S S
E E E E

( ( ( (
c c c c
o o o o
n n n n
t t t t
i i i i
n n n n
u u u u
e e e e
d d d d
) ) ) )
ENGLISH

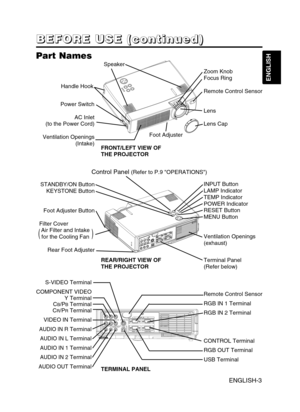

Part Names
Control Panel (Refer to P.9 OPERATIONS)
Power Switch
AC Inlet
(to the Power Cord)
Ventilation Openings
(Intake)Zoom Knob
Focus Ring
Remote Control Sensor
Lens
Lens Cap
FRONT/LEFT VIEW OF
THE PROJECTOR
Speaker
Handle Hook
STANDBY/ON Button
KEYSTONE Button
Foot Adjuster Button
Filter Cover
Air Filter and...

ENGLISH-4
B B B B
E E E E
F F F F
O O O O
R R R R
E E E E

U U U U
S S S S
E E E E

( ( ( (
c c c c
o o o o
n n n n
t t t t
i i i i
n n n n
u u u u
e e e e
d d d d
) ) ) )

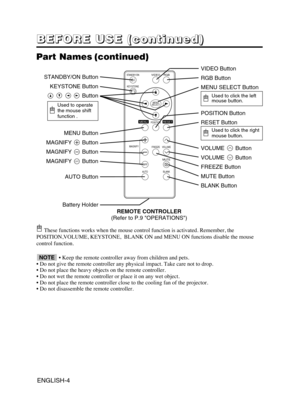

REMOTE CONTROLLER
(Refer to P.9 OPERATIONS)
• Keep the remote controller away from children and pets.
• Do not give the remote controller any physical impact. Take care not to drop.
• Do not place the heavy objects on the remote controller.
• Do not wet the remote controller or place it on any wet object.
• Do not place...

ENGLISH-5
B B B B
E E E E
F F F F
O O O O
R R R R
E E E E

U U U U
S S S S
E E E E

( ( ( (
c c c c
o o o o
n n n n
t t t t
i i i i
n n n n
u u u u
e e e e
d d d d
) ) ) )
ENGLISH

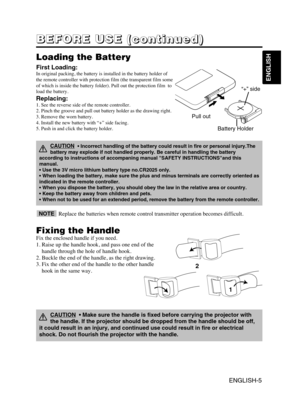

Replace the batteries when remote control transmitter operation becomes difficult.NOTE
CAUTION• Make sure the handle is fixed before carrying the projector with
the handle. If the projector should be dropped from the handle should be off,
it could result in an injury, and continued use could result in fire or...

ENGLISH-6
INSTALLATION INSTALLATION

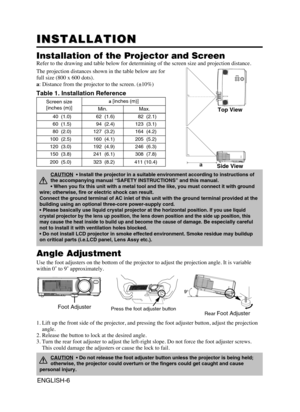

Installation of the Projector and Screen
Refer to the drawing and table below for determining of the screen size and projection distance.
Top View
Side View
Screen size
[inches (m)]a[inches (m)]
Min.Max.
40  (1.0)62  (1.6)82  (2.1)
60  (1.5)94  (2.4)123  (3.1)
80  (2.0)127  (3.2)164  (4.2)
100  (2.5)160  (4.1)205  (5.2)
120  (3.0)192  (4.9)246  (6.3)
150  (3.8)241  (6.1)308  (7.8)
200  (5.0)323  (8.2)411 (10.4)
Angle Adjustment
Use the foot adjusters on the bottom of...

ENGLISH-7
ENGLISH
I I I I
N N N N
S S S S
T T T T
A A A A
L L L L
L L L L
A A A A
T T T T
I I I I
O O O O
N N N N

( ( ( (
c c c c
o o o o
n n n n
t t t t
i i i i
n n n n
u u u u
e e e e
d d d d
) ) ) )

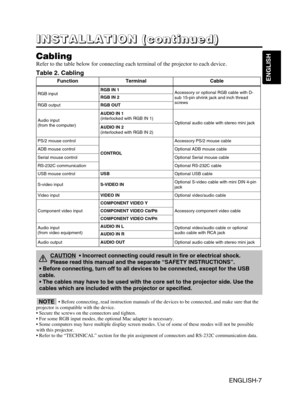

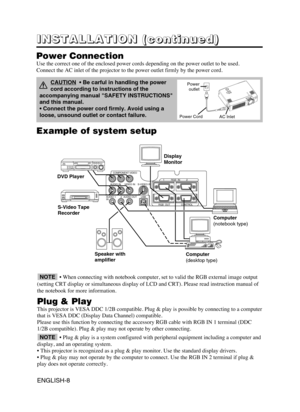

• Before connecting, read instruction manuals of the devices to be connected, and make sure that the
projector is compatible with the device.
• Secure the screws on the connectors and tighten.
• For some RGB input modes, the optional Mac adapter is necessary.
• Some computers may have multiple...

AUDIO INCOMPONENT VIDEO
VIDEO IN S-VIDEO IN
AUDIO
INAUDIO OUT
112
2USBRGB  IN
RGB  OUTCONTROL
Example of system setup
S-Video Tape
Recorder
Computer
(notebook type)
• When connecting with notebook computer, set to valid the RGB external image output
(setting CRT display or simultaneous display of LCD and CRT). Please read instruction manual of
the notebook for more information.
Plug & Play
This projector is VESA DDC 1/2B compatible. Plug & play is possible by connecting to a computer
that is VESA DDC...

ENGLISH-9
ENGLISH
ENGLISH-9
OPERATIONS OPERATIONS

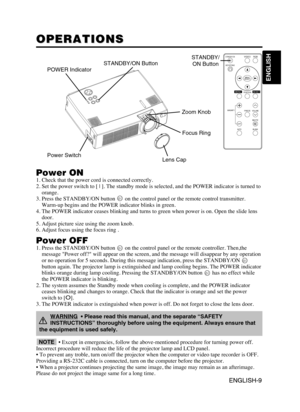

Power ON1. Check that the power cord is connected correctly.
2. Set the power switch to [ | ]. The standby mode is selected, and the POWER indicator is turned to
orange.
3. Press the STANDBY/ON button  on the control panel or the remote control transmitter.
Warm-up begins and the POWER indicator blinks in green.
4. The POWER indicator ceases blinking and turns to green when power is on. Open the slide lens
door.
5. Adjust picture size using the zoom...

ENGLISH-10ENGLISH-10
O O O O
P P P P
E E E E
R R R R
A A A A
T T T T
I I I I
O O O O
N N N N
S S S S

( ( ( (
c c c c
o o o o
n n n n
t t t t
i i i i
n n n n
u u u u
e e e e
d d d d
) ) ) )

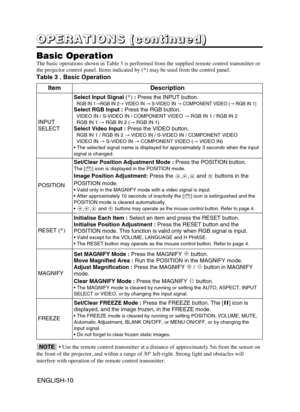

Basic Operation
The basic operations shown in Table 3 is performed from the supplied remote control transmitter or
the projector control panel. Items indicated by (*) may be used from the control panel.
Table 3 . Basic Operation
ItemDescription
INPUT
SELECT
Select Input Signal (*):Press the INPUT button.RGB IN...
