Dukane Liquid Crystal Projector 8049a/8755 Users Manual

Liquid Crystal Projector
28A8049A/8755
USERS MANUALVol.2 ExtendedPlease read this users manual thoroughly to ensure correct usage throug\
h understanding.
STANDBY/ON
INPUTKEYSTON
E
RESETLANP
TENP
POWER
ENGLISH
TECHNICAL
$1\
&YUFOEFE




 1.

 Ö”´

ENGLISH
1
LCD Projector 28A8049A/8755
USERS MANUAL
USERS MANUAL  Vol.2 (Extended)
Thank you for purchasing this projector.
• The information in this manual is subject to change without notice.\
• The manufacturer assumes no responsibility for any errors that may \
appear in this manual
• The reproduction, transmission or use of this document or contents is no\
t permitted without express written authority.
TRADEMARK ACKNOWLEDGEMENT :
• PS/2, VGA and XGA are registered trademarks of the International...

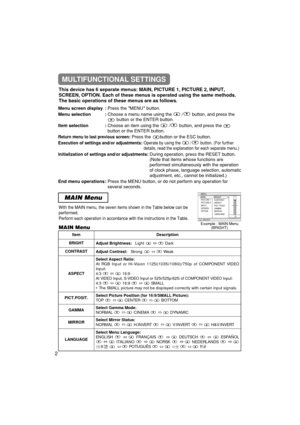

MAIN Menu
ItemDescription
BRIGHT Adjust Brightness:Light Dark
CONTRASTAdjust Contrast:Strong Weak
ASPECT
Select Aspect Ratio:
At RGB Input or Hi-Vision 1125i(1035i/1080i)/750p of COMPONENT VIDEO
Input:
4:3
16:9At VIDEO Input, S-VIDEO Input or 525i/525p/625i of COMPONENT VIDEO Input:4:3 16:9 SMALL
• The SMALL picture may not be displayed correctly with certain input signals.
PICT.POSIT.Select Picture Position (for 16:9/SMALL Picture):
TOP CENTER BOTTOM
GAMMASelect Gamma Mode:
NORMAL CINEMA DYNAMIC...

ENGLISH

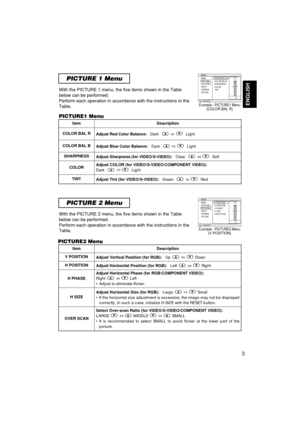

PICTURE 1 Menu
PICTURE 2 Menu
With the PICTURE 1 menu, the five items shown in the Table
below can be performed.
Perform each operation in accordance with the instructions in the
Table.
With the PICTURE 2 menu, the five items shown in the Table
below can be performed.
Perform each operation in accordance with the instructions in the
Table.
ItemDescription
COLOR BAL R Adjust Red Color Balance:Dark Light
COLOR BAL BAdjust Blue Color Balance:Dark Light
SHARPNESSAdjust Sharpness (for...

MULTIFUNCTIONAL SETTINGS (continued)

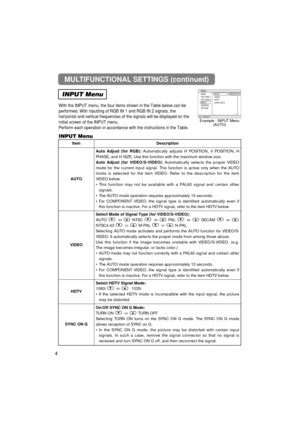

INPUT Menu
With the INPUT menu, the four items shown in the Table below can be
performed. With inputting of RGB IN 1 and RGB IN 2 signals, the
horizontal and vertical frequencies of the signals will be displayed on the
initial screen of the INPUT menu.
Perform each operation in accordance with the instructions in the Table.
4
ItemDescription
AUTO
Auto Adjust (for RGB):Automatically adjusts H POSITION, V POSITION, H
PHASE, and H SIZE. Use this function with the...

ENGLISH

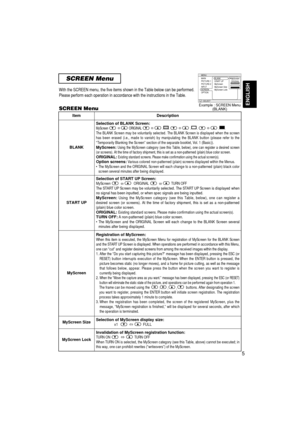

SCREEN Menu
With the SCREEN menu, the five items shown in the Table below can be performed.
Please perform each operation in accordance with the instructions in the Table.
5 SCREEN Menu
ItemDescription
BLANK
Selection of BLANK Screen:MyScreen ORIGINAL .. . . ..The BLANK Screen may be voluntarily selected. The BLANK Screen is displayed when the screen
has been erased (i.e., made to vanish) by manipulating the BLANK button (please refer to the
“Temporarily Blanking the Screen” section of the...

MULTIFUNCTIONAL SETTINGS (continued)

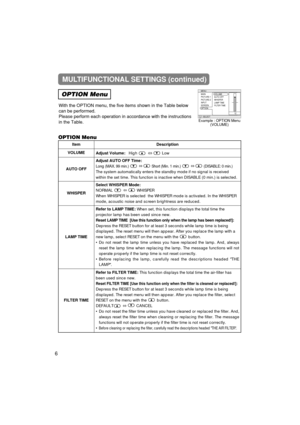

OPTION Menu
With the OPTION menu, the five items shown in the Table below
can be performed.
Please perform each operation in accordance with the instructions
in the Table.
MENU
: SELECT
MAIN
PICTURE-1
PICTURE-2
INPUT
SCREEN
OPTIONVOLUME
AUTO OFF
WHISPER
LAMP TIME
FILTER TIME
12
ItemDescription
VOLUMEAdjust Volume:High Low
AUTO OFF
Adjust AUTO OFF Time:
Long (MAX. 99 min.) Short (Min. 1 min.) (DISABLE: 0 min.)
The system automatically enters the standby mode if no...

ENGLISH

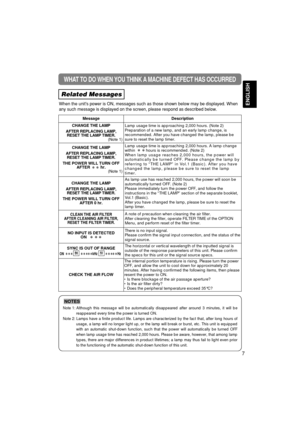

WHAT TO DO WHEN YOU THINK A MACHINE DEFECT HAS OCCURRED
Related Messages
When the units power is ON, messages such as those shown below may be displayed. When
any such message is displayed on the screen, please respond as described below.
7
Note 1: Although this message will be automatically disappeared after around 3 minutes, it will be
reappeared every time the power is turned ON.
Note 2: Lamps have a finite product life. Lamps are characterized by the fact that, after long hours of
usage, a...

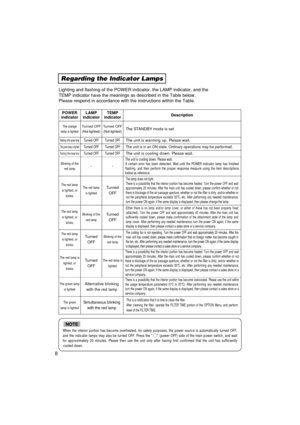

Regarding the Indicator Lamps
Lighting and flashing of the POWER indicator, the LAMP indicator, and the
TEMP indicator have the meanings as described in the Table below.
Please respond in accordance with the instructions within the Table.
POWER
indicatorLAMP
indicatorTEMP
indicatorDescription
The orange
lamp is lightedTurned OFF
(Not lighted)Turned OFF
(Not lighted)The STANDBY mode is set
Flashing of the green lampTurned OFFTurned OFFThe unit is warming up. Please wait.
The green lamp is lightedTurned...
