Page 41

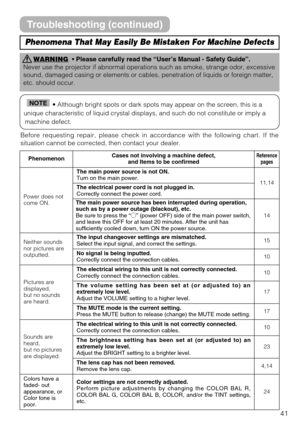

41 WARNING• Please carefully read the “User’s Manual - Safety Guide”. Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. Phenomena That May Easily Be Mistaken For Machine Defects • Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and such do not constitute or imply a machine defect.NOTE Before...
Page 42

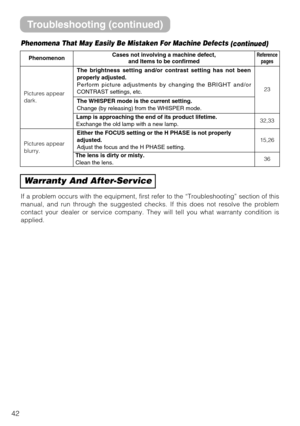

42 PhenomenonCases not involving a machine defect, and Items to be confirmedReference pages Pictures appear dark. The brightness setting and/or contrast setting has not been properly adjusted. Perform picture adjustments by changing the BRIGHT and/or CONTRAST settings, etc. 23 The WHISPER mode is the current setting. Change (by releasing) from the WHISPER mode. Lamp is approaching the end of its product lifetime. Exchange the old lamp with a new lamp.32,33 Pictures appear blurry. Either the FOCUS...
Page 43
43 • This specifications are subject to change without notice.NOTE ItemSpecification Product nameLiquid crystal projector Liquid crystal panelPanel size1.4 cm (0.55 type) Drive systemTFT active matrix Pixels480,000 pixels (800 horizontal x 600 vertical) LensZoom lens F=1.6 ~ 1.8 f=16.8 ~ 20.1 mm Lamp130W UHB Speaker1.0W Power supplyAC100 ~ 120V, 2.4A / AC220 ~ 240V, 1.1A Power consumption220W Temperature range0 ~ 35°C (Operating) Size332 (W) x 92 (H) x 254 (D) mm (Not including protruding parts) Weight...
Page 45
1 In this section, the technical information about this projector is descr\ ibed.• The in\borm\ftion in \tthis m\fnu\fl is subje\tct to ch\fnge without n\totice. • The m\fnu\b\fcturer \fss\tumes no responsibili\tty \bor \fny errors th\ft m\t\fy \fppe\fr in this m\fn\tu\fl. • The reproduction, t\tr\fnsmission or use o\b \tthis document or conte\tnts is not permitted \twithout express written \futhor\tity. RADEMARK ACKNOWLEDGEMENT : • VGA \fnd XGA \fre re\tgistered tr\fdem\frks o\b t\the Intern\ftion\fl...
Page 46

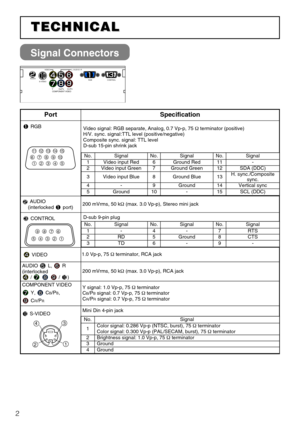

2 Signal Connectors L-AUDIO-R VIDEO S-VIDEO AUDIO Y COMPONENT VIDEOCB/PBCR/PR RGBCONTROL PortSpecification RGB Video signal: RGB separate, Analog, 0.7 Vp-p, 75 Ωterminator (positive) H/V. sync. signal:TTL level (positive/negative) Composite sync. signal: TTL level D-sub 15-pin shrink jack AUDIO (interlocked port)200 mVrms, 50 kΩ(max. 3.0 Vp-p), Stereo mini jack CONTROLD-sub 9-pin plug VIDEO1.0 Vp-p, 75 Ωterminator, RCA jack AUDIO L, R (interlocked // ) 200 mVrms, 50 kΩ(max....

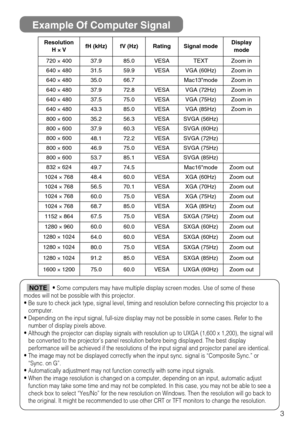

Page 47
3 Example Of Computer Signal Resolution H × × VfH (kHz)fV (Hz)RatingSignal modeDisplay mode 720 ×40037.985.0VESATEXTZoom in 640 ×48031.559.9VESAVGA (60Hz)Zoom in 640 ×48035.066.7Mac13modeZoom in 640 ×48037.972.8VESAVGA (72Hz)Zoom in 640 ×48037.575.0VESAVGA (75Hz)Zoom in 640 ×48043.385.0VESAVGA (85Hz)Zoom in 800 ×60035.256.3VESASVGA (56Hz) 800 ×60037.960.3VESASVGA (60Hz) 800 ×60048.172.2VESASVGA (72Hz) 800 ×60046.975.0VESASVGA (75Hz) 800 ×60053.785.1VESASVGA (85Hz) 832 ×62449.774.5Mac16modeZoom out 1024...
Page 48

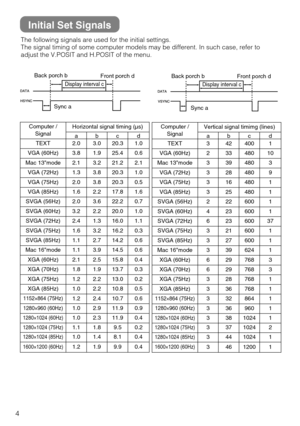

4 Initial Set Signals The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, refer to adjust the V.POSIT and H.POSIT of the menu. DATA HSYNCDATA VSYNCDisplay interval c Back porch b Sync aFront porch d Display interval c Back porch b Sync aFront porch d Computer / SignalHorizontal signal timing (µs) abcd TEXT2.03.020.31.0 VGA (60Hz)3.81.925.40.6 Mac 13mode2.13.221.22.1 VGA (72Hz)1.33.820.31.0 VGA (75Hz)2.03.820.30.5 VGA...
Page 49

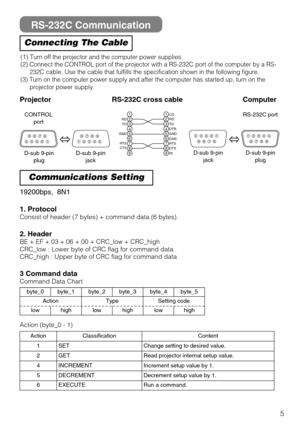

5 RS-232C Communication 19200bps, 8N1 1. Protocol Consist of header (7 bytes) + command data (6 bytes). 2. Header BE + EF + 03 + 06 + 00 + CRC_low + CRC_high CRC_low : Lower byte of CRC flag for command data CRC_high : Upper byte of CRC flag for command data 3 Command data Command Data Chart Connecting The Cable Communications Setting (1) Turn off the projector and the computer power supplies. (2) Connect the CONTROL port of the projector with a RS-232C port of the computer by a RS- 232C cable. Use the...
Page 50
6 RS-232C Communication(continued) Requesting projector status (Get command)(1) Send the request code Header + Command data (‘02H’+‘00H’+ type (2 bytes)+‘00H’+‘00H’) from the computer to the projector. (2) The projector returns the response code ‘1DH’+ data (2 bytes) to the computer. Changing the projector settings (Set command)(1) Send the setting code Header + Command data (‘01H’+‘00H’+ type (2 bytes) + setting code (2 bytes)) from the computer to the projector. (2) The projector changes the setting...
