User Controls

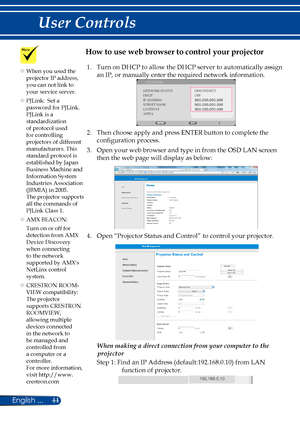

1.  Turn on DHCP to allow the DHCP server to automatically assign
an IP, or manually enter the required network information.NETWORK
NETWORK STATUS DISCONNECT
DHCP
IP ADDRESS
SUBNET MASK
GATEWAY
APPLY OFF
2.
Then choose apply and press ENTER  button to complete the
configuration process.
3.  Open your web browser and type in from the OSD LAN screen
then the web page will display as below:
4. Open “ Projector Status and Control” to control your projector.

When making a...

45... English
User Controls

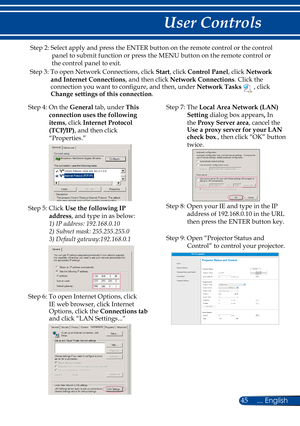

Step 2: Select apply and press the ENTER button on the remote control or the control
panel to submi t function or press the MENU button on the remote control or
the control panel  to exit.
Step 3: To open Network Connections, click  Start
, click  Control Panel
, click Network
and Internet Connections , and then click Network Connections
. Click the
connection you want to configure, and then, under  Network Tasks
 , click
Change settings of this connection .
Step 4: On...

46
English ...
User Controls

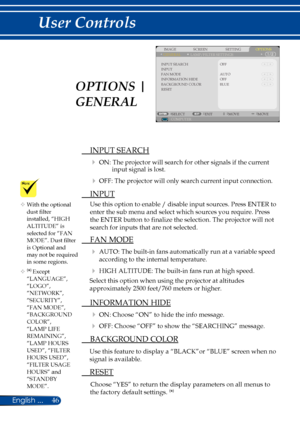

SCREENIMAGE SETTINGOPTIONS
GENERAL LAMP/FILTER SETTINGS
INPUT SEARCH
INPUT
FAN MODE
INFORMATION HIDE
BACKGROUND COLOR
RESET
COMPUTERSELECT
EXITMOVE MOVE
BLUE OFF OFF
AUTO

INPUT SEARCH
 ON: The projector will search for other signals if the current
input signal is lost.
 OFF: The projector will only search current input connection.
 INPUT
Use this option to enable / disable input sources. Press ENTER to
enter the sub menu and select which sources you require. Press
the...

47... English
User Controls
SCREENIMAGE SETTINGOPTIONS
GENERAL LAMP/FILTER SETTINGS

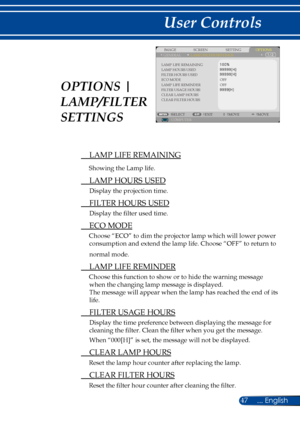

LAMP LIFE REMAINING
LAMP HOURS USED
FILTER HOURS USED
ECO MODE
LAMP LIFE REMINDER
FILTER USAGE HOURS
COMPUTERSELECT
EXITMOVE MOVE
OFF OFF
CLEAR LAMP HOURS
CLEAR FILTER HOURS
  LAMP LIFE REMAINING
Showing the Lamp life.
 LAMP HOURS USED
Display the projection time.
 FILTER HOURS USED
Display the filter used time.
 ECO MODE
Choose “ECO” to dim the projector lamp which will lower power
consumption and extend the lamp life....

48
English ...
User Controls

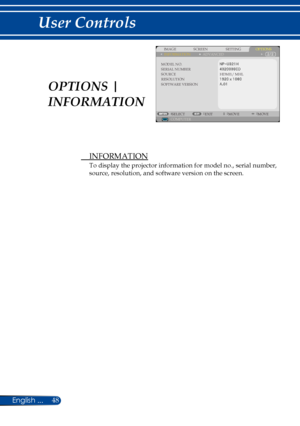

  INFORMATION
To display the projector information for model no., serial number,
source, resolution, and software version on the screen.
COMPUTER
SCREENIMAGE SETTINGOPTIONS
INFORMATION ADVANCED
MODEL NO.
SERIAL NUMBER
SOURCE
RESOLUTION
SOFTWARE VERSION
SELECT EXITMOVE MOVE
HDMI1/ MHL
COMPUTER
OPTIONS |
INFORMATION

49... English
User Controls
SCREENIMAGE SETTINGOPTIONS
INFORMATION ADVANCED

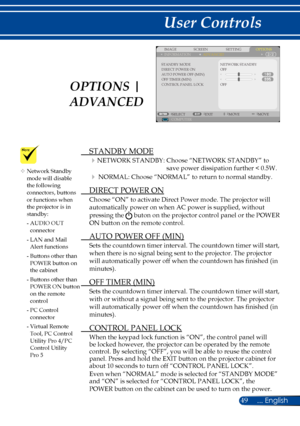

STANDBY MODE
DIRECT POWER ON
AUTO POWER OFF (MIN)
OFF TIMER (MIN)
CONTROL PANEL LOCK NETWORK STANDBY
COMPUTER SELECT
EXITMOVE MOVE
OFF OFF

STANDBY MODE
NETWORK STANDBY:   Choose “NETWORK STANDBY” to
save power dissipation further < 0.5W.
 NORMAL:  Choose “NORMAL” to return to normal standby.
 DIRECT POWER ON
Choose “ON” to activate Direct Power mode. The projector will
automatically power on when AC power is supplied,...

50
English ...
Appendices

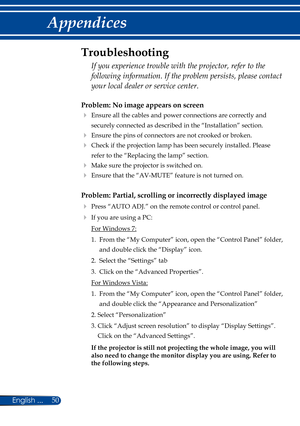

Problem: No image appears on screen
  Ensure all the cables and power connections are correctly and
securely connected as described in the “Installation” section.
 Ensure the pins of connectors are not crooked or broken.
  Check if the projection lamp has been securely installed. Please
refer to the “Replacing the lamp” section.
  Make sure the projector is switched on.
  Ensure that the “AV-MUTE” feature is not turned on.
Problem: Partial, scrolling or incorrectly...

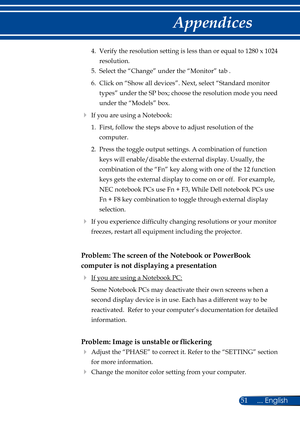

51... English
Appendices
 4.   Verify the resolution setting is less than or equal to 1280 x 1024
resolution.
  5.   Select the “Change” under the “Monitor” tab .
  6.   Click on “Show all devices”. Next, select “Standard monitor
types” under the SP box; choose the resolution mode you need
under the “Models” box.
 If you are using a Notebook:
  1.   First, follow the steps above to adjust resolution of the
computer.
  2.   Press the toggle output settings. A combination of function
keys will...

52
English ...
Appendices

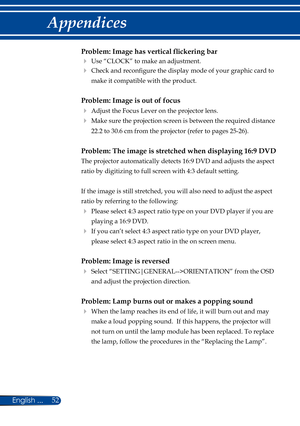

Problem: Image has vertical flickering bar
 Use “CLOCK” to make an adjustment.
    Check and reconfigure the display mode of your graphic card to
make it compatible with the product.
Problem: Image is out of focus
 Adjust the Focus Lever on the projector lens.
   Make sure the projection screen is between the required distance
22.2 to 30.6 cm from the projector (refer to pages 25-26).
Problem: The image is stretched when displaying 16:9 DVD

The projector automatically...

53... English
Appendices

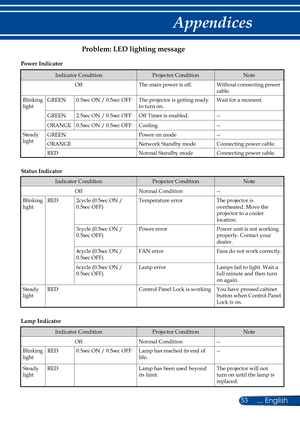

Problem: LED lighting message
Power Indicator
Indicator Condition Projector ConditionNote
Off The main power is off. Without connecting power
cable.
Blinking
light GREEN
0.5sec ON / 0.5sec OFF The projector is getting ready
to turn on. Wait for a moment.
GREEN 2.5sec ON / 0.5sec OFF Off Timer is enabled. --
ORANGE 0.5sec ON / 0.5sec OFF Cooling --
Steady
light GREEN
Power on mode--
ORANGE Network Standby modeConnecting power cable.
RED Normal Standby modeConnecting power...
