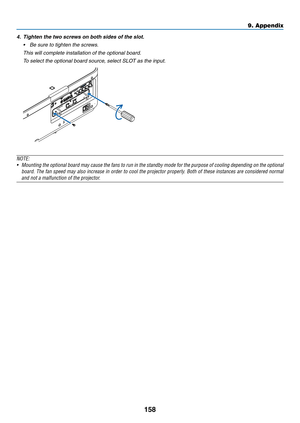

4.	 Tighten	the	two	screws	on	both	sides	of	the	slot.
•	 Be	sure	to	tighten	the	screws.
	 This	will	complete	installation	of	the	optional	board.
	 To	select	the	optional	board	source,	select	SLOT	as	the	input.
NOTE:
•	 Mounting	the	optional	board	may	cause	the	fans	to	run	in	the	standby	mode	for	the	purpose	of	cooling	depending	on	the	optional
board.	The	fan	speed	may	also	increase	in	order	to	cool	the	projector	properly.	Both	of	these	instances	are	considered	normal
and not a malfunction of the...

159

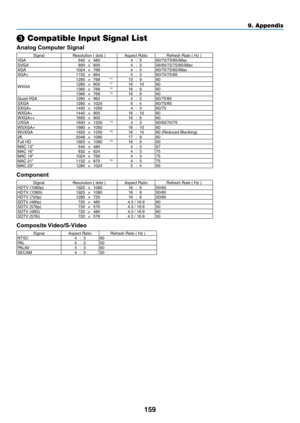

❸ Compatible Input Signal List
Analog Computer Signal
SignalResolution	(	dots	)Aspect	RatioRefresh	Rate	(	Hz	)VGA640×480 4:3 60/72/75/85/iMac
SVGA 800×600 4:3 56/60/72/75/85/iMac
XGA 1024×768 4:3 60/70/75/85/iMac
XGA+ 1152×864 4:3 60/70/75/85
WXGA 1280
×768 *
115:9 60
1280 ×800 *116:10 60
1360 ×768 *216:9 60
1366 ×768 *216:9 60
Quad-VGA 1280×960 4:3 60/75/85
SXGA 1280×1024 5:4 60/75/85
SXGA+ 1400×1050 4:3 60/75
WXGA+ 1440×900 16:10 60
WXGA++ 1600×900 16:9 60
UXGA 1600×1200 *
34:3 60/65/70/75
WSXGA+...

160

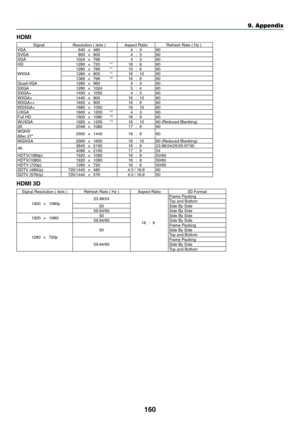

HDMI
SignalResolution	(	dots	)Aspect	RatioRefresh	Rate	(	Hz	)VGA640×480 4:3 60
SVGA 800×600 4:3 60
XGA 1024×768 4:3 60
HD 1280×720 *
116:9 60
WXGA 1280
×768 *115:9 60
1280 ×800 *116:10 60
1366 ×768 *216:9 60
Quad-VGA 1280×960 4:3 60
SXGA 1280×1024 5:4 60
SXGA+ 1400×1050 4:3 60
WXGA+ 1440×900 16:10 60
WXGA++ 1600×900 16:9 60
WSXGA+ 1680×1050 16:10 60
UXGA 1600×1200 *
34:3 60Full	HD1920×1080 *316:9 60
WUXGA 1920×1200 *316:1060	(Reduced	Blanking)2K 2048×1080 17:9 60WQHD	 iMac	27"2560×1440 16:9 60...

161

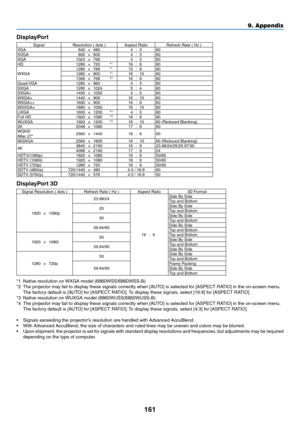

DisplayPort
SignalResolution	(	dots	)Aspect	RatioRefresh	Rate	(	Hz	)VGA640×480 4:3 60
SVGA 800×600 4:3 60
XGA 1024×768 4:3 60
HD 1280×720 *
116:9 60
WXGA 1280
×768 *115:9 60
1280 ×800 *116:10 60
1366 ×768 *216:9 60
Quad-VGA 1280×960 4:3 60
SXGA 1280×1024 5:4 60
SXGA+ 1400×1050 4:3 60
WXGA+ 1440×900 16:10 60
WXGA++ 1600×900 16:9 60
WSXGA+ 1680×1050 16:10 60
UXGA 1600×1200 *
34:3 60Full	HD1920×1080 *316:9 60
WUXGA 1920×1200 *316:1060	(Reduced	Blanking)2K 2048×1080 17:9 60WQHD	 iMac	27"2560×1440...

162

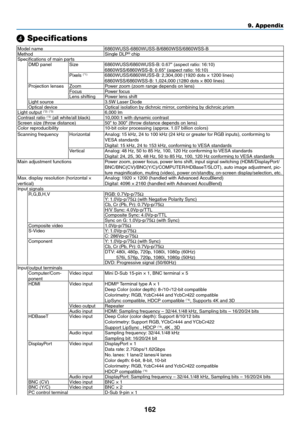

❹ Specifications
Model	name6860WUSS-6860WUSS-B/6860WSS/6860WSS-B
MethodSingle	DLP®	chipSpecifications	of	main	partsDMD	panelSize6860WUSS/6860WUSS-B:	0.67"	(aspect	ratio:	16:10)6860WSS/6860WSS-B:	0.65"	(aspect	ratio:	16:10)Pixels	(*1)6860WUSS/6860WUSS-B:	2,304,000	(1920	dots	×	1200	lines)6860WSS/6860WSS-B:	1,024,000	(1280	dots	×	800	lines)Projection	lensesZoomPower	zoom	(zoom	range	depends	on	lens)FocusPower	focusLens	shiftingPower	lens	shiftLight	source3.5W	Laser	DiodeOptical	device	Optical...

163

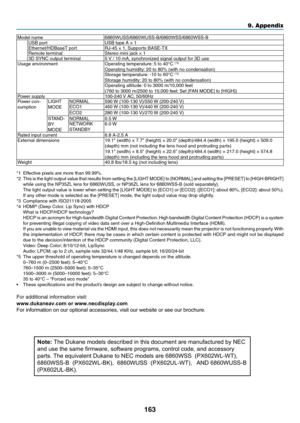

Model	name6860WUSS/6860WUSS-B/6860WSS/6860WSS-BUSB	portUSB	type	A	×	1Ethernet/HDBaseT	portRJ-45	×	1,	Supports	BASE-TXRemote	terminalStereo	mini	jack	×	13D	SYNC	output	terminal5	V	/	10	mA,	synchronized	signal	output	for	3D	useUsage	environmentOperating	temperature:	5	to	40°C	(*5)
Operating	humidity:	20	to	80%	(with	no	condensation)Storage	temperature:	-10	to	60°C	(*5)
Storage	humidity:	20	to	80%	(with	no	condensation)Operating	altitude:	0	to	3000	m/10,000	feet	(760	to	3000	m/2500	to	10,000	feet:	Set...

164

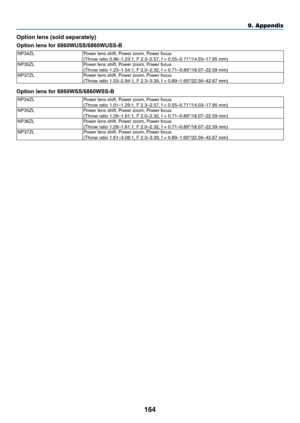

Option	lens	(sold	separately)
Option	lens	for	6860WUSS/6860WUSS-B
NP34ZLPower	lens	shift,	Power	zoom,	Power	focus(Throw	ratio	0.96–1.23:1,	F	2.3–2.57,	f	=	0.55–0.71"/14.03–17.95	mm)NP35ZLPower	lens	shift,	Power	zoom,	Power	focus(Throw	ratio	1.23–1.54:1,	F	2.0–2.32,	f	=	0.71–0.89"/18.07–22.59	mm)NP37ZLPower	lens	shift,	Power	zoom,	Power	focus(Throw	ratio	1.53–2.94:1,	F	2.3–3.39,	f	=	0.89–1.69"/22.56–42.87	mm)
Option	lens	for	6860WSS/6860WSS-B
NP34ZLPower	lens	shift,	Power	zoom,	Power...

165
❺ Cabinet Dimensions
Unit:	mm	(inch)
484.4 (19.1)
150 (5.9)
509 (20)
195 (7.7) 217 (8.5)
101 (4)
89 (3.5) 94.5
(3.7) 150 (5.9) 150 (5.9)
574.8 (22.6)
300 (11.8)Lens	center
Lens	center
6-M4×L8	(Max)	for	Ceiling	Mount*
*	 The	screws	specifications	for	Ceiling	Mount:	 Screw	type:	M4	 Maximum	screw	length:	8	mm	(0.31")	 Minimum	screw	length:	6	mm	(0.24")
 CAUTION:
Do	not	attempt	to	mount	the	projector	on	a	ceiling	yourself.
The	projector	must	be	installed	by	qualified	technicians	in	order	to...

166

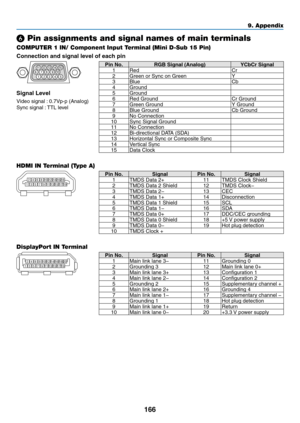

❻ Pin assignments and signal names of main terminals
COMPUTER 1 IN/ Component Input Terminal (Mini D-Sub 15 Pin)
Connection and signal level of each pin
5
14 23 10
11 12 13 14 15
69 78
Signal Level
Video	signal	:	0.7Vp-p	(Analog)
Sync	signal	:	TTL	level
Pin	No.	RGB	Signal	(Analog)YCbCr	Signal1 Red Cr
2Green	or	Sync	on	GreenY
3 Blue Cb
4 Ground
5 Ground
6
Red	GroundCr	Ground7Green	GroundY	Ground8Blue	GroundCb	Ground9No	Connection10Sync	Signal	Ground11No	Connection12Bi-directional	DATA...

167

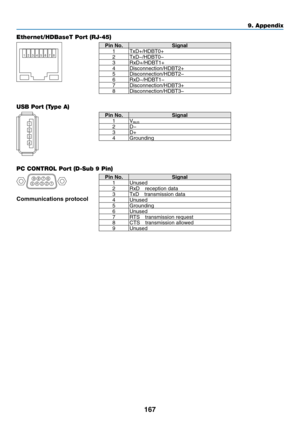

Ethernet/HDBaseT Port (RJ-45)
12345678
Pin	No.	Signal
1 TxD+/HDBT0+
2 TxD−/HDBT0−
3 RxD+/HDBT1+
4 Disconnection/HDBT2+
5 Disconnection/HDBT2−
6 RxD−/HDBT1−
7 Disconnection/HDBT3+
8 Disconnection/HDBT3−
USB Port (Type A)
1
3
2
4
Pin	No.	Signal
1 V
BUS2D−
3 D+
4 Grounding
PC CONTROL Port (D-Sub 9 Pin)
1234
5 6789
Communications protocol
Pin	No.	Signal
1 Unused
2
RxD	reception	data3TxD	transmission	data	4 Unused
5 Grounding
6 Unused
7
RTS	transmission	request8CTS	transmission	allowed9 Unused
9....
