Dukane Projector 6860WSS-B User Manual

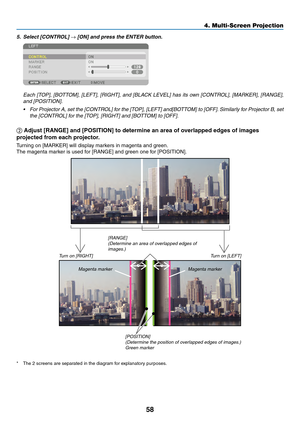

58
5.	 Select	[CONTROL]	→	[ON]	and	press	the	ENTER	button.
	 Each	[TOP],	[BOTTOM],	[LEFT],	[RIGHT],	and	[BLACK	LEVEL]	has	its	own	[CONTROL],	[MARKER],	[RANGE],
and	[POSITION].
•	 For	Projector	A,	set	the	[CONTROL]	for	the	[TOP],	[LEFT]	and[BOTTOM]	to	[OFF].	Similarly	for	Projector	B,	set
the	[CONTROL]	for	the	[TOP],	[RIGHT]	and	[BOTTOM]	to	[OFF].
②	Adjust	[RANGE]	and	[POSITION]	to	determine	an	area	of	overlapped	edges	of	images
projected from each projector.
Turning	on	[MARKER]	will	display	markers	in...

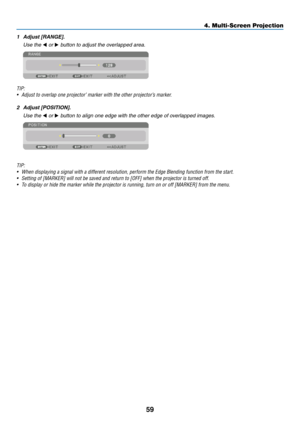

59
1	 Adjust	[RANGE].
	 Use	the	◀	or	▶	button	to	adjust	the	overlapped	area.
TIP:
•	 Adjust	to	overlap	one	projector’	marker	with	the	other	projector’s	marker.
2	 Adjust	[POSITION].
	 Use	the	◀	or	▶	button	to	align	one	edge	with	the	other	edge	of	overlapped	images.
TIP:
•	 When	displaying	a	signal	with	a	different	resolution,	perform	the	Edge	Blending	function	from	the	start.
•	 Setting	of	[MARKER]	will	not	be	saved	and	return	to	[OFF]	when	the	projector	is	turned	off.
•	 To	display	or	hide	the	marker...

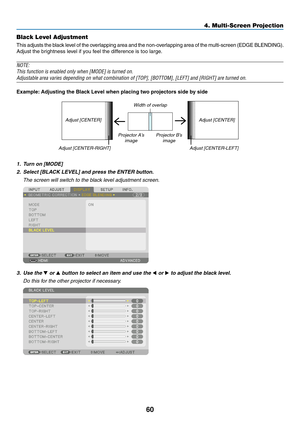

60
Black Level Adjustment
This	adjusts	the	black	level	of	the	overlapping	area	and	the	non-overlapping	area	of	the	multi-screen	(EDGE	BLENDING).
Adjust	the	brightness	level	if	you	feel	the	difference	is	too	large.
NOTE:
This	function	is	enabled	only	when	[MODE]	is	turned	on.
Adjustable	area	varies	depending	on	what	combination	of	[TOP],	[BOTTOM],	[LEFT]	and	[RIGHT]	are	turned	on.
Example:	Adjusting	the	Black	Level	when	placing	two	projectors	side	by	side
Width	of	overlap
Adjust
	[CENTER] Adjust...

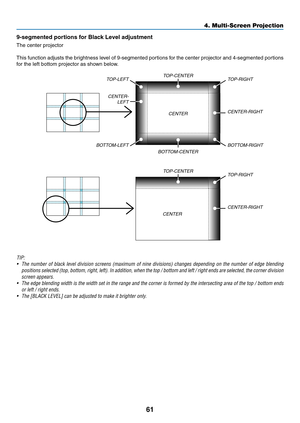

61
9-segmented	portions	for	Black	Level	adjustment
The	center	projector
This	function	adjusts	the	brightness	level	of	9-segmented	portions	for	the	center	projector	and	4-segmented	portions
for	the	left	bottom	projector	as	shown	below.
TOP-LEFT
BOTTOM-LEFT CENTER-
LEFT TOP-RIGHT
CENTER-RIGHT
BOTTOM-RIGHT
TOP-CENTER
CENTER
CENTER
BOTTOM-CENTER
TOP-RIGHT
CENTER-RIGHT
TOP-CENTER
TIP:
•	 The	number	of	black	level	division	screens	(maximum	of	nine	divisions)	changes	depending	on	the	number	of	edge	blending...

62
5. Using On-Screen Menu
❶ Using the Menus
NOTE: The on-screen menu may not be displayed correctly depending on inp\
ut signal and the projector setting.
1. Press the MENU button on the remote control or the projector cabinet to display the menu.
NOTE: The commands such as ENTER,	EXIT,	▲▼, ◀▶ in the bottom show available buttons for your operation.
2. Press the ◀▶ buttons on the remote control or the projector cabinet to display the submenu.
3.	 Press	the	ENTER	button	on	the	remote	control	or	the...

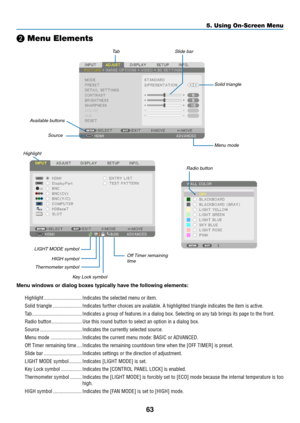

63
❷ Menu Elements
Slide	bar
Solid	triangle
Menu	mode
Ta b
Radio	button
HIGH	symbol
LIGHT	MODE	symbol
Menu	windows	or	dialog	boxes	typically	have	the	following	elements:
Highlight �����������������������������Indicates the selected menu or item�
Solid triangle ����������������������Indicates further choices are available� A highlighted triangle indicates the item is active�
Ta b ��������������������������������������Indicates a group of features in a dialog box� Selecting on any tab brings its page to...

64
*	 The	asterisk	(*)	indicates	that	the	default	setting	varies	depending	on	the	signal.*1	 The	[GAMMA	CORRECTION]	item	is	available	when	an	item	other	than	[DICOM	SIM.]	is	selected	for	[REFERENCE].*2	 The	[SCREEN	SIZE]	item	is	available	when	[DICOM	SIM.]	is	selected	for	[REFERENCE].*3	 When	[PRESENTATION]	or	[HIGH-BRIGHT]	is	selected	in	[REFERENCE],		the	[COLOR	TEMPERATURE]	is	not	available.
•	Basic	menu	items	are	indicated	by	shaded	area.❸ List of Menu Items
Some	menu	items	are	not	available	depending...

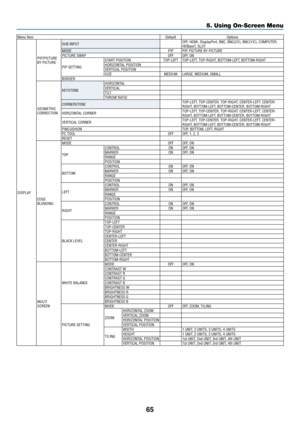

65
Menu ItemDefaultOptions
DISPLAY PIP/PICTURE
BY PICTURE
SUB INPUT
OFF, HDMI, DisplayPort, BNC, BNC(CV), BNC(Y/C), COMPUTER,
HDBaseT, SLOT
MODE PIPPIP, PICTURE BY PICTURE
PICTURE SWAP OFFOFF, ON
PIP SETTING START POSITION
TOP-LEFTTOP-LEFT, TOP-RIGHT, BOTTOM-LEFT, BOTTOM-RIGHT
HORIZONTAL POSITION
VERTICAL POSITION
SIZE MEDIUMLARGE, MEDIUM, SMALL
BORDER
GEOMETRIC
CORRECTION KEYSTONE
HORIZONTAL
VERTICAL
TILT
THROW RATIO
CORNERSTONE TOP-LEFT, TOP-CENTER, TOP-RIGHT, CENTER-LEFT, CENTER-
RIGHT,...

66
Menu ItemDefaultOptions
SETUP MENU
LANGUAGE
ENGLISHENGLISH, DEUTSCH, FRANÇAIS, ITALIANO, ESPAÑOL, SVENSKA,
日本語
DANSK, PORTUGUÊS, ČEŠTINA, MAGYAR, POLSKI,
NEDERLANDS, SUOMI
NORSK, TÜRKÇE, РУССКИЙ,
, Ελληνικά, 中文, 한국어
ROMÂNĂ, HRVATSKA, БЪЛ\fАРСКИ, INDONESIA, हिन्दी , ไทย,
, 繁體中文COLOR SELECT COLORCOLOR, MONOCHROME
INPUT DISPLAY ONOFF, ON
MESSAGE DISPLAY ONOFF, ON
ID DISPLAY ONOFF, ON
3D CAUTION MESSAGE ONOFF, ON
DISPLAY TIME AUTO 45
SEC MANUAL, AUTO  5 SEC, AUTO 15 SEC, AUTO 45 SEC
INSTALLATION...

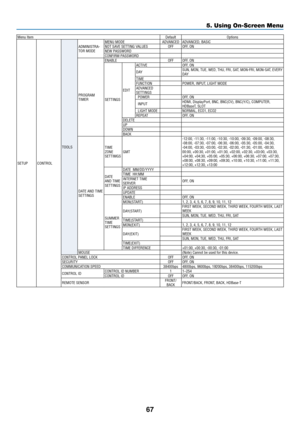

67
Menu ItemDefaultOptions
SETUP CONTROL TOOLSADMINISTRA-
TOR MODE
MENU MODE
ADVANCEDADVANCED, BASIC
NOT SAVE SETTING VALUES OFFOFF, ON
NEW PASSWORD
CONFIRM PASSWORD
PROGRAM
TIMER ENABLE
OFFOFF, ON
SETTINGS EDITACTIVE
OFF, ON
D AY SUN, MON, TUE, WED, THU, FRI, SAT, MON-FRI, MON-SAT, EVERY
D AY
TIME
FUNCTION POWER, INPUT, LIGHT MODE
ADVANCED
SETTINGS POWER OFF, ON
INPUT HDMI, DisplayPort, BNC, BNC(CV), BNC(Y/C), COMPUTER,
HDBaseT, SLOT
LIGHT MODE NORMAL, ECO1, ECO2
REPEAT OFF, ON
DELETE
UP
DOWN
BACK...
