Dukane Projector 6860WSS User Manual

128

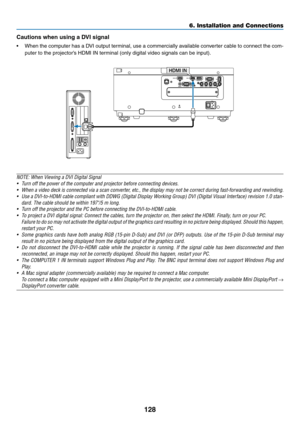

Cautions	when	using	a	DVI	signal
•	 When	the	computer	has	a	DVI	output	terminal,	use	a	commercially	available	converter	cable	to	connect	the	com-
puter	to	the	projector’s	HDMI	IN	terminal	(only	digital	video	signals	can	be	input).
HDMI IN
NOTE:	When	Viewing	a	DVI	Digital	Signal
•	 Turn	off	the	power	of	the	computer	and	projector	before	connecting	devices.
•	 When	a	video	deck	is	connected	via	a	scan	converter,	etc.,	the	display	may	not	be	correct	during	fast-forwarding	and	rewinding.
•	 Use	a...

129
HDMI IN
HDMI OUT

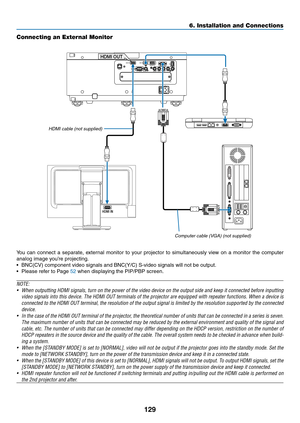

Connecting an External Monitor
You	can	connect	a	separate,	external	monitor	to	your	projector	to	simultaneously	view	on	a	monitor	the	computer
analog	image	you’re	projecting.
•	 BNC(CV)	component	video	signals	and	BNC(Y/C)	S-video	signals	will	not	be	output.
•	 Please	refer	to	Page	52	when	displaying	the	PIP/PBP	screen.
NOTE:
•	 When	outputting	HDMI	signals,	turn	on	the	power	of	the	video	device	on	the	output	side	and	keep	it	connected	before	inputting
video	signals	into	this...

130

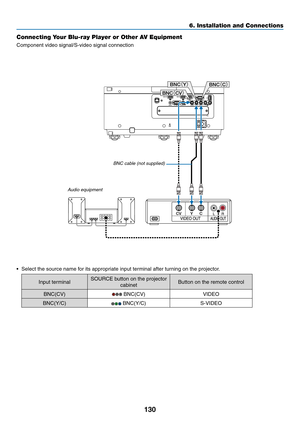

Connecting Your Blu-ray Player or Other AV Equipment
Component	video	signal/S-video	signal	connection
•	 Select	the	source	name	for	its	appropriate	input	terminal	after	turning	on	the	projector.
Input	terminalSOURCE	button	on	the	projector
cabinetButton	on	the	remote	control
BNC(CV)	BNC(CV)VIDEO
BNC(Y/C)
	BNC(Y/C)S-VIDEO
CV YC
BNC¢CV£
BNC
¢Y£
BNC¢C£
BNC	cable	(not	supplied)
Audio	equipment
6. Installation and Connections

131

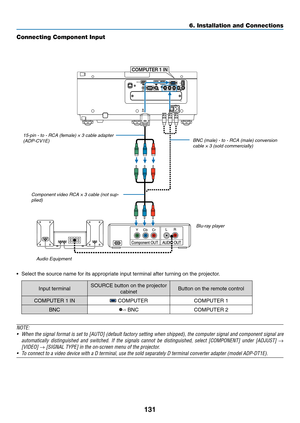

Connecting Component Input
•	 Select	the	source	name	for	its	appropriate	input	terminal	after	turning	on	the	projector.
Input	terminalSOURCE	button	on	the	projector
cabinetButton	on	the	remote	control
COMPUTER	1	IN	COMPUTERCOMPUTER	1
BNC	BNCCOMPUTER	2
NOTE:
•	 When	the	signal	format	is	set	to	[AUTO]	(default	factory	setting	when	shipped),	the	computer	signal	and	component	signal	are
automatically	distinguished	and	switched.	If	the	signals	cannot	be	distinguished,	select	[COMPONENT]	under	[ADJUST]	→...

132

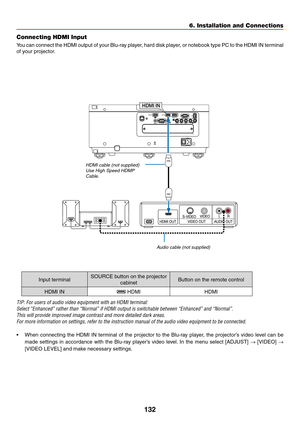

Connecting HDMI Input
You	can	connect	the	HDMI	output	of	your	Blu-ray	player,	hard	disk	player,	or	notebook	type	PC	to	the	HDMI	IN	terminal
of	your	projector.
Input	terminalSOURCE	button	on	the	projector
cabinetButton	on	the	remote	control
HDMI	IN	HDMIHDMI
TIP:	For	users	of	audio	video	equipment	with	an	HDMI	terminal:
Select	“Enhanced”	rather	than	“Normal”	if	HDMI	output	is	switchable	between	“Enhanced”	and	“Normal”.
This will provide improved image contrast and more detailed dark areas.
For	more...

133

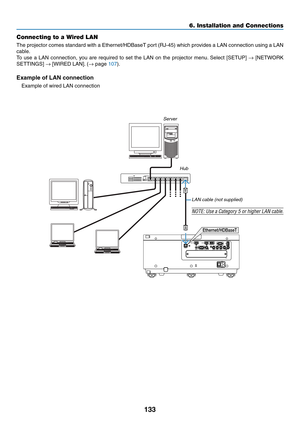

Connecting to a Wired LAN
The	projector	comes	standard	with	a	Ethernet/HDBaseT	port	(RJ-45)	which	provides	a	LAN	connection	using	a	LAN
cable.
To	use	a	LAN	connection,	you	are	required	to	set	the	LAN	on	the	projector	menu.	Select	[SETUP]	→	[NETWORK
SETTINGS]	→	[WIRED	LAN].	(→	page	107).
Example of LAN connection
Example	of	wired	LAN	connection
Ethernet/HDBaseT
Server
Hub
LAN	cable	(not	supplied)
NOTE:	Use	a	Category	5	or	higher	LAN	cable.
6. Installation and Connections

134

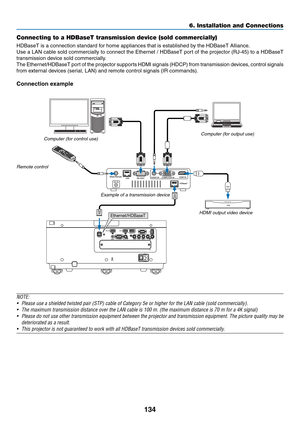

Connecting to a HDBaseT transmission device (sold commercially)
HDBaseT	is	a	connection	standard	for	home	appliances	that	is	established	by	the	HDBaseT	Alliance.
Use	a	LAN	cable	sold	commercially	to	connect	the	Ethernet	/	HDBaseT	port	of	the	projector	(RJ-45)	to	a	HDBaseT
transmission	device	sold	commercially.
The	Ethernet/HDBaseT	port	of	the	projector	supports	HDMI	signals	(HDCP)	from	transmission	devices,	control	signals
from	external	devices	(serial,	LAN)	and	remote	control	signals	(IR...

135

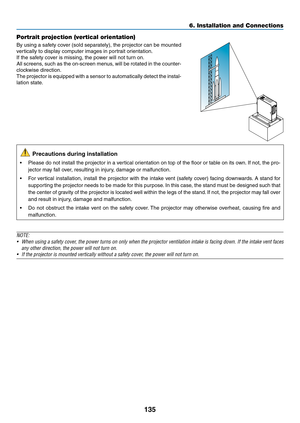

Portrait projection (vertical orientation)
By	using	a	safety	cover	(sold	separately),	the	projector	can	be	mounted
vertically	to	display	computer	images	in	portrait	orientation.
If	the	safety	cover	is	missing,	the	power	will	not	turn	on.
All	screens,	such	as	the	on-screen	menus,	will	be	rotated	in	the	counter-
clockwise	direction.
The	projector	is	equipped	with	a	sensor	to	automatically	detect	the	instal-
lation	state.
	Precautions	during	installation
•	 Please	do	not	install	the	projector	in	a...

136

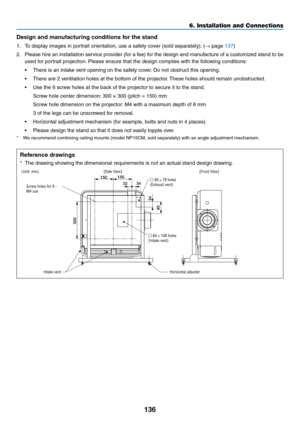

Design and manufacturing conditions for the stand
1.	 To	display	images	in	portrait	orientation,	use	a	safety	cover	(sold	separately).	(→	page	137)
2.	 Please	hire	an	installation	service	provider	(for	a	fee)	for	the	design	and	manufacture	of	a	customized	stand	to	be
used	for	portrait	projection.	Please	ensure	that	the	design	complies	with	the	following	conditions:
•	 There	is	an	intake	vent	opening	on	the	safety	cover.	Do	not	obstruct	this	opening.
•	 There	are	2	ventilation	holes	at	the	bottom	of...

137

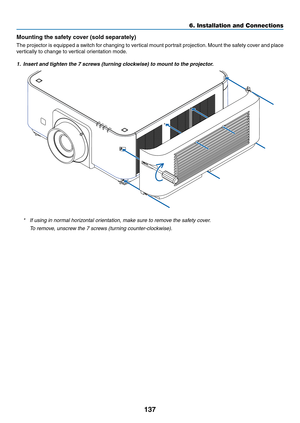

Mounting	the	safety	cover	(sold	separately)
The	projector	is	equipped	a	switch	for	changing	to	vertical	mount	portrait	projection.	Mount	the	safety	cover	and	place
vertically	to	change	to	vertical	orientation	mode.
1. Insert and tighten the 7 screws (turning clockwise) to mount to the projector.
*	 If	using	in	normal	horizontal	orientation,	make	sure	to	remove	the	safety	cover.
	 To	remove,	unscrew	the	7	screws	(turning	counter-clockwise).
