Dukane Projector 6860WUSS-B User Manual

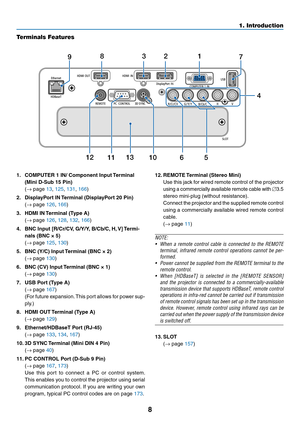

8
Terminals Features
9714238
13
1210
11 56
1.	 COMPUTER	1	IN/	Component	Input	Terminal
(Mini	D-Sub	15	Pin)
	(
→	page	13,	125,	131,	166)
2.	 DisplayPort	IN	Terminal	(DisplayPort	20	Pin)
	(→	page	126,	166)
3.	 HDMI	IN	Terminal	(Type	A)
	(→	page	126,	128,	132,	166)
4.	 BNC	Input	[R/Cr/CV,	G/Y/Y,	B/Cb/C,	H,	V]	Termi-
nals	(BNC	×	5)
	(→	page	125,	130)
5.	 BNC	(Y/C)	Input	Terminal	(BNC	×	2)
	(→	page	130)
6.	 BNC	(CV)	Input	Terminal	(BNC	×	1)
	(→	page	130)
7.	 USB	Port	(Type	A)
	(→	page	167)
	 (For...

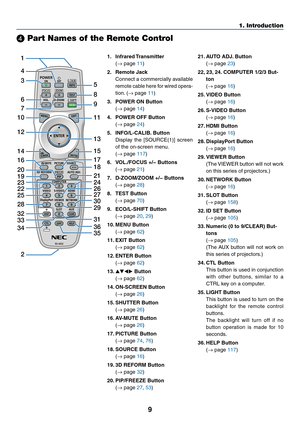

9
❹ Part Names of the Remote Control
1. Infrared Transmitter
	(→	page	11)
2.	 Remote	Jack
	 Connect	a	commercially	available
remote	cable	here	for	wired	opera-
tion.	(→	page	11)
3.	 POWER	ON	Button
	(→	page	14)
4.	 POWER	OFF	Button
	(→	page	24)
5.	 INFO/L-CALIB.	Button
	 Display	the	[SOURCE(1)]	screen
of	the	on-screen	menu.
	(→	page	117)
6.	 VOL./FOCUS	+/−	Buttons
	(→	page	21)
7.	 D-ZOOM/ZOOM	+/−	Buttons
	(→	page	28)
8.	 TEST	Button
	(→	page	70)
9.	 ECO/L-SHIFT	Button
	(→	page	20,	29)
10.	MENU	Button...

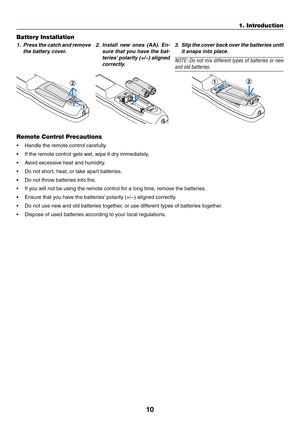

10
Battery Installation
1. Press the catch and remove
the battery cover.
2. Install new ones (AA). En-
sure that you have the bat -
teries’ polarity (+/−) aligned
correctly.3. Slip the cover back over the batteries until
it snaps into place.
NOTE:	Do	not	mix	different	types	of	batteries	or	new
and old batteries.
1
212
Remote Control Precautions
•	 Handle	the	remote	control	carefully.
•	 If	the	remote	control	gets	wet,	wipe	it	dry	immediately.
•	 Avoid	excessive	heat	and	humidity.
•	 Do	not	short,...

11

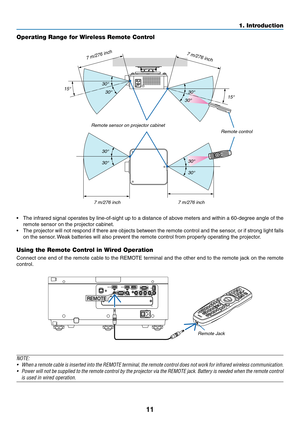

Operating Range for Wireless Remote Control
7	m/276	inch
7	m/276	inchRemote
	control
Remote
	sensor	on	projector	cabinet
7	m/276	inch
7	m/276	inch 30°
30°
30° 30°
15°
30°
30° 30°
15°
30°
•	 The	infrared	signal	operates	by	line-of-sight	up	to	a	distance	of	above	meters	and	within	a	60-degree	angle	of	the
remote	sensor	on	the	projector	cabinet.
•	 The	projector	will	not	respond	if	there	are	objects	between	the	remote	control	and	the	sensor,	or	if	strong	light	falls
on	the	sensor.	Weak	batteries	will...

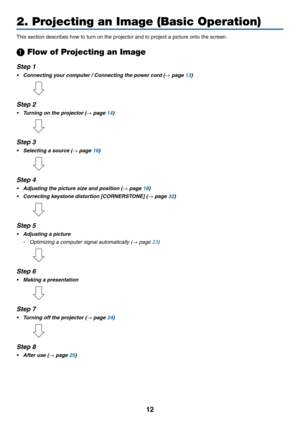

12
This	section	describes	how	to	turn	on	the	projector	and	to	project	a	picture	onto	the	screen.
❶ Flow of Projecting an Image
Step 1
•	 Connecting	your	computer	/	Connecting	the	power	cord	(→ page 13)

Step 2
•	 Turning	on	the	projector	(→ page 14)

Step 3
•	 Selecting	a	source	(→ page 16)

Step 4
•	 Adjusting	the	picture	size	and	position	(→ page 18)
•	 Correcting	keystone	distortion	[CORNERSTONE]	(→ page 32)

Step 5
•	 Adjusting	a	picture
-	 Optimizing	a	computer	signal	automatically	(→	page...

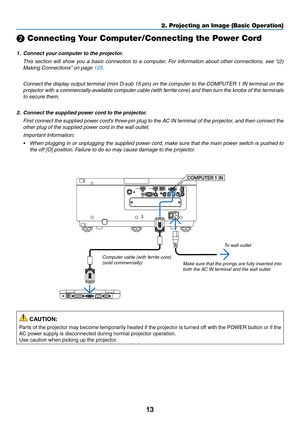

13
❷ Connecting Your Computer/Connecting the Power Cord
1.	 Connect	your	computer	to	the	projector.
	 This	section	will	show	you	a	basic	connection	to	a	computer.	For	information	about	other	connections,	see	“(2)
Making	Connections”	on	page	125.
	 Connect	the	display	output	terminal	(mini	D-sub	15	pin)	on	the	computer	to	the	COMPUTER	1	IN	terminal	on	the
projector	with	a	commercially-available	computer	cable	(with	ferrite	core)	and	then	turn	the	knobs	of	the	terminals
to	secure	them.
2.	 Connect	the...

14

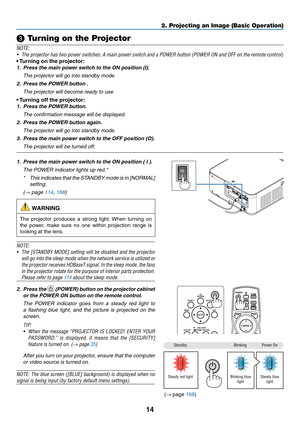

❸ Turning on the Projector
NOTE:
•	 The	projector	has	two	power	switches:	A	main	power	switch	and	a	POWER	button	(POWER	ON	and	OFF	on	the	remote	control)
•	Turning	on	the	projector:
1. Press the main power switch to the ON position (I).
	 The	projector	will	go	into	standby	mode.
2. Press the POWER button .
	 The	projector	will	become	ready	to	use.
•	Turning	off	the	projector:
1. Press the POWER button.
	 The	confirmation	message	will	be	displayed.
2. Press the POWER button again.
	 The	projector	will...

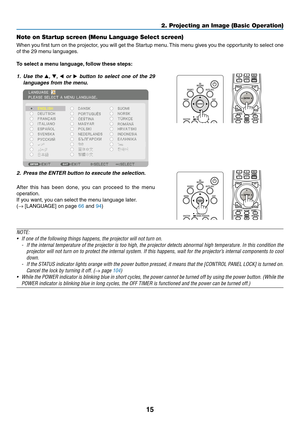

15
Note on Startup screen (Menu Language Select screen)
When	you	first	turn	on	the	projector,	you	will	get	the	Startup	menu.	This	menu	gives	you	the	opportunity	to	select	one
of	the	29	menu	languages.
To	select	a	menu	language,	follow	these	steps:
1. Use the ▲, ▼, ◀ or ▶	button	to	select	one	of	the	29
languages	from	the	menu.

2. Press the ENTER button to execute the selection.
After	this	has	been	done,	you	can	proceed	to	the	menu
operation.
If	you	want,	you	can	select	the	menu	language	later.
(→...

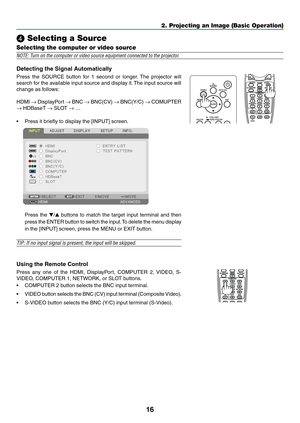

16
❹ Selecting a Source
Selecting the computer or video source
NOTE: Turn on the computer or video source equipment connected to the projector.
Detecting	the	Signal	Automatically
Press	the	SOURCE	button	for	1	second	or	longer.	The	projector	will
search	for	the	available	input	source	and	display	it.	The	input	source	will
change	as	follows:
HDMI	→	DisplayPort	→	BNC	→	BNC(CV)	→	BNC(Y/C)	→	COMUPTER
→	HDBaseT	→	SLOT	→ …
•	 Press	it	briefly	to	display	the	[INPUT]	screen.
	 Press	the	▼/▲	buttons	to	match...

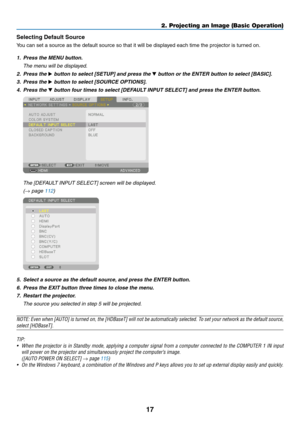

17
Selecting Default Source
You	can	set	a	source	as	the	default	source	so	that	it	will	be	displayed	each	time	the	projector	is	turned	on.
1. Press the MENU button.
	 The	menu	will	be	displayed.
2. Press the ▶	button	to	select	[SETUP]	and	press	the	▼	button	or	the	ENTER	button	to	select	[BASIC].
3. Press the ▶	button	to	select	[SOURCE	OPTIONS].
4. Press the ▼	button	four	times	to	select	[DEFAULT	INPUT	SELECT]	and	press	the	ENTER	button.
	 The	[DEFAULT	INPUT	SELECT]	screen	will	be	displayed.
	(→	page...
