Dukane Projector 6860WUSS User Manual

Projector
6860WSS/6860WSS-B/
6860WUSS/6860WUSS-B
User’s Manual
430-6860 Series-User-Manual.00

Ver. 2 11/14
•	 Apple,	Mac,	Mac	OS,	and	MacBook	are	trademarks	of	Apple	Inc.	registered	in	the	U.S.	and	other	countries.
•	 Microsoft,	Windows,	Windows	Vista,	Internet	Explorer,	.NET	Framework	and	PowerPoint	are	either	a	registered
trademark	or	trademark	of	Microsoft	Corporation	in	the	United	States	and/or	other	countries.
•	 MicroSaver	is	a	registered	trademark	of	Kensington	Computer	Products	Group,	a	division	of	ACCO	Brands.
•	 Adobe,	Adobe	PDF,	Adobe	Reader,	and	Acrobat	are	either	registered...

i
Important Information
Safety Cautions
Precautions
Please	read	this	manual	carefully	before	using	your	DUKANE	projector	and	keep	the	manual	handy	for	future	reference.
CAUTION
To	turn	off	main	power,	be	sure	to	remove	the	plug	from	power	outlet.
The	power	outlet	socket	should	be	installed	as	near	to	the	equipment	as	possible,	and	should	be	easily
accessible.
CAUTION
TO	PREVENT	SHOCK,	DO	NOT	OPEN	THE	CABINET.
THERE	ARE	HIGH-VOLTAGE	COMPONENTS	INSIDE.
REFER	SERVICING	TO	QUALIFIED	SERVICE	PERSONNEL.
This...

ii
WARNING TO CALIFORNIA RESIDENTS:
Handling	the	cables	supplied	with	this	product	will	expose	you	to	lead,	a	chemical	known	to	the	State	of	California
to	cause	birth	defects	or	other	reproductive	harm.	WASH	HANDS	AFTER	HANDLING.
RF Interference (for USA only)
WARNING
The	Federal	Communications	Commission	does	not	allow	any	modifications	or	changes	to	the	unit	EXCEPT	those
specified	by	NEC	Display	Solutions	of	America,	Inc.	in	this	manual.	Failure	to	comply	with	this	government	regu-
lation	could	void...

iii

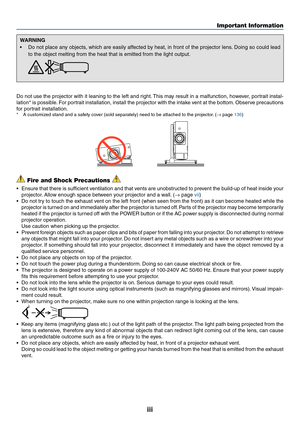

WARNING
•	 Do	not	place	any	objects,	which	are	easily	affected	by	heat,	in	front	of	the	projector	lens.	Doing	so	could	lead
to	the	object	melting	from	the	heat	that	is	emitted	from	the	light	output.
Do	not	use	the	projector	with	it	leaning	to	the	left	and	right.	This	may	result	in	a	malfunction,	however,	portrait	instal-
lation*	is	possible.	For	portrait	installation,	install	the	projector	with	the	intake	vent	at	the	bottom.	Observe	precautions
for	portrait	installation.*	 A	customized	stand	and	a...

iv

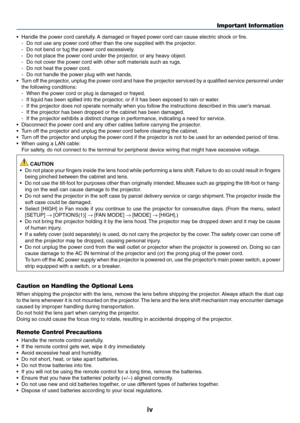

•	 Handle	the	power	cord	carefully.	A	damaged	or	frayed	power	cord	can	cause	electric	shock	or	fire.
-	 Do	not	use	any	power	cord	other	than	the	one	supplied	with	the	projector.
-	 Do	not	bend	or	tug	the	power	cord	excessively.
-	 Do	not	place	the	power	cord	under	the	projector,	or	any	heavy	object.
-	 Do	not	cover	the	power	cord	with	other	soft	materials	such	as	rugs.
-	 Do	not	heat	the	power	cord.
-	 Do	not	handle	the	power	plug	with	wet	hands.
•	 Turn	off	the	projector,	unplug	the	power	cord	and...

v

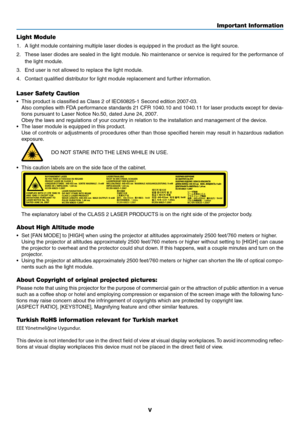

Light Module
1.	 A	light	module	containing	multiple	laser	diodes	is	equipped	in	the	product	as	the	light	source.
2.	 These	laser	diodes	are	sealed	in	the	light	module.	No	maintenance	or	service	is	required	for	the	performance	of
the	light	module.
3.	 End	user	is	not	allowed	to	replace	the	light	module.
4.	 Contact	qualified	distributor	for	light	module	replacement	and	further	information.
Laser Safety Caution
•	 This	product	is	classified	as	Class	2	of	IEC60825-1	Second	edition	2007-03.
	 Also...

vi

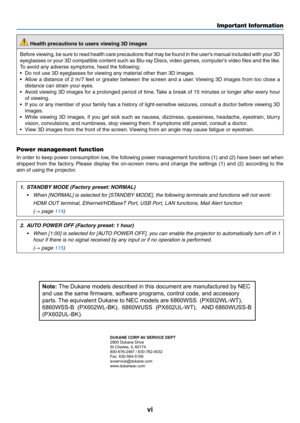

 Health precautions to users viewing 3D images
Before	viewing,	be	sure	to	read	health	care	precautions	that	may	be	found	in	the	user’s	manual	included	with	your	3D
eyeglasses	or	your	3D	compatible	content	such	as	Blu-ray	Discs,	video	games,	computer’s	video	files	and	the	like.
To	avoid	any	adverse	symptoms,	heed	the	following:
•	 Do	not	use	3D	eyeglasses	for	viewing	any	material	other	than	3D	images.
•	 Allow	a	distance	of	2	m/7	feet	or	greater	between	the	screen	and	a	user.	Viewing	3D	images	from...

vii

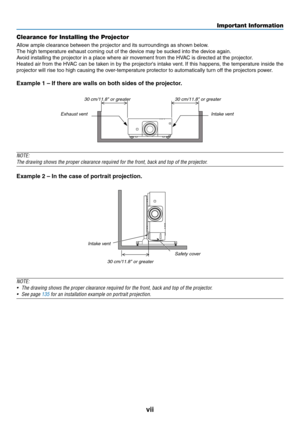

Clearance for Installing the Projector
Allow	ample	clearance	between	the	projector	and	its	surroundings	as	shown	below.
The	high	temperature	exhaust	coming	out	of	the	device	may	be	sucked	into	the	device	again.
Avoid	installing	the	projector	in	a	place	where	air	movement	from	the	HVAC	is	directed	at	the	projector.
Heated	air	from	the	HVAC	can	be	taken	in	by	the	projector's	intake	vent.	If	this	happens,	the	temperature	inside	the
projector	will	rise	too	high	causing	the	over-temperature	protector...

viii

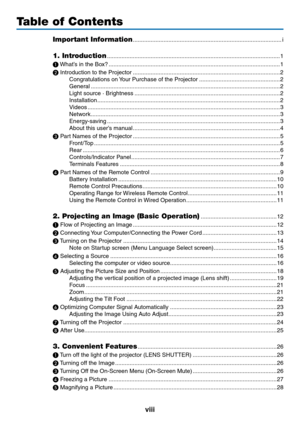

Table of Contents
