Dukane Projector 8975WUA User Manual

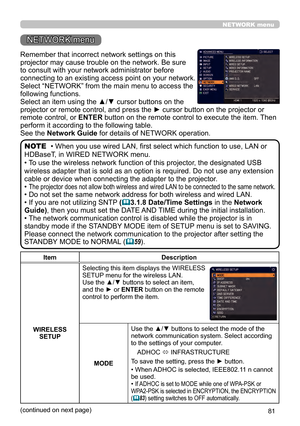

81
NETWORK menu
Remember that incorrect network settings on this
projector may cause trouble on the network. Be sure
to consult with your network administrator before
connecting to an existing access point on your network.
Select “NETWORK” from the main menu to access the
following functions.
Select an item using the ▲/▼ cursor buttons on the
projector or remote control, and press the ► cursor button on the projector or
remote control, or ENTER button on the remote control to execute the item....

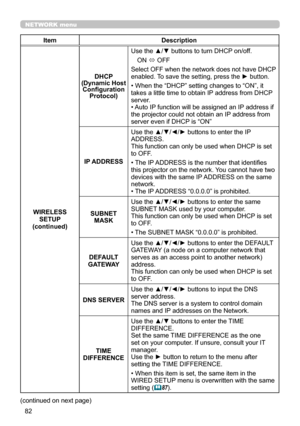

82
NETWORK menu
ItemDescription
WIRELESS  SETUP
(continued) DHCP
(Dynamic Host  Configuration  Protocol) Use the ▲/▼ buttons to turn DHCP on/off.
ON
ó OFF
Select OFF when the network does not have DHCP
enabled. To save the setting, press the ► button.
• When the “DHCP” setting changes to “ON”, it
takes a little time to obtain IP address from DHCP
server.
• Auto IP function will be assigned an IP address if
the projector could not obtain an IP address from
server even if DHCP is “ON”
IP ADDRESS...

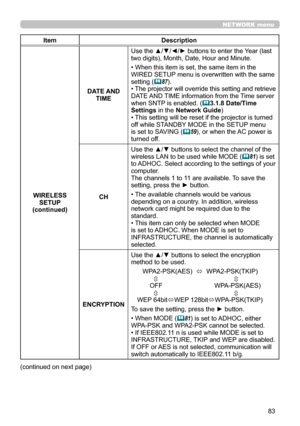

83
NETWORK menu
ItemDescription
WIRELESS  SETUP
(continued) DATE AND
TIME Use the ▲/▼/◄/► buttons to enter the Year (last
two digits), Month, Date, Hour and Minute.
• When this item is set, the same item in the
WIRED SETUP menu is overwritten with the same
setting (

87).
• The projector will override this setting and retrieve
DATE AND TIME information from the Time server
when SNTP is enabled.  (
3.1.8 Date/Time
Settings in the Network Guide )
• This setting will be reset if the projector is...

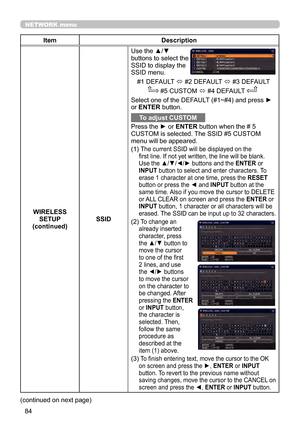

84
NETWORK menu
ItemDescription
WIRELESS  SETUP
(continued) SSIDUse the ▲/▼
buttons to select the
SSID to display the
SSID menu.
#1 DEFAULT
ó #2 DEFAULT ó #3 DEFAULT

 #5 CUSTOM ó #4 DEFAULT
Select one of the DEFAULT (#1~#4) and press ►
or ENTER button.
To adjust CUSTOM
Press the ► or ENTER button when the # 5
CUSTOM is selected. The SSID #5 CUSTOM
menu will be appeared.
(1)
  The current SSID will be displayed on the
first line. If not yet written, the line will be blank.
Use the ▲/▼/◄/►...

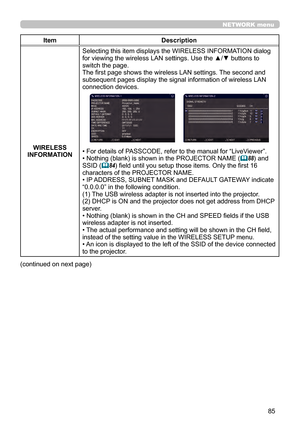

85
NETWORK menu
ItemDescription
WIRELESS
INFORMATION Selecting this item displays the WIRELESS INFORMATION dialog
for viewing the wireless LAN settings. Use the ▲/▼ buttons to
switch the page.
The first page shows the wireless LAN settings. The second and
subsequent pages display the signal information of wireless LAN
connection devices.
• For details of PASSCODE, refer to the manual for “LiveViewer”.
• Nothing (blank) is shown in the PROJECTOR NAME (

88) and
SSID ( 84) field until you setup...

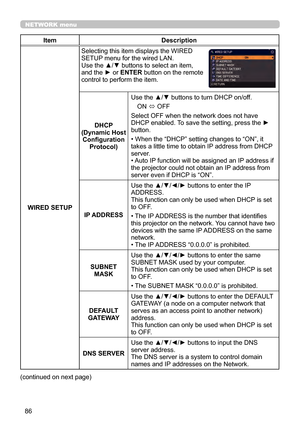

86
NETWORK menu
ItemDescription
WIRED SETUP Selecting this item displays the WIRED
SETUP menu for the wired LAN.
Use the ▲/▼ buttons to select an item,
and the ► or ENTER button on the remote
control to perform the item.
DHCP
(Dynamic Host  Configuration  Protocol) Use the ▲/▼ buttons to turn DHCP on/off.
ON
ó OFF
Select OFF when the network does not have
DHCP enabled. To save the setting, press the ►
button.
• When the “DHCP” setting changes to “ON”, it
takes a little time to obtain IP address...

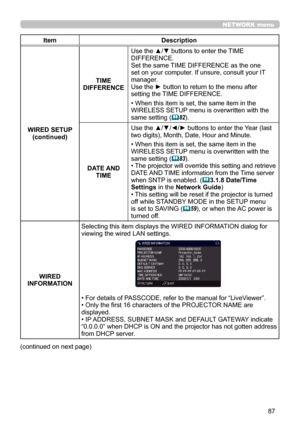

87
NETWORK menu
ItemDescription
WIRED SETUP (continued) TIME
DIFFERENCE Use the ▲/▼ buttons to enter the TIME
DIFFERENCE.
Set the same TIME DIFFERENCE as the one
set on your computer. If unsure, consult your IT
manager.
Use the ► button to return to the menu after
setting the TIME DIFFERENCE.
• When this item is set, the same item in the
WIRELESS SETUP menu is overwritten with the
same setting (

82).
DATE AND  TIME Use the ▲/▼/◄/► buttons to enter the Year (last
two digits), Month, Date,...

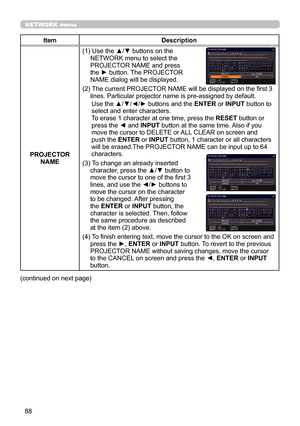

88
NETWORK menu
ItemDescription
PROJECTOR  NAME (1)
 Use the ▲/▼ buttons on the
NETWORK menu to select the
PROJECTOR NAME and press
the ► button. The PROJECTOR
NAME dialog will be displayed.
(2)
 The current PROJECTOR NAME will be displayed on the first 3
lines. Particular projector name is pre-assigned by default.
Use the ▲/▼/◄/► buttons and the  ENTER or INPUT button to
select and enter characters.
To erase 1 character at one time, press the  RESET

 button or
press the ◄ and INPUT button at...

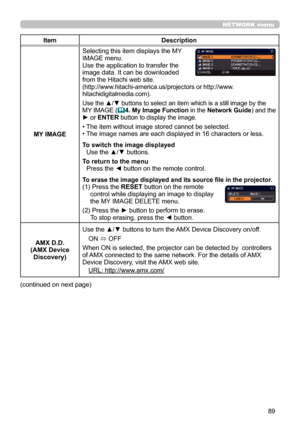

89
NETWORK menu
ItemDescription
MY IMAGE Selecting this item displays the
MY
IMAGE menu.
Use the application to transfer the
image data. It can be downloaded
from the Hitachi web site.
(http://www.hitachi-america.us/projectors or http://www.
hitachidigitalmedia.com).
Use the ▲/▼ buttons to select an item which is a still image by the
MY IMAGE (
 4. My Image Function in the Network Guide) and the
► or ENTER button to display the image.
• The item without image stored cannot be selected.
• The...

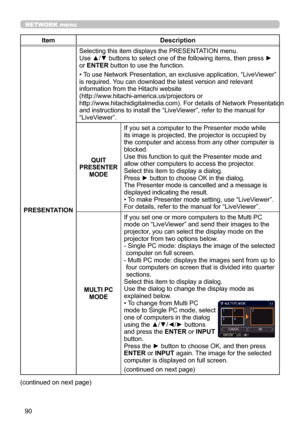

90
NETWORK menu
ItemDescription
PRESENTATION Selecting this item displays the PRESENTATION menu.
Use ▲/▼ buttons to select one of the following items, then press ►
or ENTER button to use the function.
• To use Network Presentation, an exclusive application,
“LiveViewer”
is required. You can download the latest version and relevant
information from the Hitachi website
(http://www.hitachi-america.us/projectors or
http://www.hitachidigitalmedia.com). For details of Network Presentation
and...
