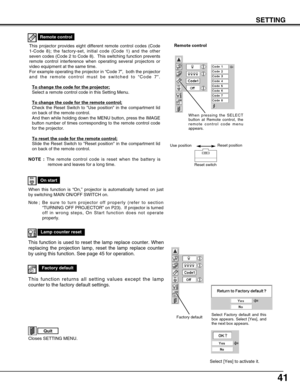

Page 41
![Page 41
41
SETTING
On start
When this function is “On,” projector is automatically turned on j\
ust
by switching MAIN ON/OFF SWITCH on.
Note ;Be sure to turn projector off properly (refer to section
“TURNING OFF PROJECTOR” on P23). If projector is turned
off in wrong steps, On Start function does not operate
properly.
This projector provides eight different remote control codes (Code
1-Code 8); the factory-set, initial code (Code 1) and the other
seven codes (Code 2 to Code 8). This switching function...](http://img.usermanuals.tech/thumb/1702/89488/w300_eiki-lc-xt9-manual_d-40.png "Page 41
41
SETTING
On start
When this function is “On,” projector is automatically turned on j\
ust
by switching MAIN ON/OFF SWITCH on.
Note ;Be sure to turn projector off properly (refer to section
“TURNING OFF PROJECTOR” on P23). If projector is turned
off in wrong steps, On Start function does not operate
properly.
This projector provides eight different remote control codes (Code
1-Code 8); the factory-set, initial code (Code 1) and the other
seven codes (Code 2 to Code 8). This switching function...")
41 SETTING On start When this function is “On,” projector is automatically turned on j\ ust by switching MAIN ON/OFF SWITCH on. Note ;Be sure to turn projector off properly (refer to section “TURNING OFF PROJECTOR” on P23). If projector is turned off in wrong steps, On Start function does not operate properly. This projector provides eight different remote control codes (Code 1-Code 8); the factory-set, initial code (Code 1) and the other seven codes (Code 2 to Code 8). This switching function...
Page 42
![Page 42
42
APPENDIX
READYLAMP
LAMP
REPLACE W
ARNING
TEMP.
AIR FILTER CARE AND CLEANING
AIR FILTER
AIR FILTER
TOP
AIR FILTER
BASE AIR FILTER
MAINTENANCE
WARNING TEMP. INDICATOR
Ventilation Slots of a projector may be blocked. In such an event, repo\
sition
a projector so that Ventilation Slots are not obstructed.
Air Filter may be clogged with dust particles. Clean Air Filter by foll\
owing
section AIR FILTER CARE AND CLEANING on this page.
1
2

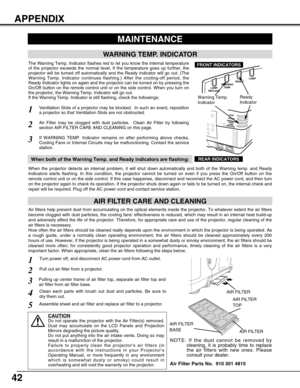

If WARNING TEMP. Indicator remains on after performing above...](http://img.usermanuals.tech/thumb/1702/89488/w300_eiki-lc-xt9-manual_d-41.png "Page 42
42
APPENDIX
READYLAMP
LAMP
REPLACE W
ARNING
TEMP.
AIR FILTER CARE AND CLEANING
AIR FILTER
AIR FILTER
TOP
AIR FILTER
BASE AIR FILTER
MAINTENANCE
WARNING TEMP. INDICATOR
Ventilation Slots of a projector may be blocked. In such an event, repo\
sition
a projector so that Ventilation Slots are not obstructed.
Air Filter may be clogged with dust particles. Clean Air Filter by foll\
owing
section AIR FILTER CARE AND CLEANING on this page.
1
2
If WARNING TEMP. Indicator remains on after performing above...")
42 APPENDIX READYLAMP LAMP REPLACE W ARNING TEMP. AIR FILTER CARE AND CLEANING AIR FILTER AIR FILTER TOP AIR FILTER BASE AIR FILTER MAINTENANCE WARNING TEMP. INDICATOR Ventilation Slots of a projector may be blocked. In such an event, repo\ sition a projector so that Ventilation Slots are not obstructed. Air Filter may be clogged with dust particles. Clean Air Filter by foll\ owing section AIR FILTER CARE AND CLEANING on this page. 1 2 If WARNING TEMP. Indicator remains on after performing above...
Page 43

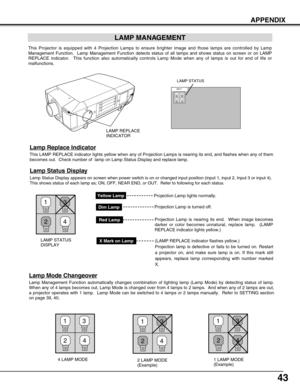

![Page 43
43
APPENDIX
LAMP MANAGEMENT
This Projector is equipped with 4 Projection Lamps to ensure brighter im\
age and those lamps are controlled by Lamp
Management Function. Lamp Management Function detects status of all lam\
ps and shows status on screen or on LAMP
REPLACE indicator. This function also automatically controls Lamp Mode \
when any of lamps is out for end of life or
malfunctions.
Projection Lamp lights normally.
Lamp Replace Indicator
This LAMP REPLACE indicator lights yellow when any of...](http://img.usermanuals.tech/thumb/1702/89488/w300_eiki-lc-xt9-manual_d-42.png "Page 43
43
APPENDIX
LAMP MANAGEMENT
This Projector is equipped with 4 Projection Lamps to ensure brighter im\
age and those lamps are controlled by Lamp
Management Function. Lamp Management Function detects status of all lam\
ps and shows status on screen or on LAMP
REPLACE indicator. This function also automatically controls Lamp Mode \
when any of lamps is out for end of life or
malfunctions.
Projection Lamp lights normally.
Lamp Replace Indicator
This LAMP REPLACE indicator lights yellow when any of...")
43 APPENDIX LAMP MANAGEMENT This Projector is equipped with 4 Projection Lamps to ensure brighter im\ age and those lamps are controlled by Lamp Management Function. Lamp Management Function detects status of all lam\ ps and shows status on screen or on LAMP REPLACE indicator. This function also automatically controls Lamp Mode \ when any of lamps is out for end of life or malfunctions. Projection Lamp lights normally. Lamp Replace Indicator This LAMP REPLACE indicator lights yellow when any of...
Page 44

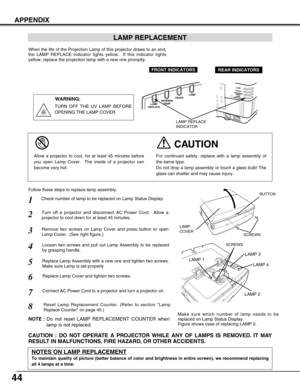

44 APPENDIX Check number of lamp to be replaced on Lamp Status Display. Remove two screws on Lamp Cover and press button to open Lamp Cover. (See right figure.) 1 3 Loosen two screws and pull out Lamp Assembly to be replaced by grasping handle.4 Turn off a projector and disconnect AC Power Cord. Allow a projector to cool down for at least 45 minutes.2 Replace Lamp Assembly with a new one and tighten two screws. Make sure Lamp is set properly 6 Follow these steps to replace lamp assembly. Replace Lamp...
Page 45

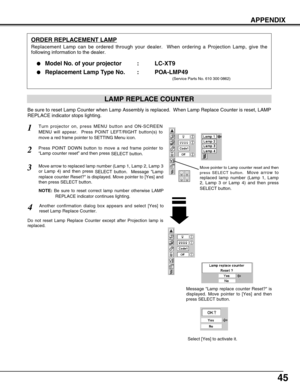

![Page 45
45
APPENDIX
ORDER REPLACEMENT LAMP
Replacement Lamp can be ordered through your dealer. When ordering a Pr\
ojection Lamp, give the
following information to the dealer.●
Model No. of your projector : LC-XT9
●Replacement Lamp Type No. : POA-LMP49
(Service Parts No. 610 300 0862)
Move pointer to Lamp counter reset and then
press SELECT button.
Move arrow to
replaced lamp number (Lamp 1, Lamp
2, Lamp 3 or Lamp 4) and then press
SELECT button.
Be sure to reset Lamp Counter when Lamp Assembly is...](http://img.usermanuals.tech/thumb/1702/89488/w300_eiki-lc-xt9-manual_d-44.png "Page 45
45
APPENDIX
ORDER REPLACEMENT LAMP
Replacement Lamp can be ordered through your dealer. When ordering a Pr\
ojection Lamp, give the
following information to the dealer.●
Model No. of your projector : LC-XT9
●Replacement Lamp Type No. : POA-LMP49
(Service Parts No. 610 300 0862)
Move pointer to Lamp counter reset and then
press SELECT button.
Move arrow to
replaced lamp number (Lamp 1, Lamp
2, Lamp 3 or Lamp 4) and then press
SELECT button.
Be sure to reset Lamp Counter when Lamp Assembly is...")
45 APPENDIX ORDER REPLACEMENT LAMP Replacement Lamp can be ordered through your dealer. When ordering a Pr\ ojection Lamp, give the following information to the dealer.● Model No. of your projector : LC-XT9 ●Replacement Lamp Type No. : POA-LMP49 (Service Parts No. 610 300 0862) Move pointer to Lamp counter reset and then press SELECT button. Move arrow to replaced lamp number (Lamp 1, Lamp 2, Lamp 3 or Lamp 4) and then press SELECT button. Be sure to reset Lamp Counter when Lamp Assembly is...
Page 46
![Page 46

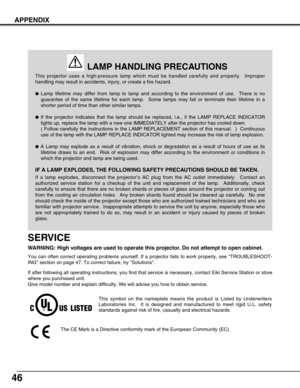

46
APPENDIX
This projector uses a high-pressure lamp which must be handled carefully\
and properly. Improper
handling may result in accidents, injury, or create a fire hazard.
●Lamp lifetime may differ from lamp to lamp and according to the environm\
ent of use. There is no
guarantee of the same lifetime for each lamp. Some lamps may fail or te\
rminate their lifetime in a
shorter period of time than other similar lamps.
●If the projector indicates that the lamp should be replaced, i.e., if th\
e...](http://img.usermanuals.tech/thumb/1702/89488/w300_eiki-lc-xt9-manual_d-45.png "Page 46
46
APPENDIX
This projector uses a high-pressure lamp which must be handled carefully\
and properly. Improper
handling may result in accidents, injury, or create a fire hazard.
●Lamp lifetime may differ from lamp to lamp and according to the environm\
ent of use. There is no
guarantee of the same lifetime for each lamp. Some lamps may fail or te\
rminate their lifetime in a
shorter period of time than other similar lamps.
●If the projector indicates that the lamp should be replaced, i.e., if th\
e...")
46 APPENDIX This projector uses a high-pressure lamp which must be handled carefully\ and properly. Improper handling may result in accidents, injury, or create a fire hazard. ●Lamp lifetime may differ from lamp to lamp and according to the environm\ ent of use. There is no guarantee of the same lifetime for each lamp. Some lamps may fail or te\ rminate their lifetime in a shorter period of time than other similar lamps. ●If the projector indicates that the lamp should be replaced, i.e., if th\ e...
Page 47
![Page 47

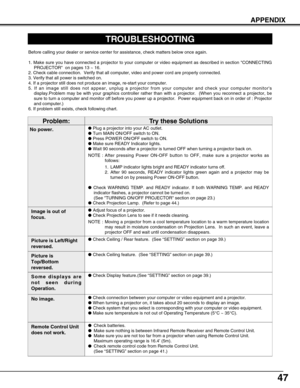

47
APPENDIX
TROUBLESHOOTING
Before calling your dealer or service center for assistance, check matte\
rs below once again.
1. Make sure you have connected a projector to your computer or video eq\
uipment as described in section CONNECTINGPROJECTOR on pages 13 ~ 16.
2. Check cable connection. Verify that all computer, video and power co\
rd are properly connected.
3. Verify that all power is switched on.
4. If a projector still does not produce an image, re-start your compute\
r.
5. If an image still...](http://img.usermanuals.tech/thumb/1702/89488/w300_eiki-lc-xt9-manual_d-46.png "Page 47
47
APPENDIX
TROUBLESHOOTING
Before calling your dealer or service center for assistance, check matte\
rs below once again.
1. Make sure you have connected a projector to your computer or video eq\
uipment as described in section CONNECTINGPROJECTOR on pages 13 ~ 16.
2. Check cable connection. Verify that all computer, video and power co\
rd are properly connected.
3. Verify that all power is switched on.
4. If a projector still does not produce an image, re-start your compute\
r.
5. If an image still...")
47 APPENDIX TROUBLESHOOTING Before calling your dealer or service center for assistance, check matte\ rs below once again. 1. Make sure you have connected a projector to your computer or video eq\ uipment as described in section CONNECTINGPROJECTOR on pages 13 ~ 16. 2. Check cable connection. Verify that all computer, video and power co\ rd are properly connected. 3. Verify that all power is switched on. 4. If a projector still does not produce an image, re-start your compute\ r. 5. If an image still...
Page 48

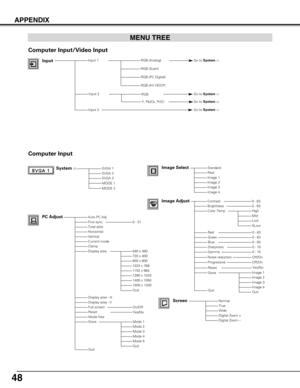

48 APPENDIX System (1)SVGA 1SVGA 2SVGA 3 Auto PC Adj.Fine sync.Total dotsHorizontalVerticalCurrent modeClampDisplay area Display area - HDisplay area - VFull screenResetMode freeStore Quit StandardRealImage 1Image 2Image 3Image 4 Image AdjustContrastBrightnessColor Temp RedGreenBlue Gamma Store Quit NormalTrueWideDigital Zoom +Digital Zoom – 0 - 31 On/Off 0 - 630 - 63 InputRGB (Analog) RGB (Scart) Go to System(1) Input 2 Y, Pb/Cb, Pr/Cr Computer Input Input 3 Input 1 PC Adjust 640 x 480720 x 400800 x...
Page 49

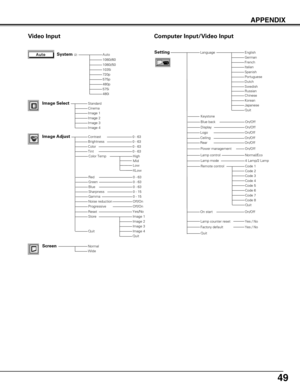

49 APPENDIX Video Input Auto 1080i/501035i720p575p480p575i480i StandardCinemaImage 1Image 2Image 3Image 4 Quit 0 - 630 - 630 - 630 - 63 Off/On Language Image Select System (2) Image AdjustContrastBrightnessColorTint RedGreenBlueSharpness ResetStore Gamma Progressive 0 - 630 - 630 - 630 - 150 - 15 Image 1Image 2Image 3Image 4 Screen SettingEnglishGermanFrenchItalianSpanishPortugueseDutchSwedish ChineseKoreanJapanese On/Off On/Off On/Off On/OffOn/Off On/Off On/Off 4 Lamp/2 Lamp Code 1 Yes / No Keystone...
